Removal and Installation

SPARK PLUGS







Exploded Views

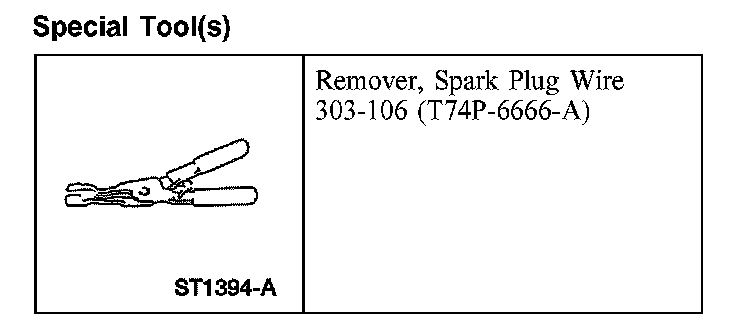

Remover, Spark Plug Wire:

Special Tool(s)

Removal and Installation

CAUTION:
- Spark plug wires must be connected in the correct firing order.
- It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.







1. Using the special tool, with a twisting motion pull the spark plug wire off the spark plug.

2. NOTE:
- Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
- If an original spark plug is reused, make sure it is installed in the same cylinder from which it was taken. New spark plugs can be used in any cylinder.

Remove the spark plug.
- To install, tighten to 15 Nm (11 lb-ft).

3. Inspect the spark plug firing tip.

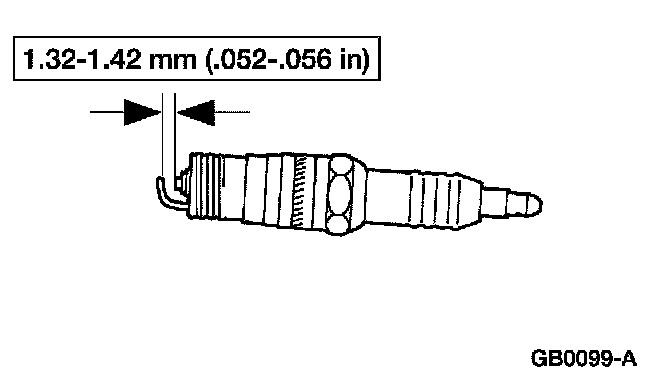

4. Adjust the spark plug gap as necessary.

5. NOTE: Apply silicone brake caliper grease and dielectric compound to the inside of the spark plug wire boots.

To install, reverse the removal procedure.
