Air Bag Control Module: Locations

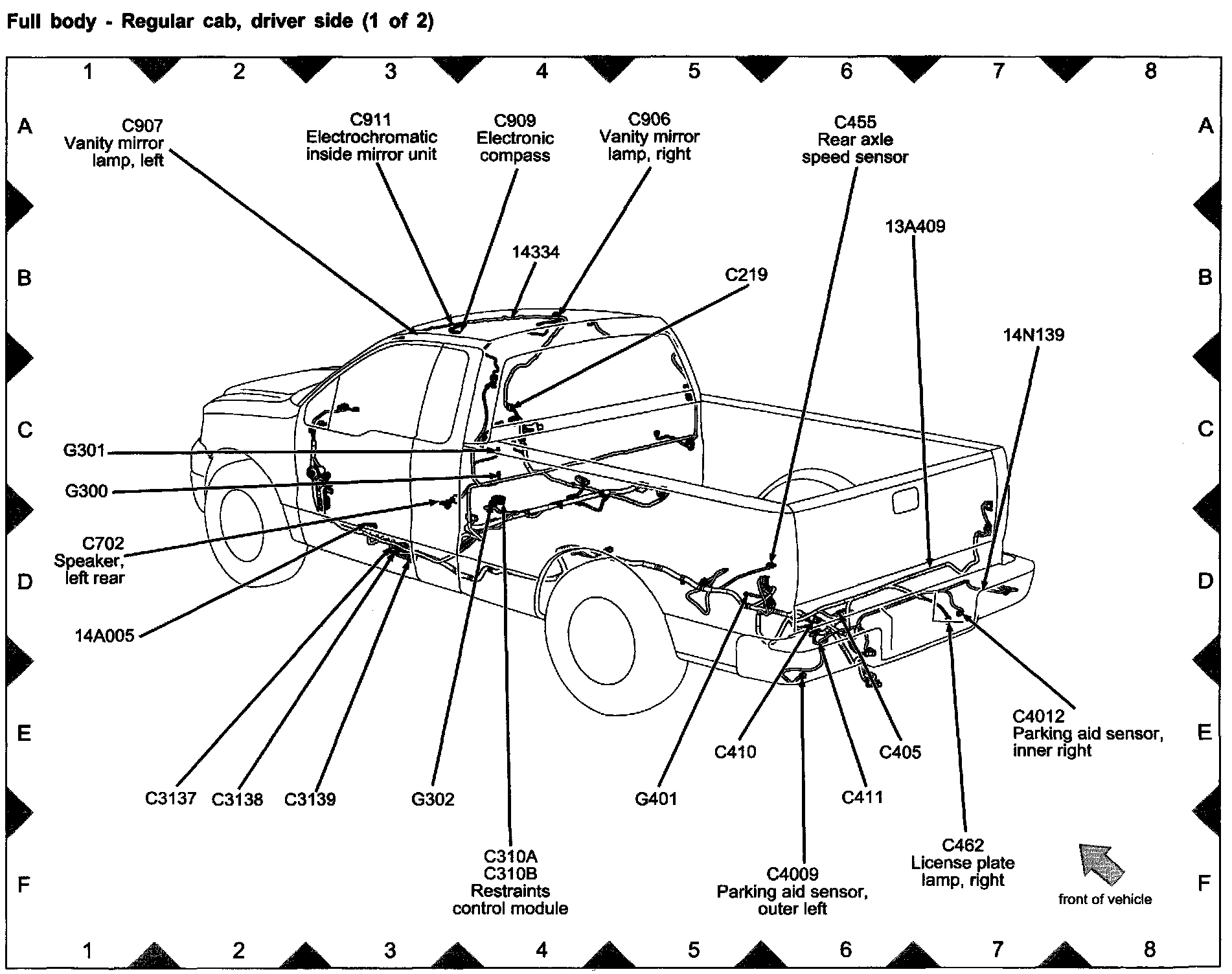

View 151-18 (Full Body - Regular Cab, Driver Side (1 Of 2)):

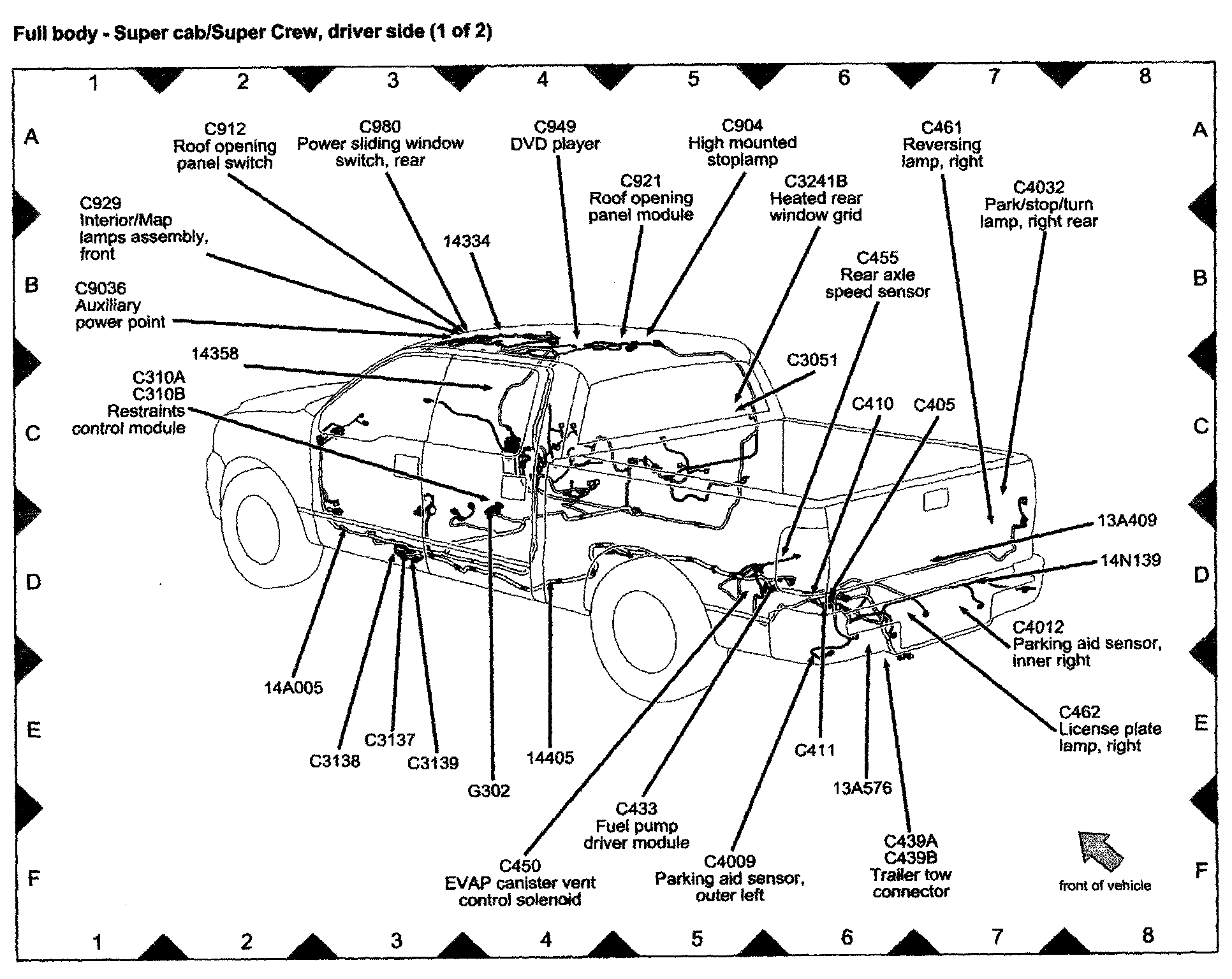

View 151-22 (Full Body - Super Cab/Super Crew, Driver Side (1 Of 2)):
