System Specifications

Crankshaft Pulley Bolt 160 Nm (118 ft.lbs)

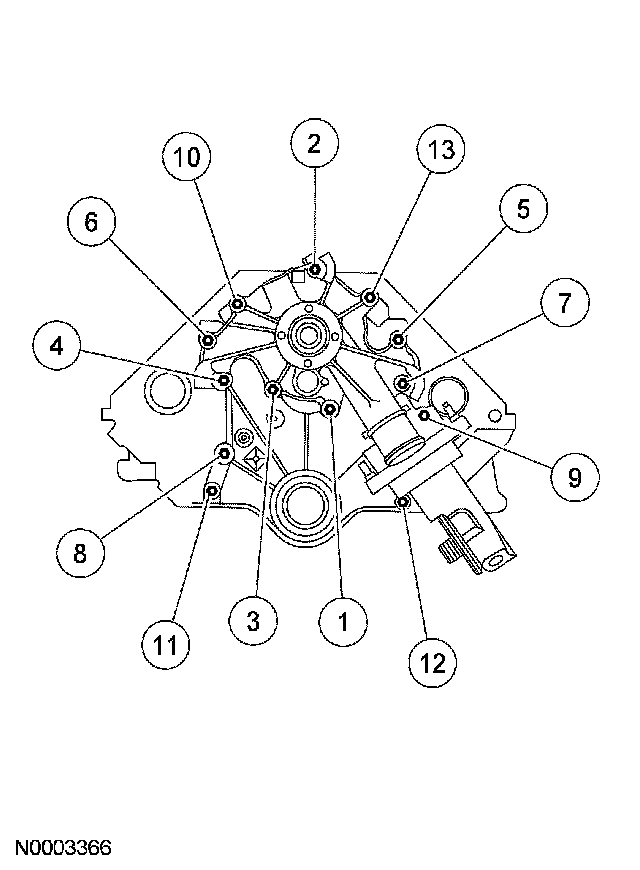

Engine front cover and coolant pump:

Position the engine front cover and install the bolt, the stud bolts and the cap screw finger tight.
Position a new coolant pump gasket and the coolant pump and install the fasteners finger tight.
Tighten the cap screw in position number 12 to 10 Nm (89 inch lbs.)
Tighten all other fasteners 28 Nm (21 ft. lbs.)
