Alternator: Service and Repair

GENERATOR







Removal and Installation

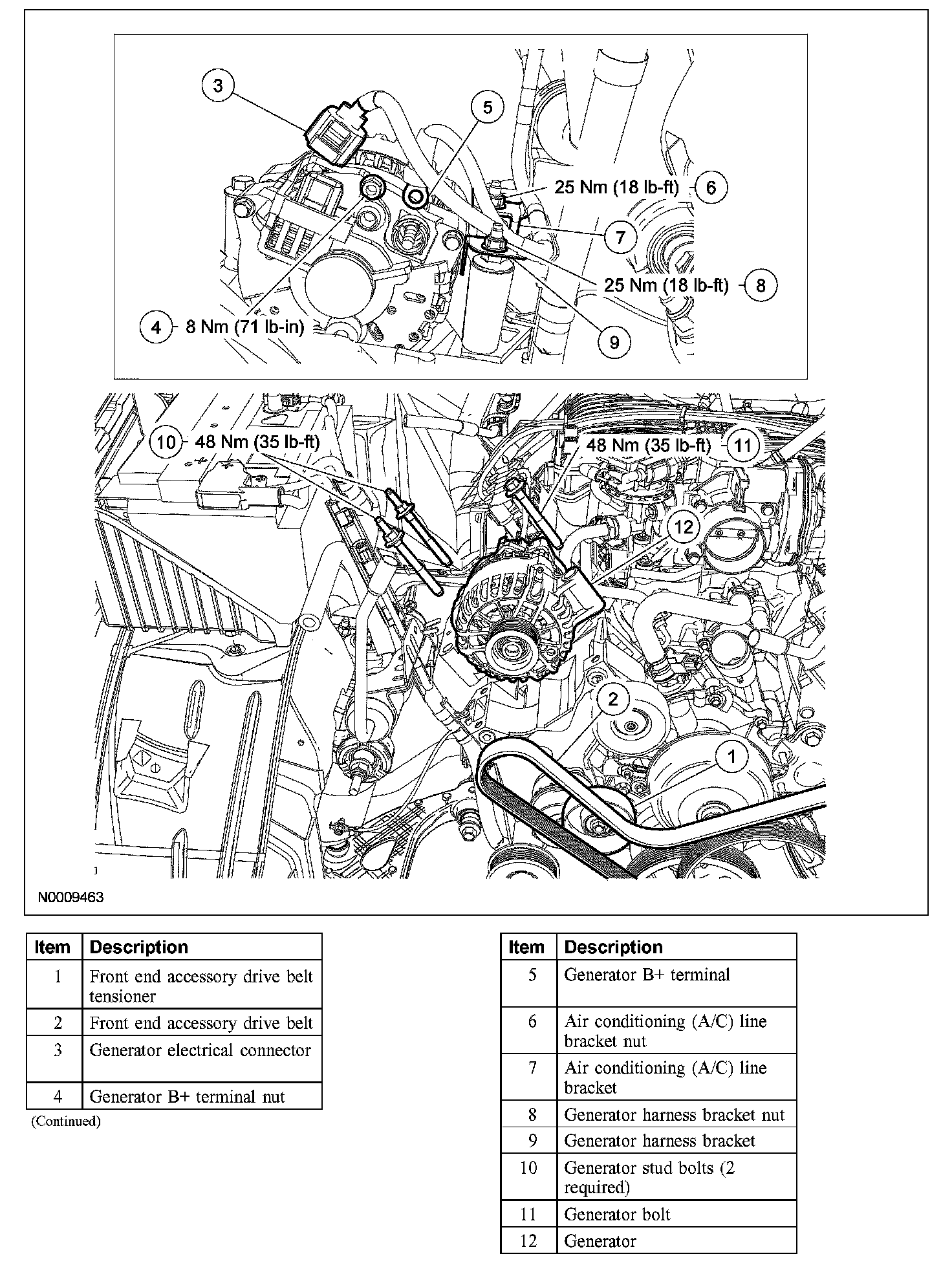

1. Disconnect the battery.
2. Rotate the front end accessory drive belt tensioner counterclockwise and position the front end accessory drive belt aside.
3. Disconnect the generator electrical connector.
4. Position the generator B+ protective boot aside and remove the nut and disconnect the generator B+ terminal.
- To install, tighten to 8 Nm (71 lb-in).

5. Remove the nut and position the A/C line bracket aside.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the nut and position the generator harness bracket aside.
- To install, tighten to 25 Nm (18 lb-ft).

7. Remove the 2 generator stud bolts.
- To install, tighten to 48 Nm (35 lb-ft).

8. Remove the bolt and the generator.
- To install, tighten to 48 Nm (35 lb-ft).

9. To install, reverse the removal procedure.
