Roof Opening Panel Shield
ROOF OPENING PANEL SHIELDRemoval and Installation
NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel, including: whenever the roof opening panel motor has been removed from the roof opening panel assembly, a new roof opening panel motor has been installed or when a new roof opening panel frame has been installed.
1. Remove the roof opening panel glass.
2. Slide the roof opening panel shield halfway forward.

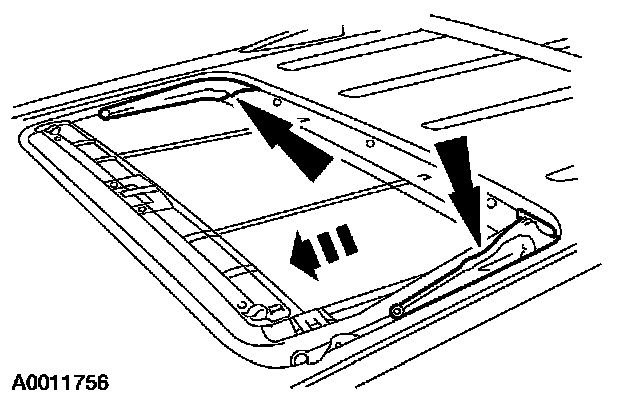

3. Disengage the roof opening panel shield guide feet.
1 Push the roof opening panel shield toward one side of the vehicle.
2 Lift the front portion of the roof opening panel shield upward to disengage the guide feet.
4. Slide the roof opening panel shield forward and release the rear guide feet.
5. To install, reverse the removal procedure.
6. Initialize the roof opening panel motor.
