Trailer Tow Battery Charge Relay C2110
Trailer Tow Battery Charge Relay C2110

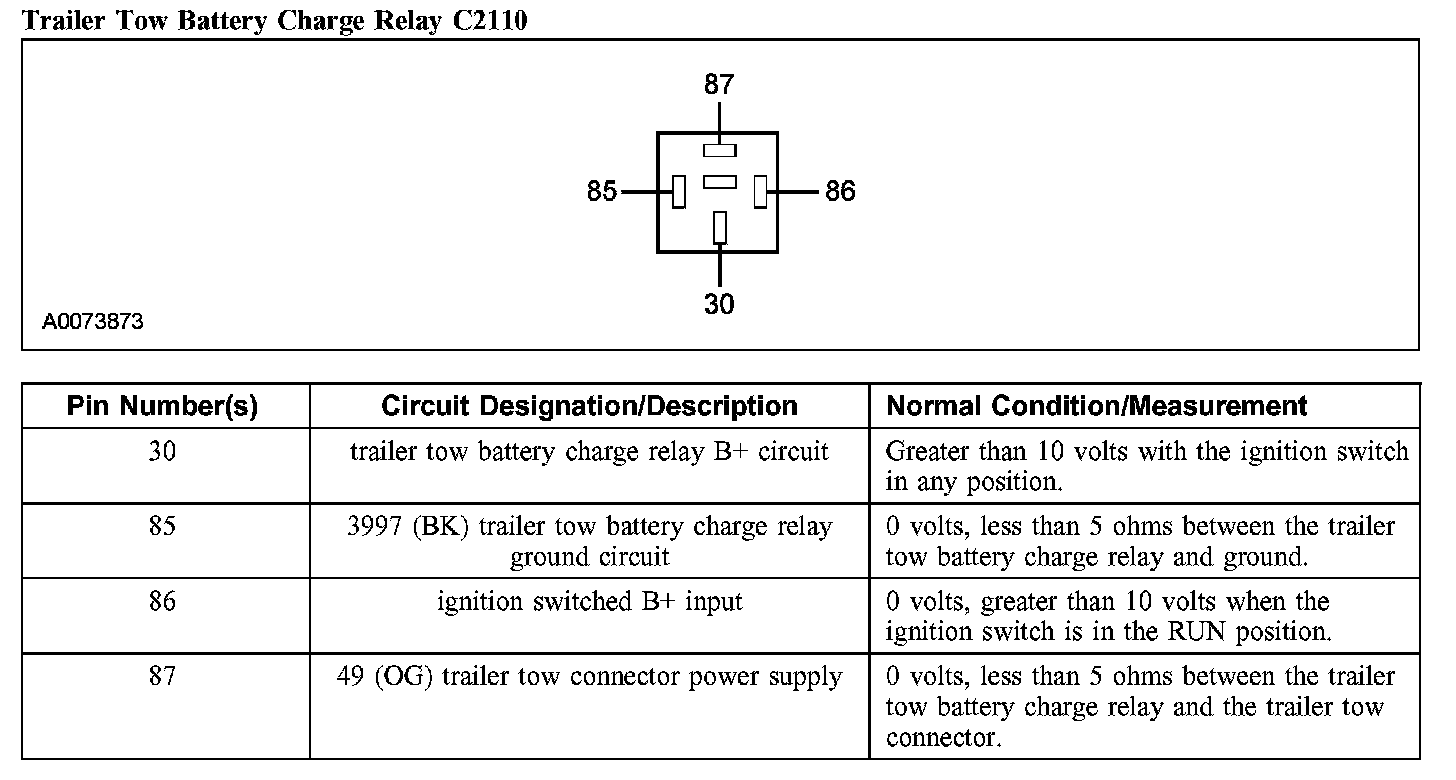

Trailer Tow Battery Charge Relay C2110:
