Differential Carrier

Differential Carrier





Special Tool(s)

Removal
1. Remove the axle shafts.

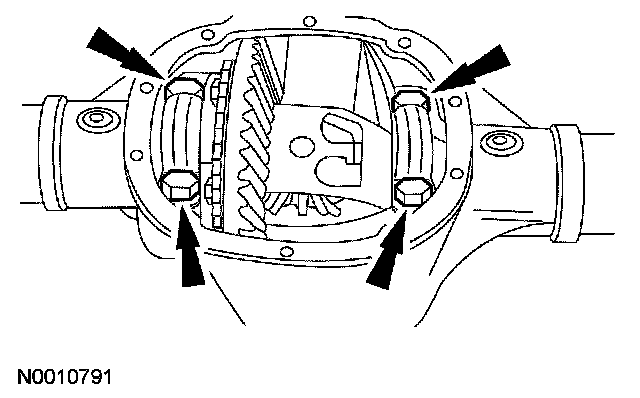

2. CAUTION: Index-mark the position of the differential bearing caps, as arrows may not be visible. The differential bearing caps must be installed in their original locations and positions.

Remove the differential bearing cap bolts and the differential bearing caps.





3. WARNING: Be careful not to allow the differential assembly to fall.

CAUTION: Place a wood block between the pry bar and the axle housing to protect the machined surface from damage.

CAUTION: Index-mark the position of the differential bearing shims. The differential bearing shims must be installed in their original locations and positions.

Using pry bars and wood blocks, remove the differential assembly from the axle housing.

Installation





1. Position the differential assembly in the axle housing.





2. Install the original removed differential bearing shims in their original positions.

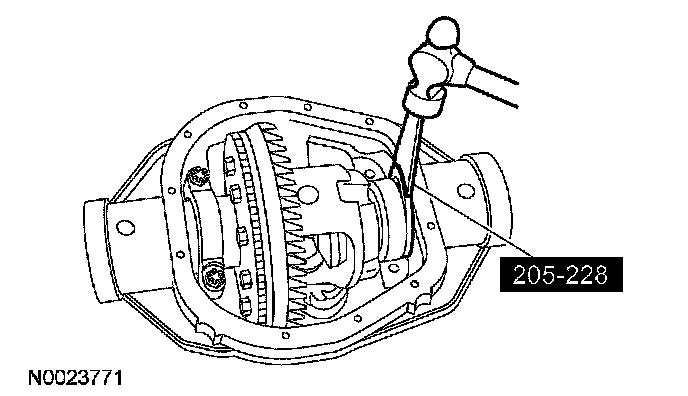

3. Using the special tool, fully seat the differential bearing shims.





4. Install the differential bearing caps and the differential bearing cap bolts.
^ Tighten to 105 Nm (77 ft. lbs.).





5. Rotate the differential assembly to make sure it rotates freely.
6. Measure the ring and pinion backlash.
7. Install the axle shafts.
