Home
>>
Ford
>>
2005
>>
F 150 4WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>

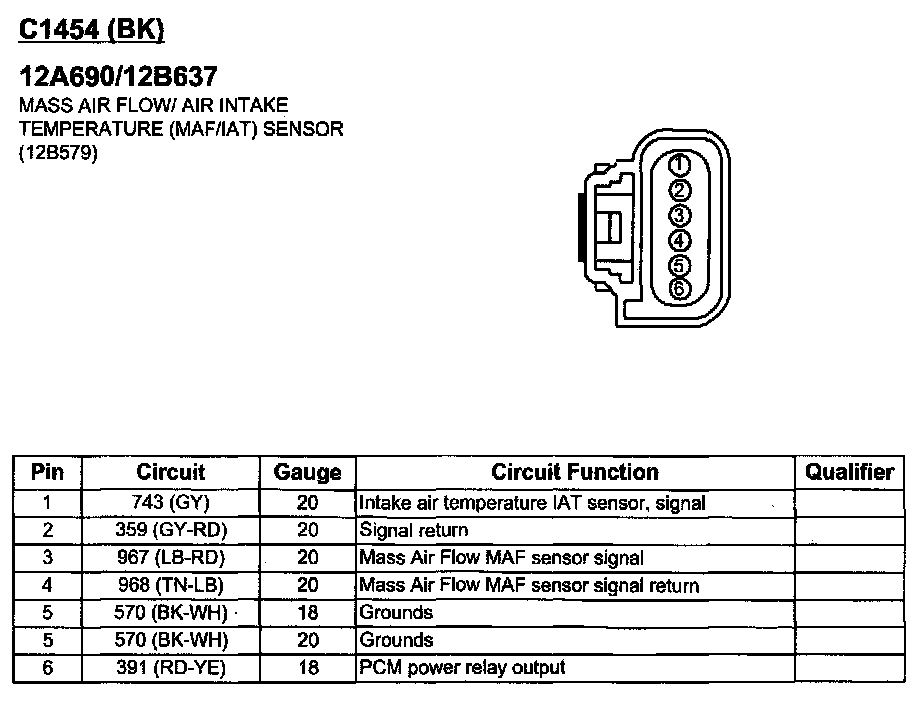

Mass Air Flow/Air Intake Temperature (MAF/IAT) Sensor
Mass Air Flow/Air Intake Temperature (MAF/IAT) Sensor
