Home >> Ford >> 2005 >> F 150 4WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Driver Rear Window Control Switch C701

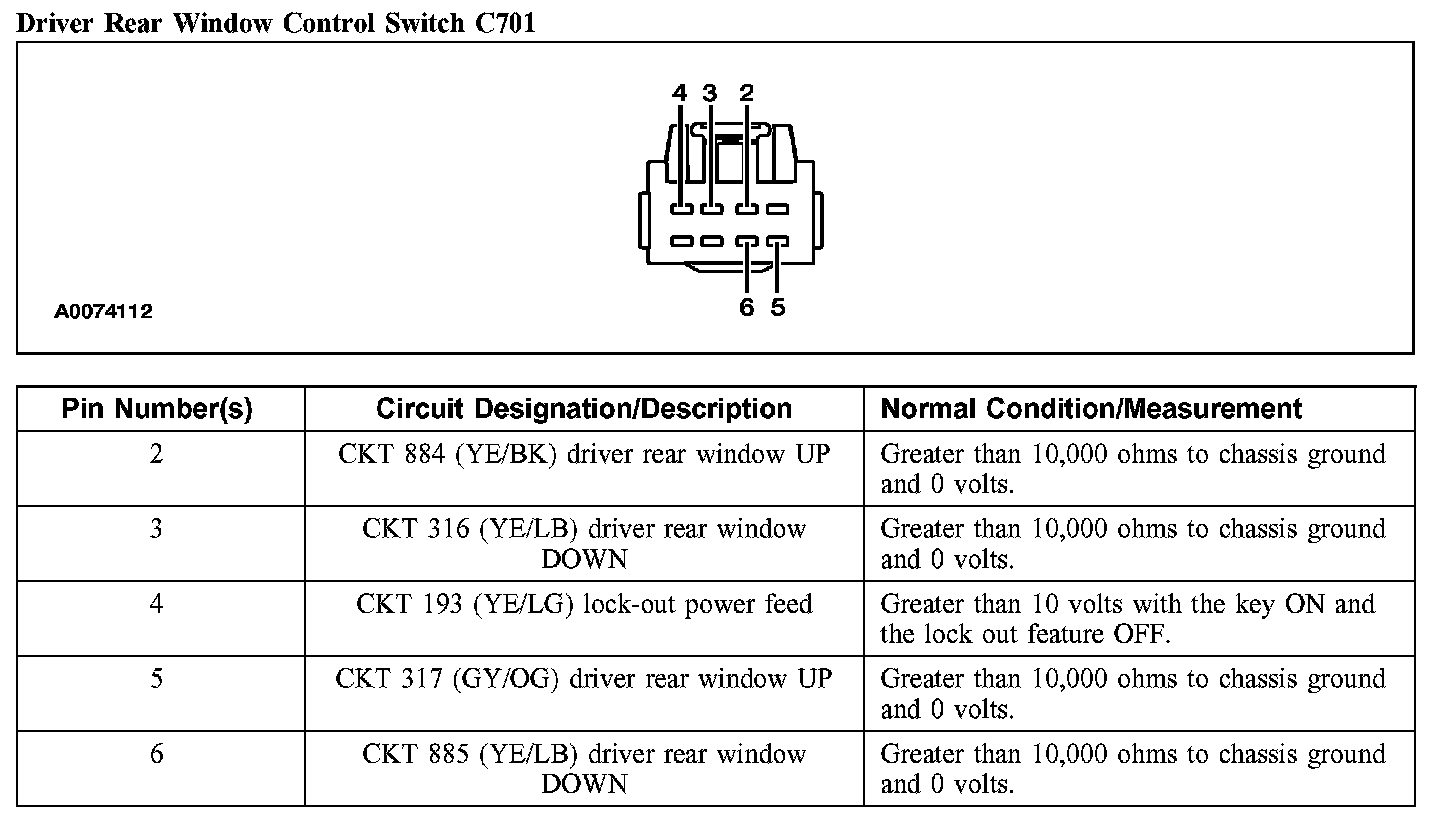

Driver Rear Window Control Switch C701

Driver Rear Window Control Switch C701:
