Brake Bleeding: Service and Repair
Brake System Bleeding
Special Tool(s)
Material
Master Cylinder, Bench
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. ever reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
1. Support the brake master cylinder body in a vise and fill the brake master cylinder reservoir with specified brake fluid.
2. NOTE: Original equipment lines are not intended to be used during this procedure.
Install short brake tubes with the ends submerged in the brake master cylinder reservoir.
3. Slowly press the primary piston until clear fluid flows from both brake tubes, without air bubbles.
4. Remove the short brake tubes and plug the brake tube ports.
Master Cylinder - In Vehicle
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. ever reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
1. NOTE: When a new brake master cylinder has been installed or the system has been emptied, or partially emptied, it should be primed to prevent air from getting into the system.
Disconnect the brake master cylinder outlet tubes.
2. NOTE: Original equipment lines are not intended to be used during this procedure.
Install short brake tubes with the ends submerged into the brake master cylinder reservoir and fill the brake master cylinder reservoir with brake fluid.
3. Have an assistant pump the brake pedal until clear fluid flows from both brake tubes, without air bubbles.
4. Remove the short brake tubes and install the brake outlet tubes.
5. Bleed each brake tube at the brake master cylinder as follows:
1. Have an assistant pump the brake pedal and hen hold firm pressure on the brake pedal.
2. Loosen the rear brake tube fittings until a stream of brake fluid comes out. Have an assistant maintain pressure on the brake pedal while tightening the brake tube fitting.
3. Repeat this operation until clear, bubble-free fluid comes out.
4. Refill the brake master cylinder reservoir as necessary. Repeat the bleeding operation for the front brake tube.
6. While the assistant maintains pressure on the brake pedal, tighten the brake line fittings.
Gravity Bleeding
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. ever reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
NOTE: When a new brake master cylinder has been installed or the system has been emptied, or partially emptied, it should be primed to prevent air from getting into the system.
1. Fill the brake master cylinder reservoir with brake fluid.

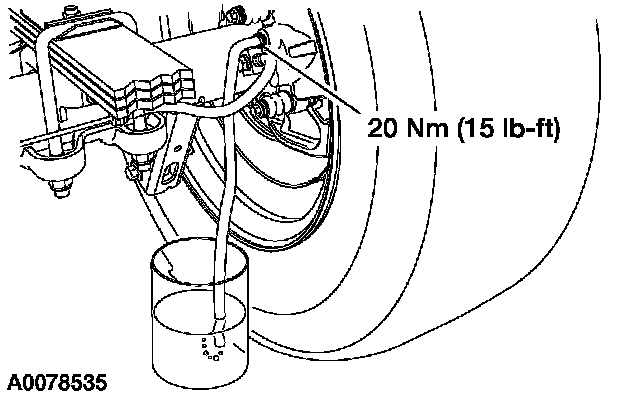

2. Connect a clear tube to the RH rear disc brake caliper bleeder screw and place the other end into a container partially filled with recommended brake fluid.
3. Open the bleeder screw and leave it open until clear bubble-free brake fluid flows.
^ Refill the brake master cylinder reservoir as necessary.
4. Tighten the disc brake caliper bleeder screw.
5. Repeat Steps I through 4 for the 3 remaining brake calipers, going in order from the LH rear disc brake caliper to the RH front disc brake caliper, and ending with the LH front disc brake caliper.
6. If the brake pedal feels spongy, repeat the bleed procedure.
Manual Bleeding
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. ever reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
1. Fill the brake master cylinder reservoir with brake fluid.
2. Connect a clear tube to the RH rear disc brake caliper bleeder screw and place the other end into a container partially filled with recommended brake fluid.
3. Have an assistant pump the brake pedal and hen hold firm pressure on the brake pedal.
4. Loosen the disc brake caliper bleeder screw until a stream of brake fluid comes out. Have an assistant maintain pressure on the brake pedal while tightening the disc brake caliper bleeder screw.
^ Repeat until clear, bubble-free fluid comes out.
^ Refill the brake master cylinder reservoir as necessary.
5. Tighten the disc brake caliper bleeder screw.
6. Repeat Steps 1 through 5 for the 3 remaining brake calipers, going in order from the LH rear disc brake caliper to the RH front disc brake caliper ending with the LH front disc brake caliper.
7. If the brake pedal feels spongy, repeat the bleed procedure.
Anti-Lock Brake System (ABS) Hydraulic Control Unit Bleeding
NOTE: This procedure is only required when a new hydraulic control unit is installed.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
1. Connect the diagnostic tool and follow the ABS system bleed instructions.
2. Use the gravity bleed or manual bleed procedure(s) to bleed the system. Begin at the RH rear caliper.
