View 151-1 (Engine Compartment)

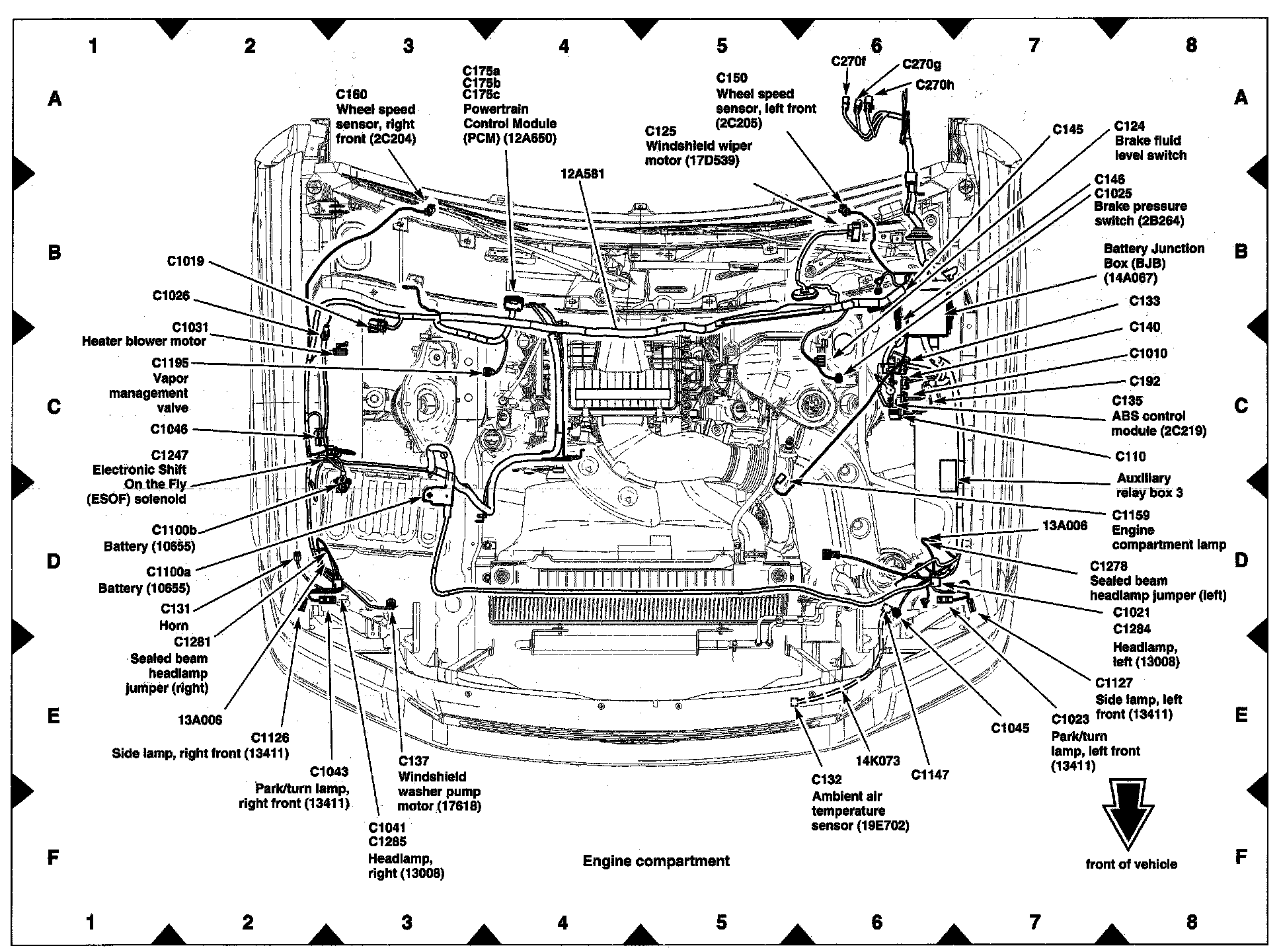

View 151-1 (Engine Compartment):



View 151-3 (Engine Compartment):
