Test H: Seat Does Not Heat But the Heated Seat Indicator Illuminates When Pressed
Test H: Seat Does Not Heat But the Heated Seat Indicator Illuminates When Pressed
PINPOINT TEST H: SEAT DOES NOT HEAT BUT THE HEATED SEAT INDICATOR ILLUMINATES WHEN PRESSED
H1:
H1-H3:
H3-H4:

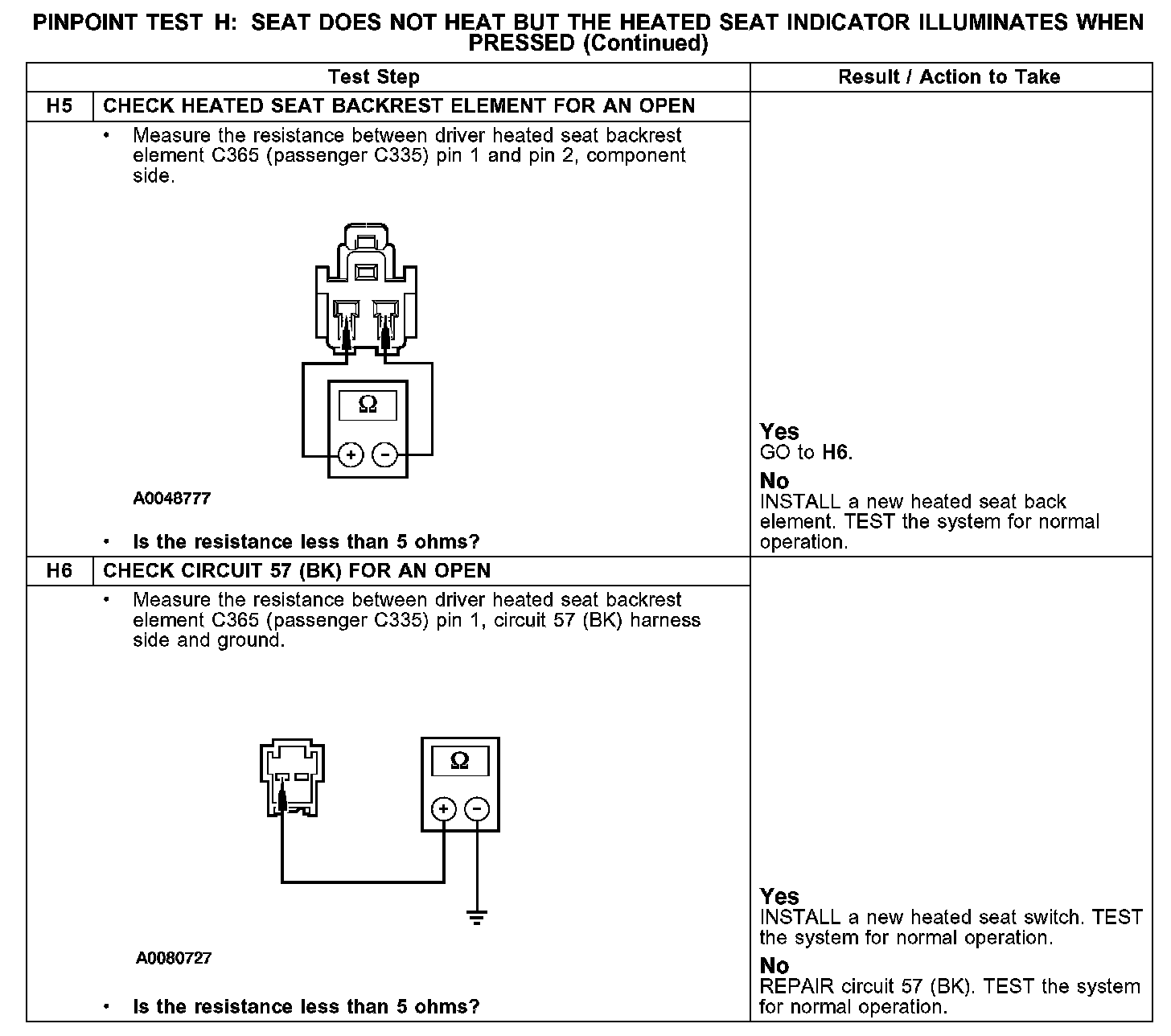

H5-H6:
