E: C1222-Wheel Speed Mismatch, C1233 (LF), C1234 (RF), C1236 (Rear)-Wheel Speed Sensor Signal Fault

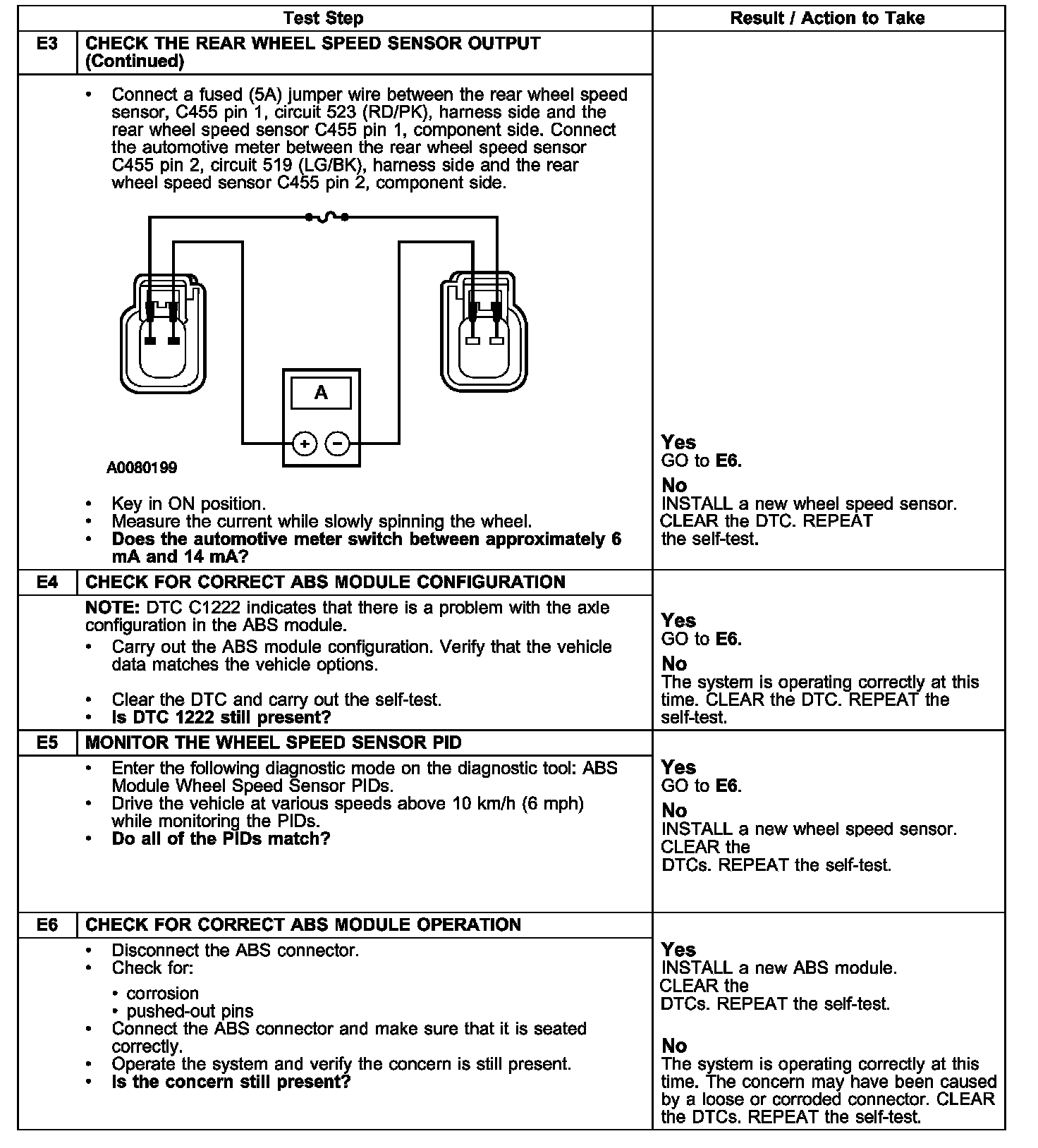

PINPOINT TEST E: DTC C1222-WHEEL SPEED MISMATCH, DTC's C1233 (LF), C1234 (RF), C1236 (REAR)-WHEEL SPEED SENSOR SIGNAL FAULTTest E1-E3:
Test E3-E6:
CAUTION: Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
