Test A: DTC B2266 - Blend Door Failure or Short

PINPOINT TEST A: DTC B2266 - BLEND DOOR FAILURE OR SHORT


A1:






A1-A3:






A3-A5:






A6-A8:






A9-A11:

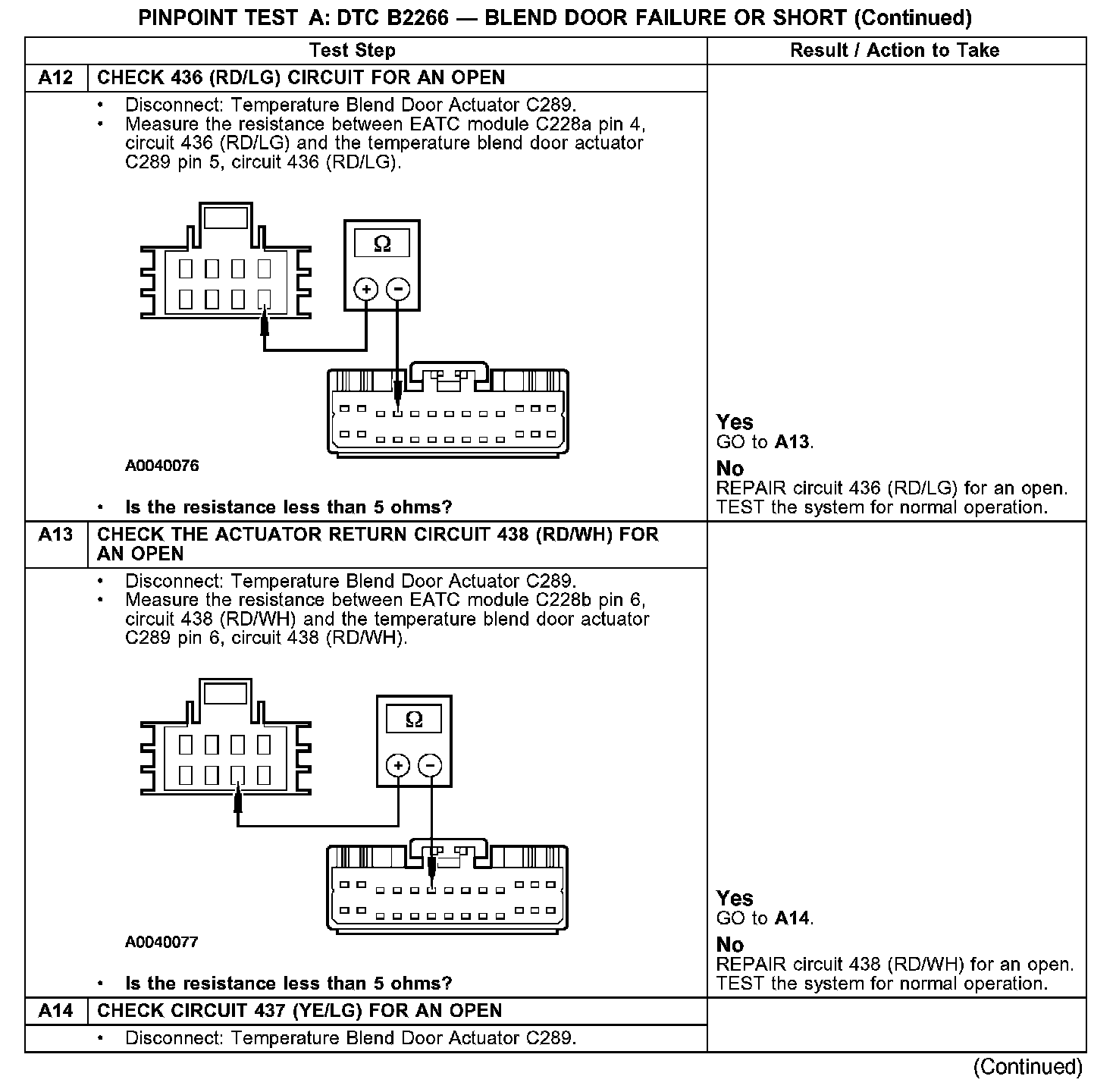

A12-A14:






A14-A16:






A17-A20:






A20-A22:
