Test K: The Brake Warning Indicator Is Never On
Test K: The Brake Warning Indicator Is Never On

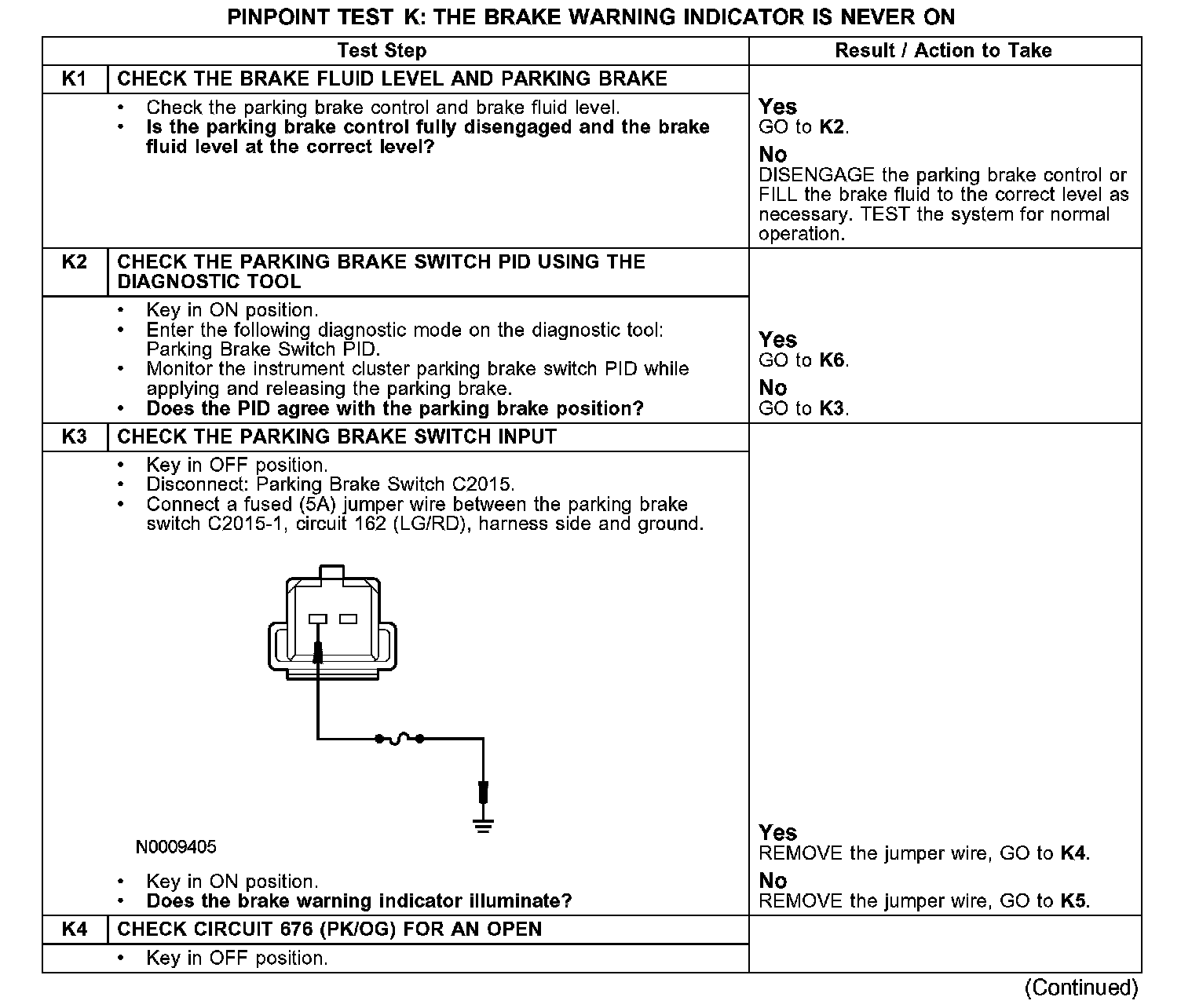

PINPOINT TEST K: THE
BRAKE WARNING INDICATOR
IS NEVER ON
K1-K4:
K4-K6:
K6-K9:
K10-K12:
