Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>
Seat Weight Sensor Module

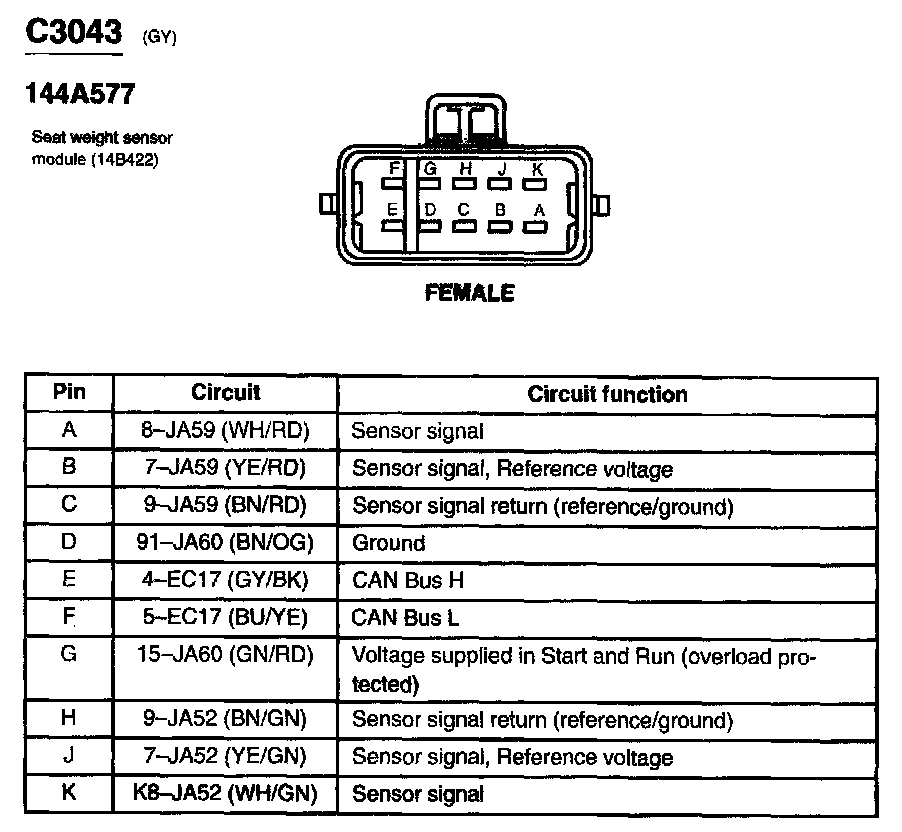

Seat Weight Sensor Module
