Internal Gear Stage and Final Drive Assembly

Internal Gear Stage and Final Drive Assembly

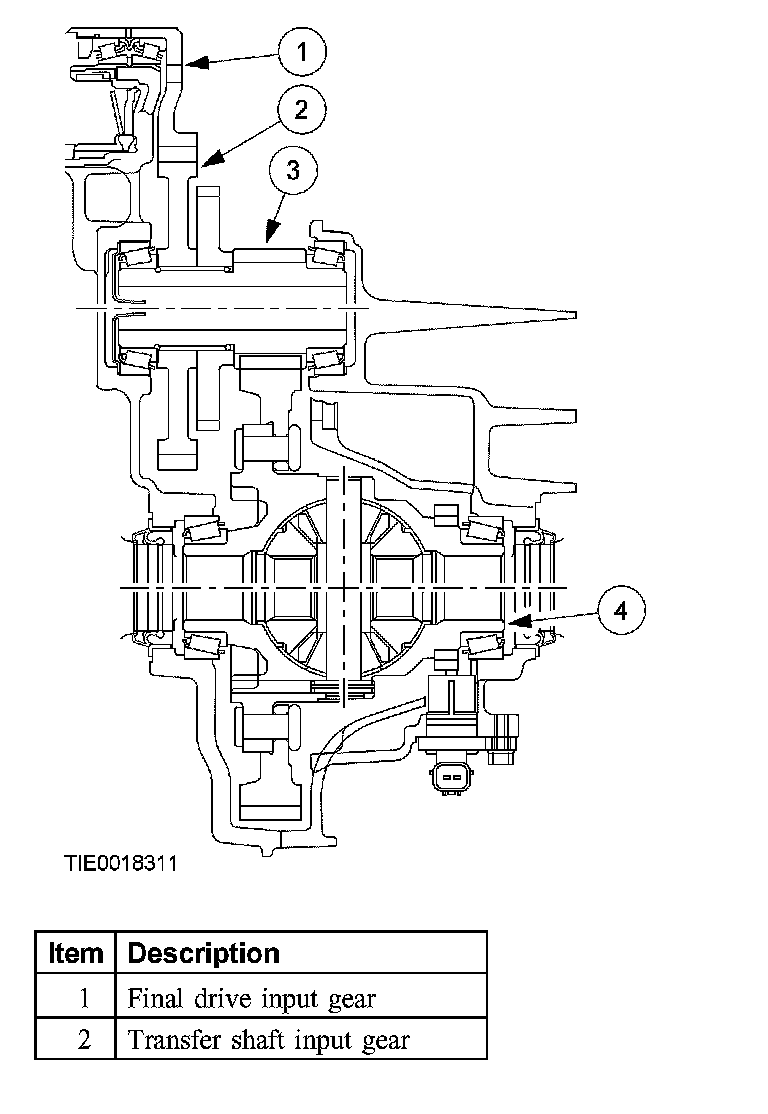

The final drive input gear is splined to the planet carrier of the front planetary gear set and drives the transfer shaft input gear of the intermediate gear stage.

The transfer shaft output gear of the intermediate gear stage drives the final drive assembly.

The torque is transmitted to the halfshafts through the final drive assembly.

The differential offsets differences in speed of rotation of the halfshafts.

The intermediate gear stage is designed so that the final drive ratio can be adapted to requirements when the automatic transaxle is used in conjunction with different engines.
