Forward Clutch

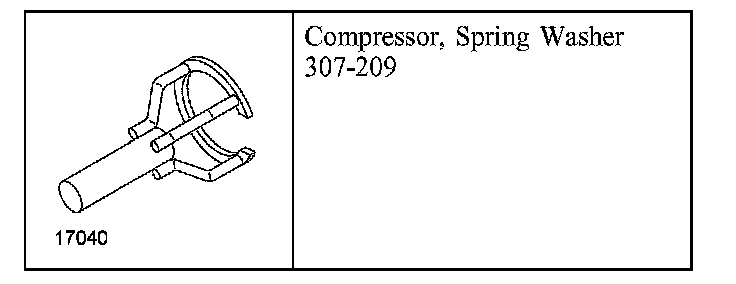

Special Tool(s)

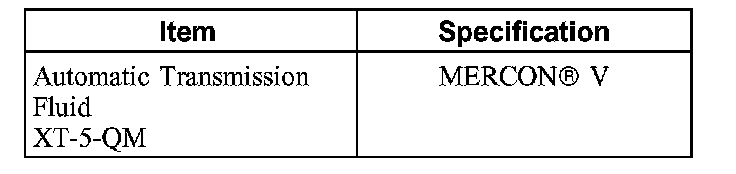

Material








Disassembly

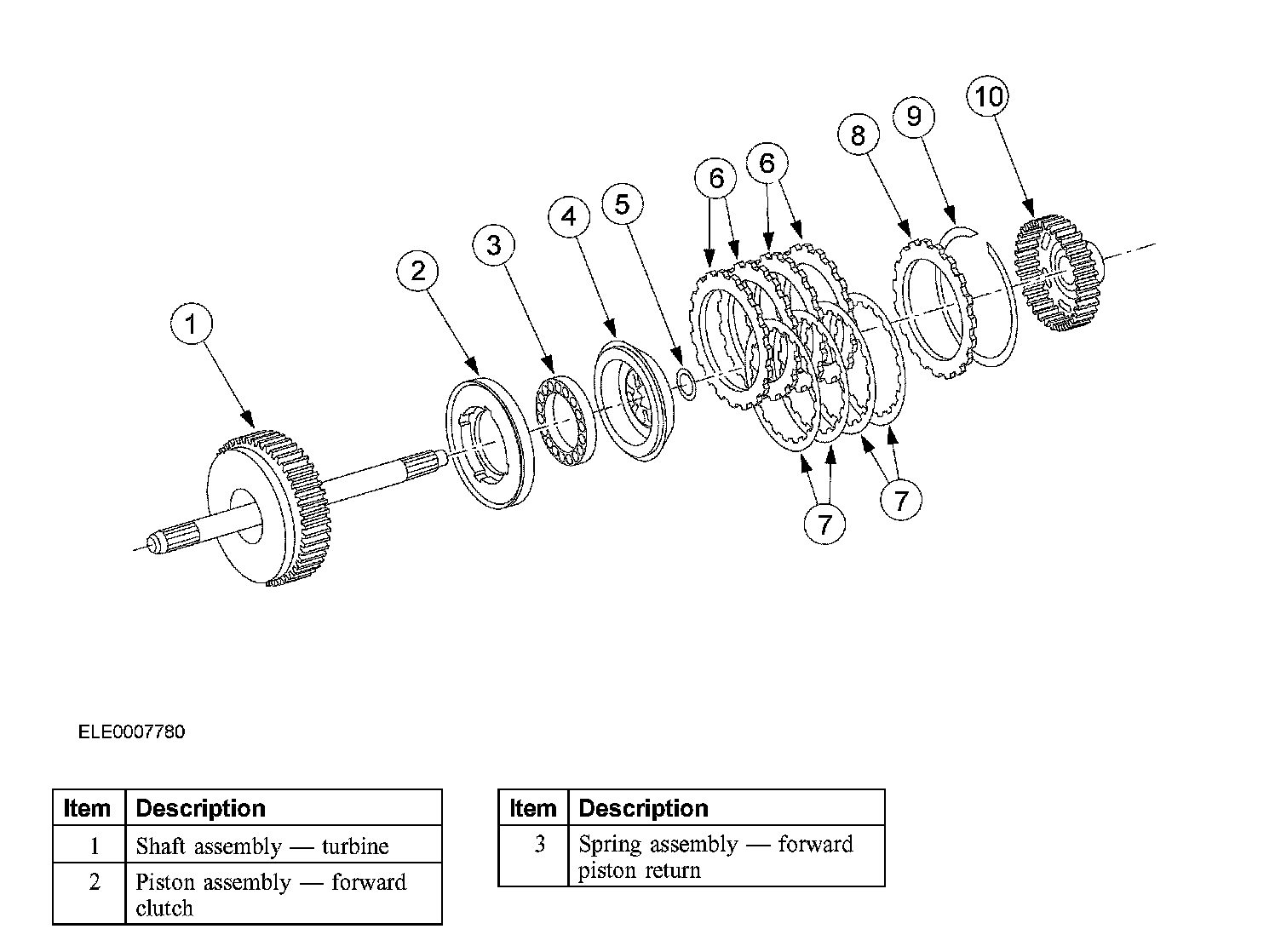

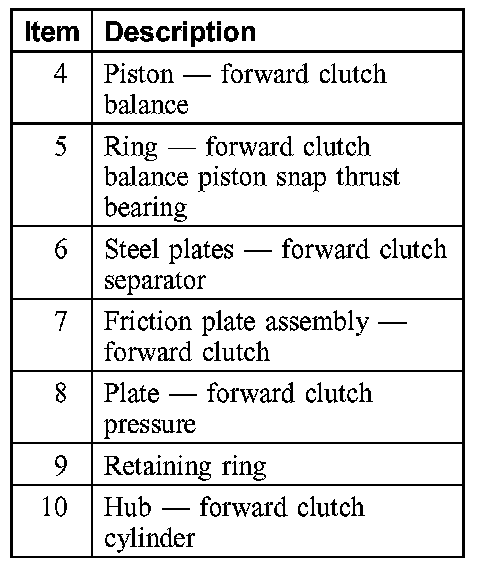

1. Remove the forward clutch pressure, friction and steel plates.

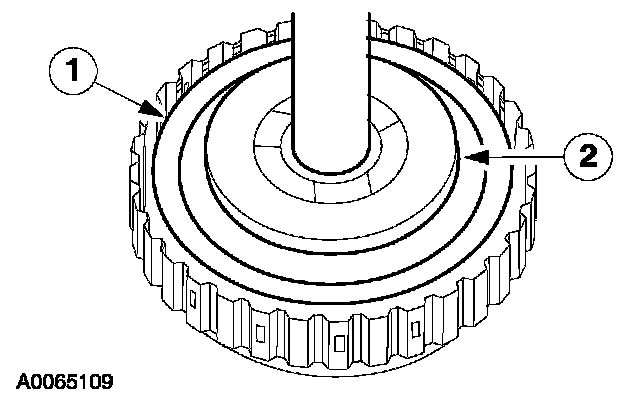

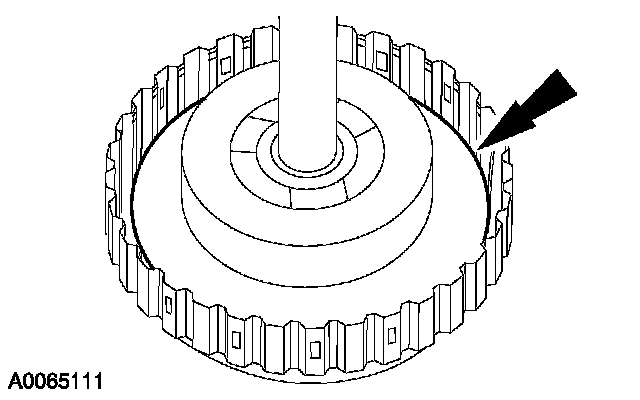

1. Remove the retaining ring.
2. Remove the plates.

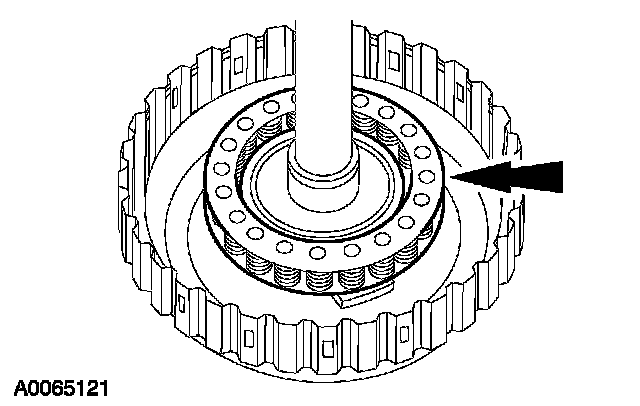

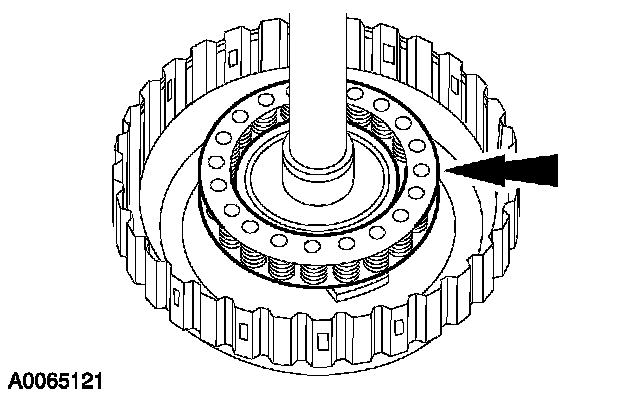

5. Remove the forward piston return spring.

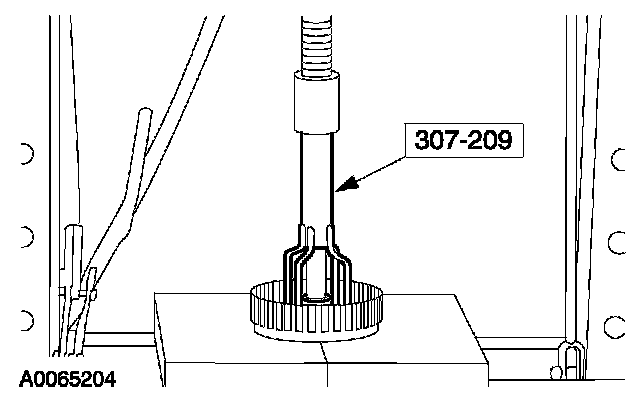

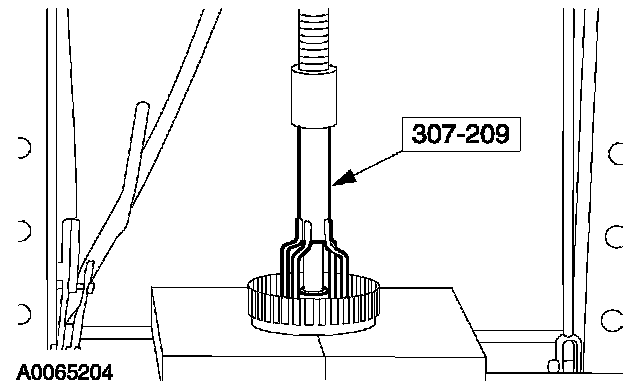

2. Using the special tool, install the forward clutch assembly in a suitable press.

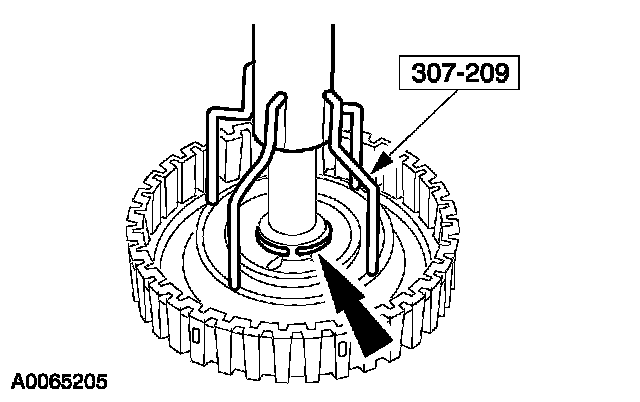

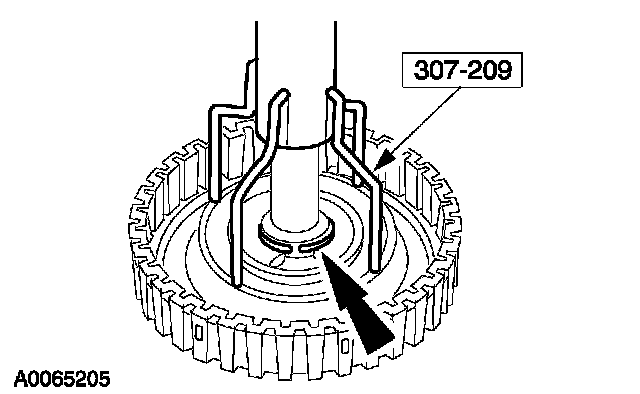

3. Using the special tool, remove the forward clutch balance piston snap ring.





4. CAUTION: If damage is found to the forward clutch balance piston seals, install a new balance piston.

Remove and inspect the forward clutch balance piston.





5. Remove the forward piston return spring.





6. CAUTION: If damage is found to the forward clutch piston seals, install a new forward clutch piston.

Remove the forward clutch piston assembly.

Assembly

1. Soak the internal spline clutch plates in clean automatic transmission fluid for 15 minutes before assembly.

2. Inspect the forward clutch piston bore surfaces for nicks or scratches. Install a new balance piston if necessary.





3. Lubricate and install the forward clutch piston assembly.





4. Install the forward piston return spring.





5. Lubricate and install the forward clutch balance piston.





6. Using the special tool, install the forward clutch assembly in a suitable press.





7. Using the special tool, install the forward clutch balance piston snap ring.





8. Install the forward clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
^ Measure the clearance.
