Front Bumper: Service and Repair

FRONT BUMPER

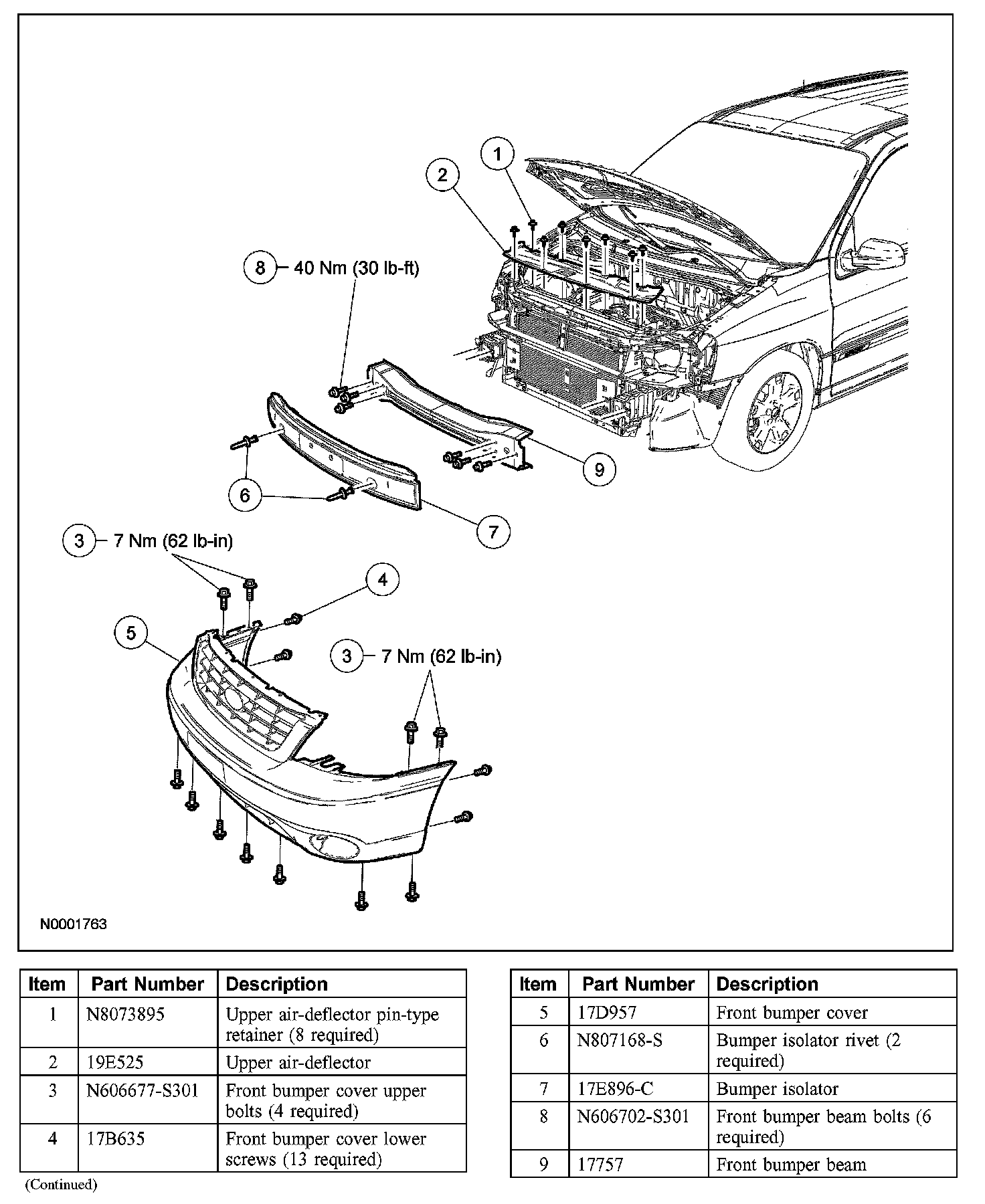

Exploded View

Removal and Installation
1. Remove the front bumper isolator.

2. NOTE:
- Left side shown, right side similar.
- The spot welds are used for manufacturing only. Do not spot weld again upon installation.

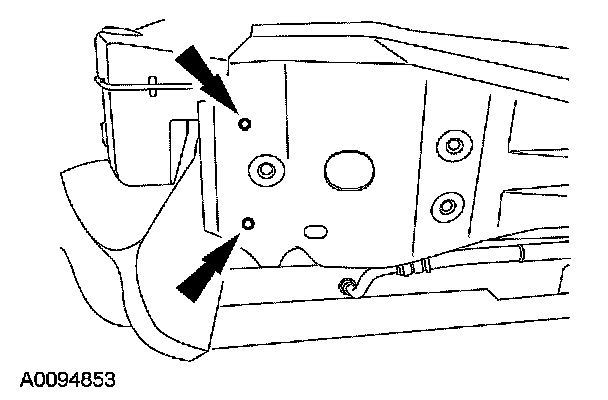

If removing the front bumper for the first time, drill out the 4 spot welds.

3. Remove the 6 bumper beam bolts.
- To install, tighten to 40 Nm (30 lb-ft).

4. To install, reverse the removal procedure.
