Test H: The Remote Keyless Entry Transmitter Has Poor Range Performance

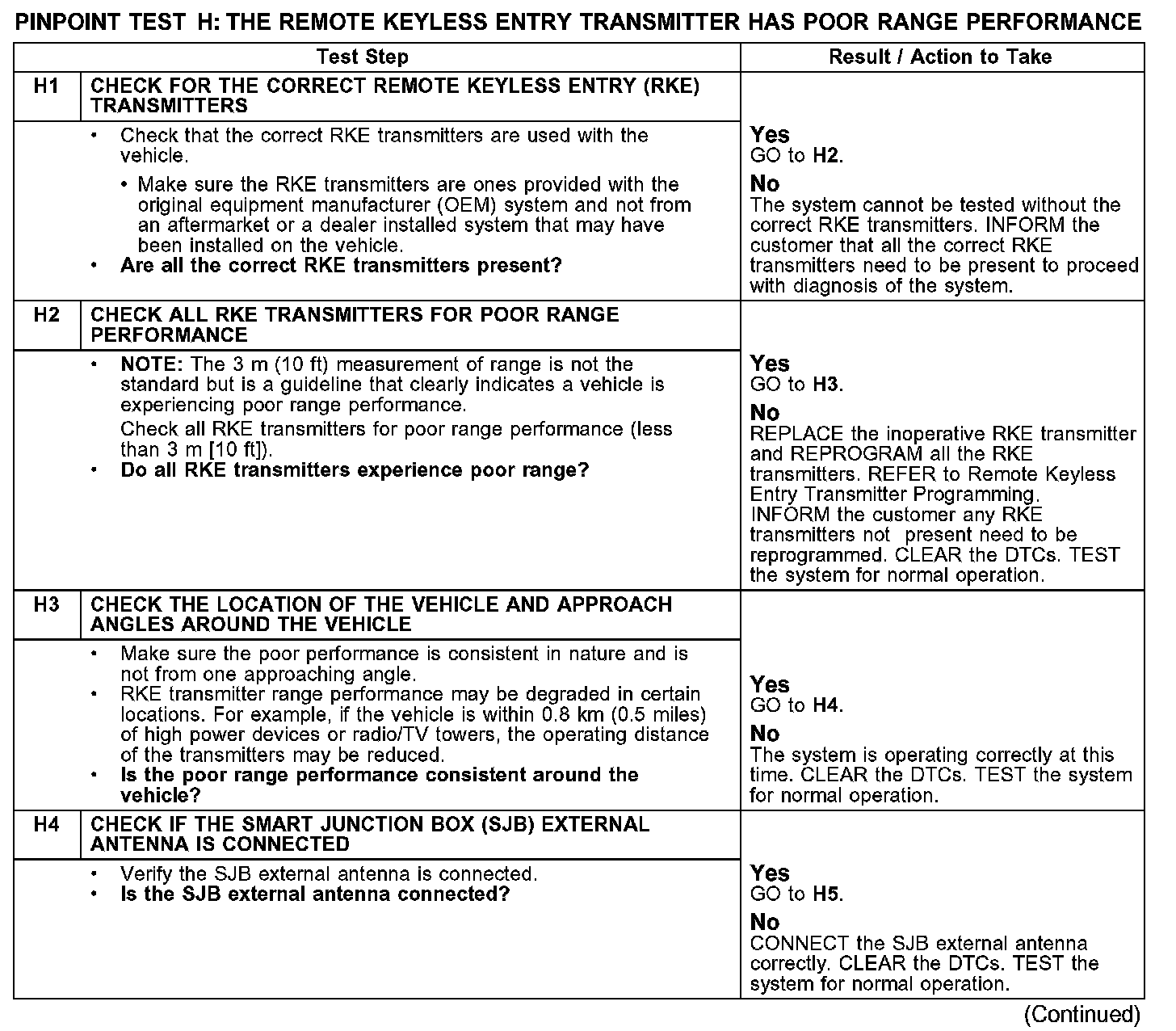

PINPOINT TEST H: THE REMOTE KEYLESS ENTRY TRANSMITTER HAS POOR RANGE PERFORMANCE

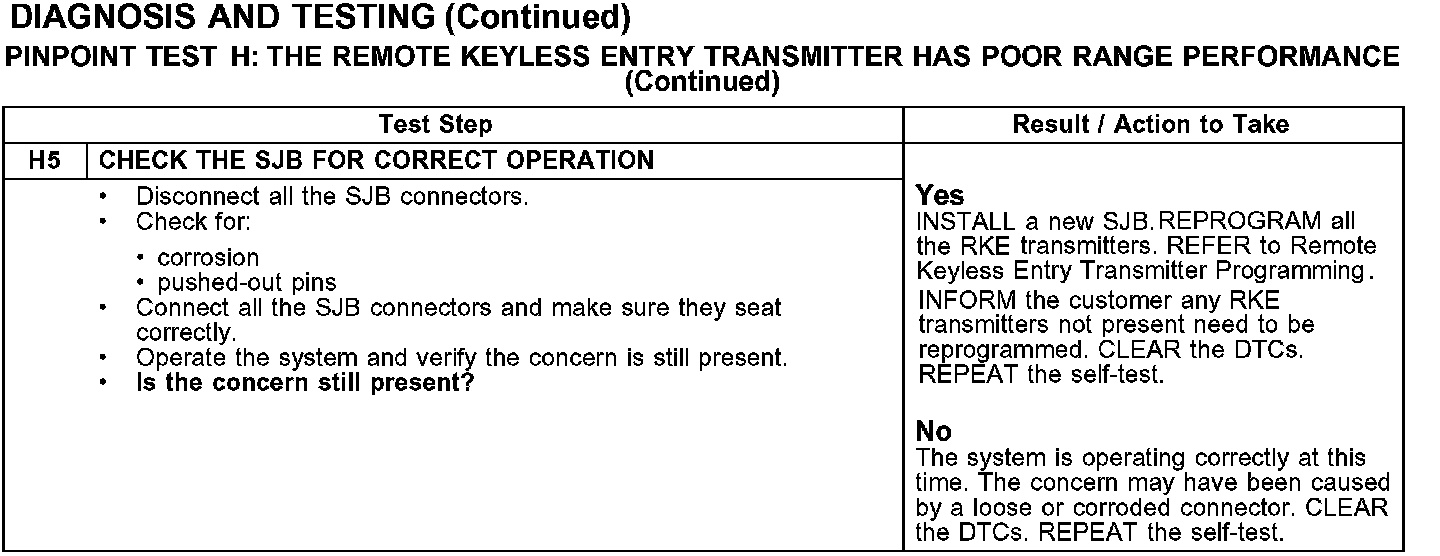

H1-H4:






H5:






Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) transmitter through the SJB external antenna. The SJB processes the command and sends a signal directly to the door lock actuators. The RKE transmitter has a minimum operating range of 10 m (33 feet).

All RKE transmitters need to be present to begin diagnosis of the RKE system.

Aftermarket or dealer-installed system may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

Possible Causes
- RKE transmitter
- SJB external antenna
- aftermarket systems
- high power devices
- TV/radio transmission towers
- SJB
