Interior Rear View Mirror

INTERIOR REAR VIEW MIRROR

Installer, Rear View Mirror:

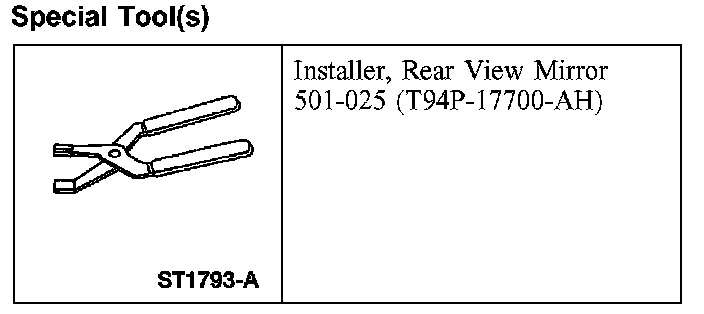

Special Tool(s)

Removal
1. If equipped, disconnect the electrical connector.
2. Place the mirror in the full down position. Pull downward until released.

Installation

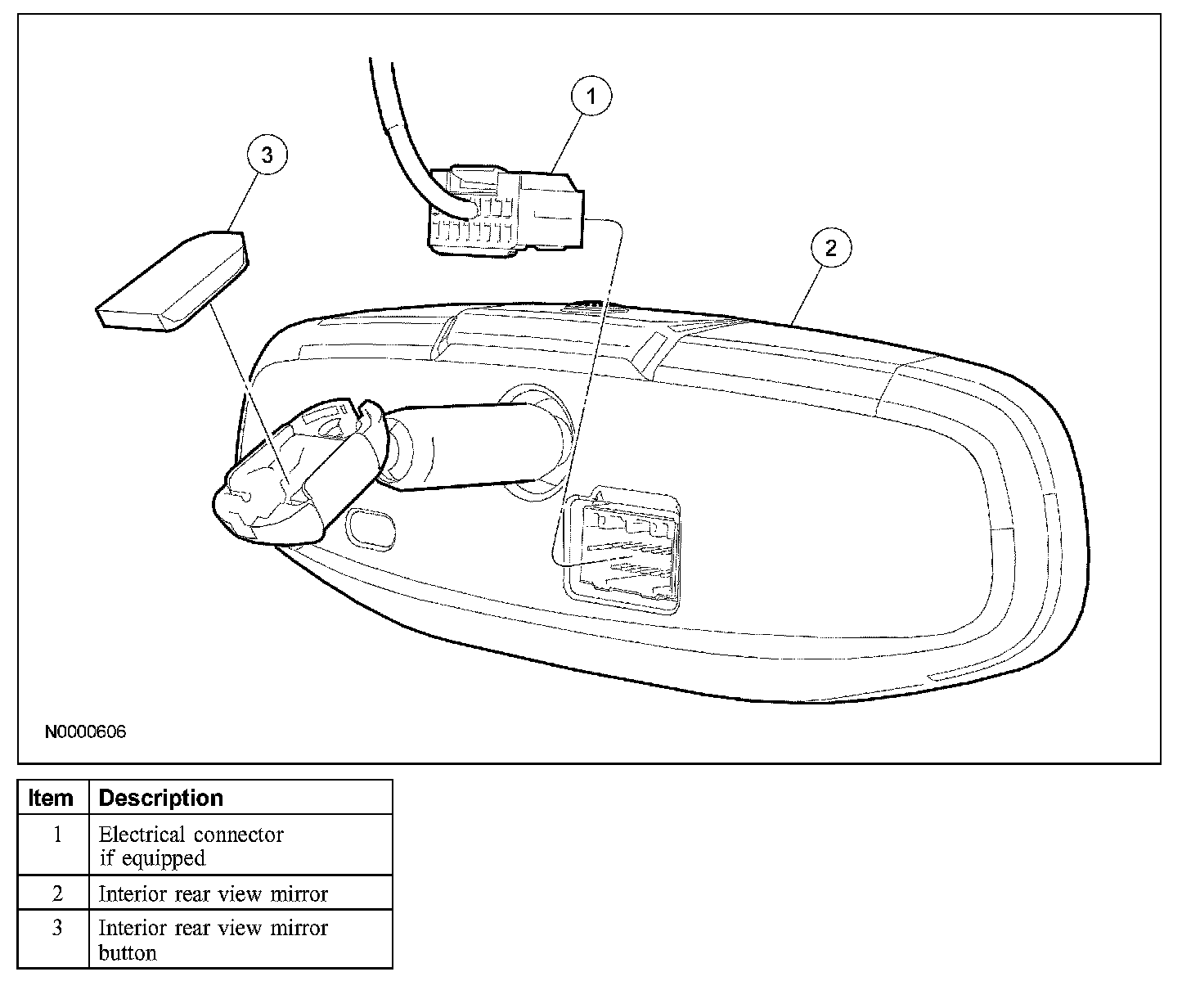

1. Place the interior rear view mirror on the interior rear view mirror button.

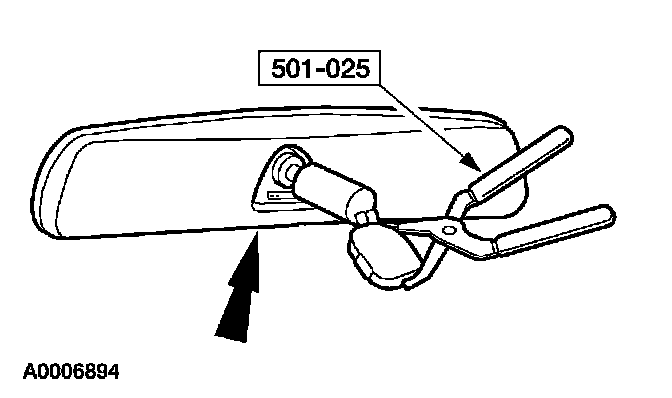

2. Using the special tool, press the mirror in place until it is fully seated.
3. If equipped, connect the electrical connector.
