Seat - Exploded View, Front

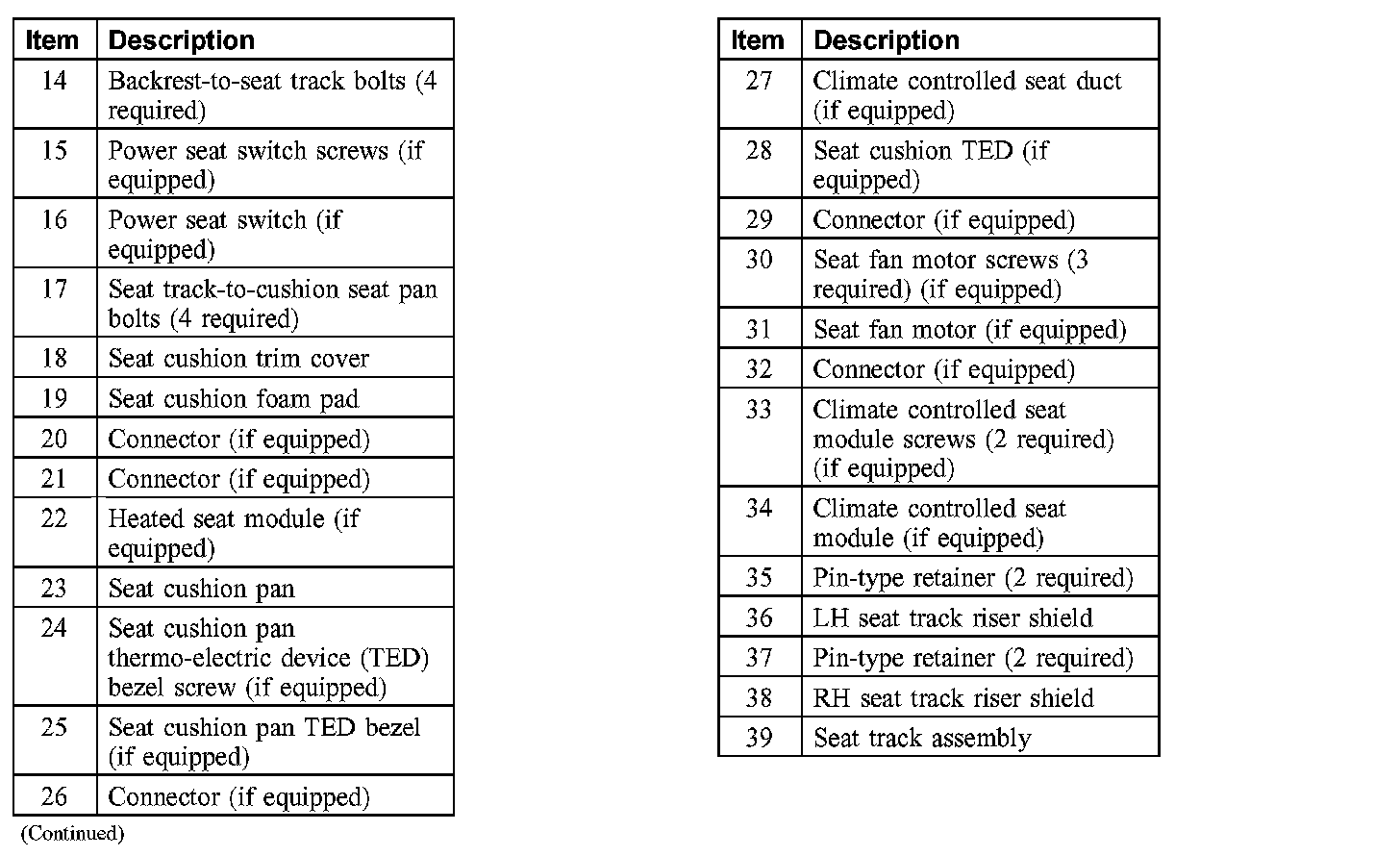

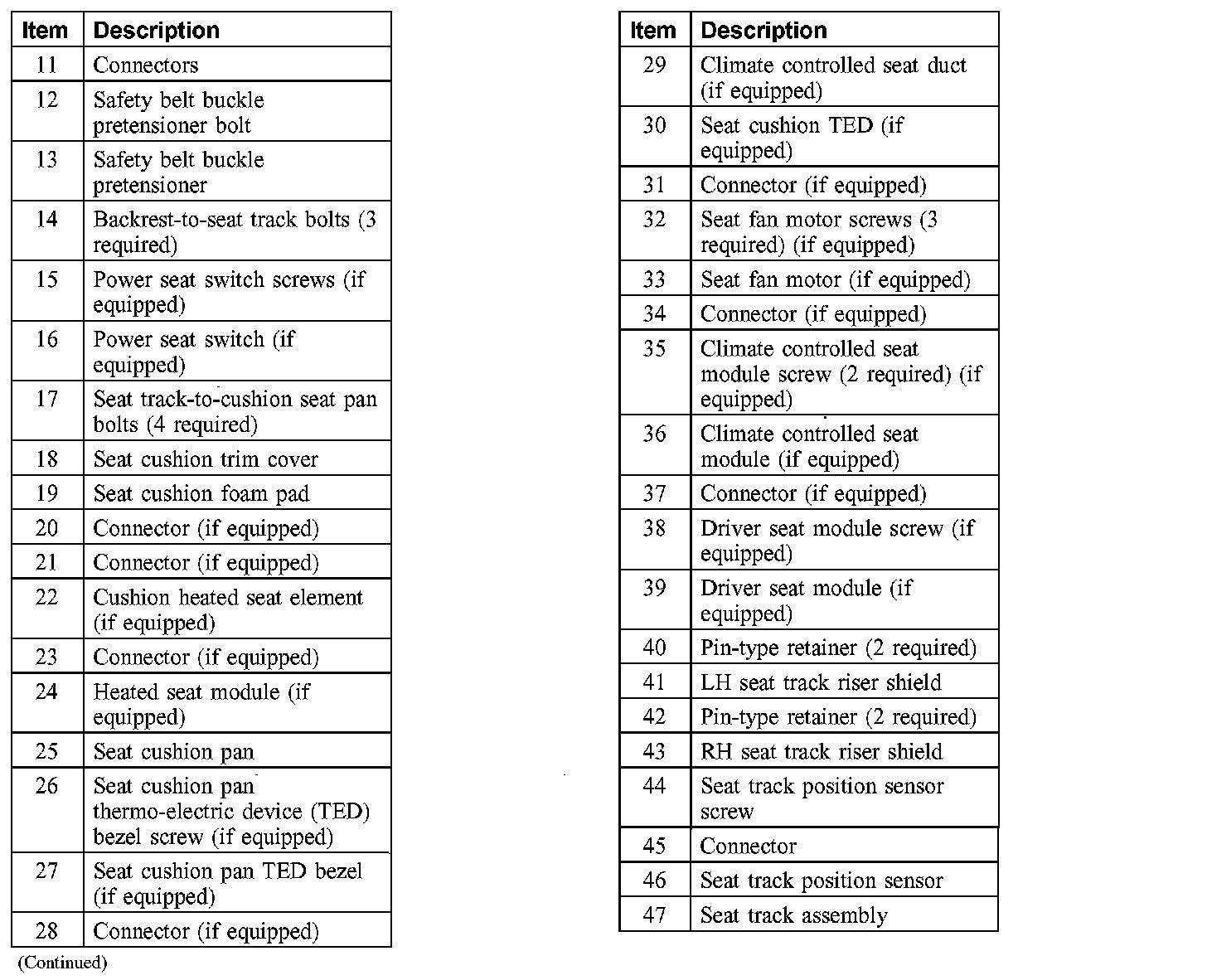

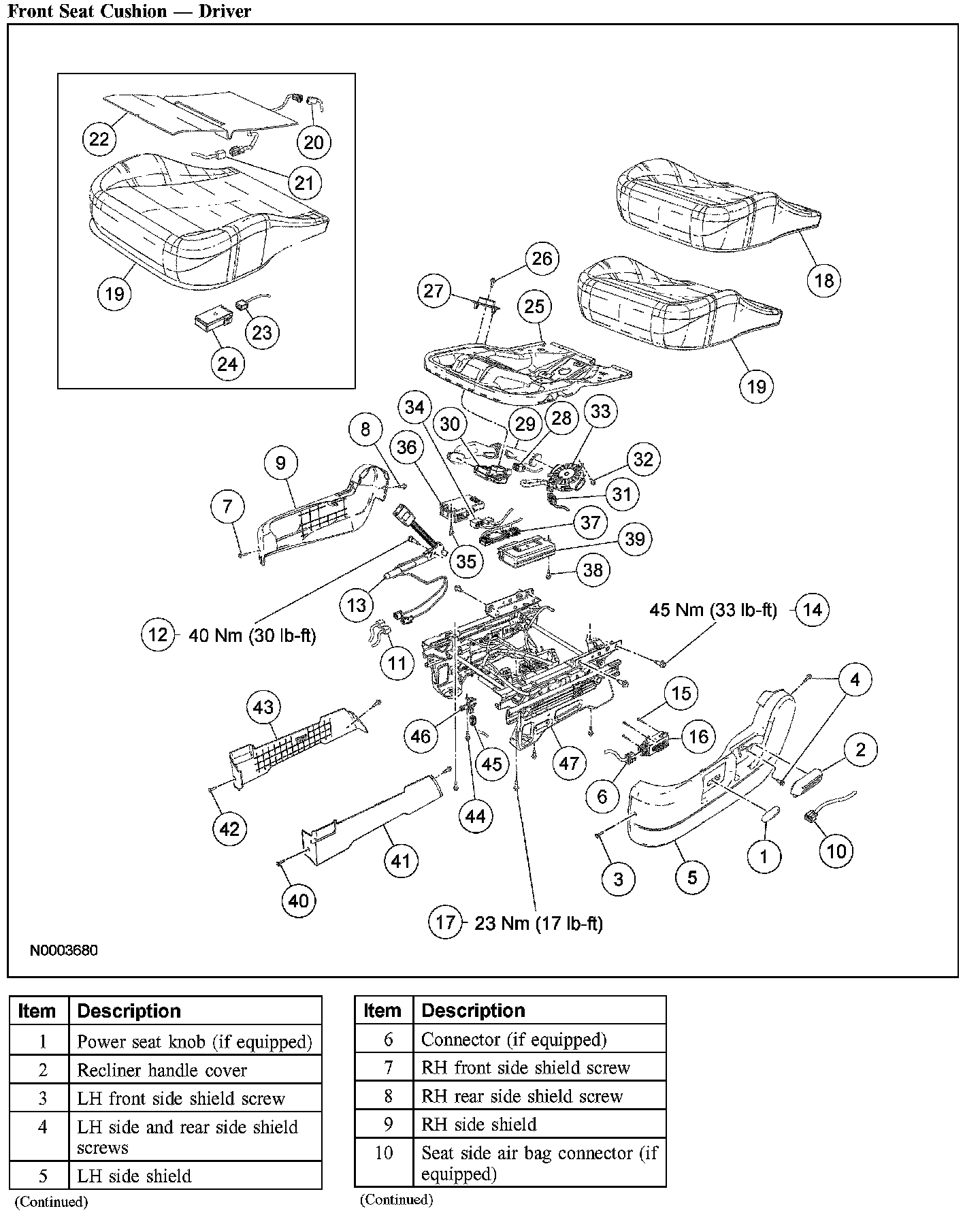

SEAT - EXPLODED VIEW, FRONTRemoval and InstallationFront Seat Cushion - Driver (Part 1):
Front Seat Cushion - Driver (Part 2):
Front Seat Cushion - Passenger (Part 1):
Front Seat Cushion - Passenger (Part 2):

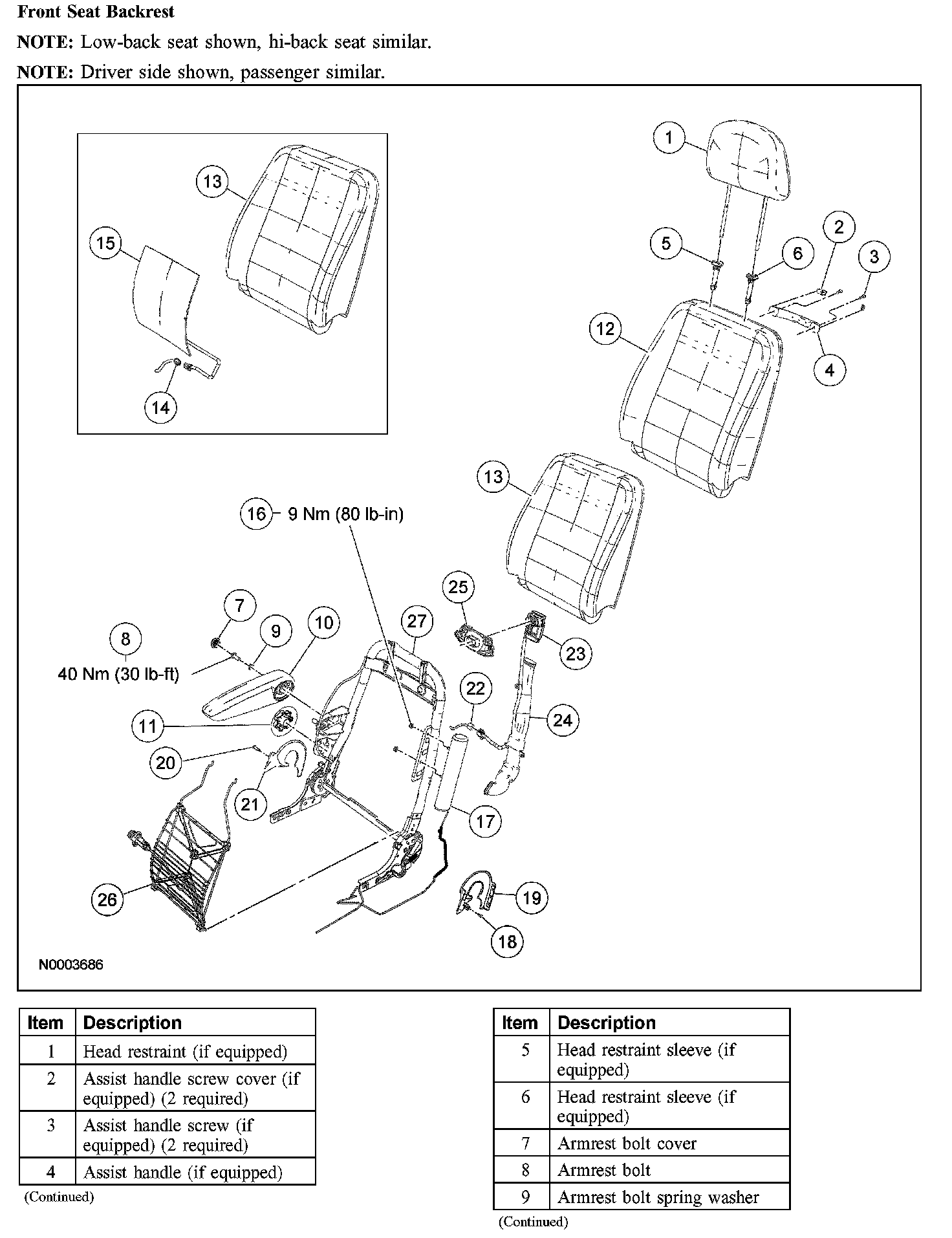

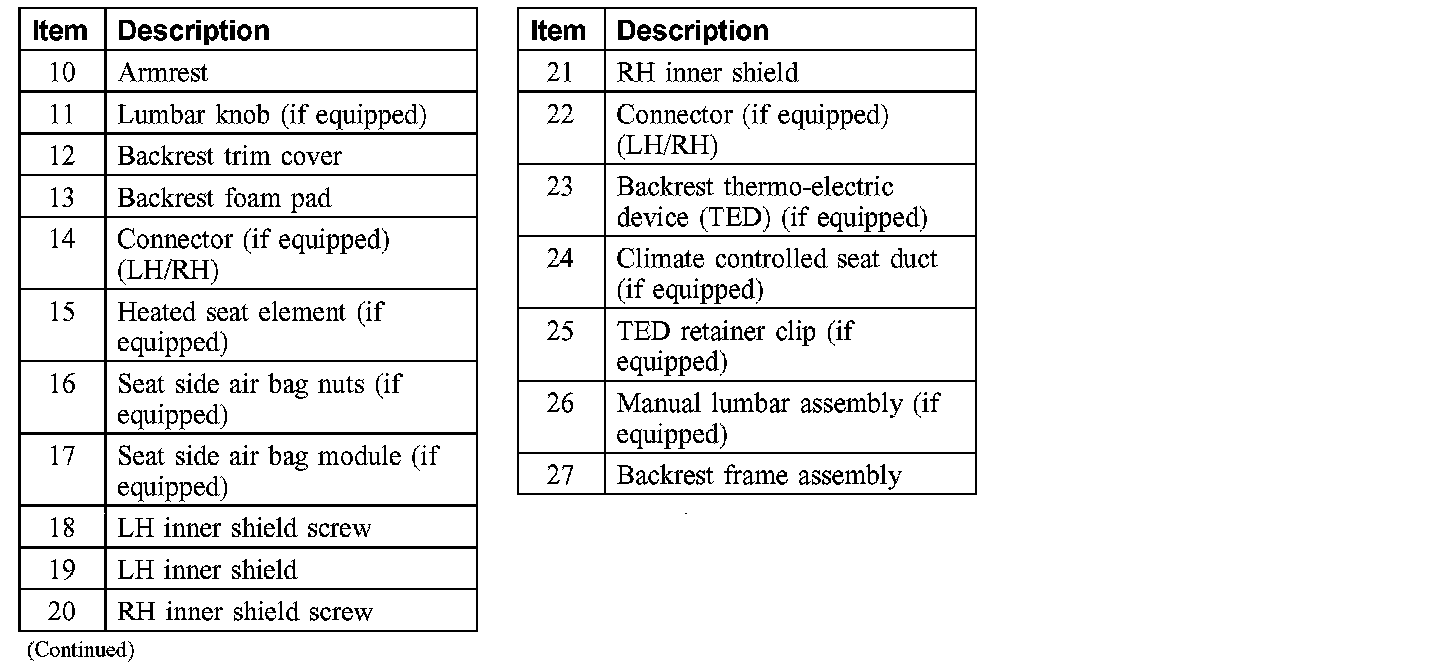

Front Seat Backrest (Part 1):
Front Seat Backrest (Part 2):
1.
For additional information, refer to the procedures.
