Home >> Ford >> 2005 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Speed Control Actuator C122

Speed Control Actuator C122

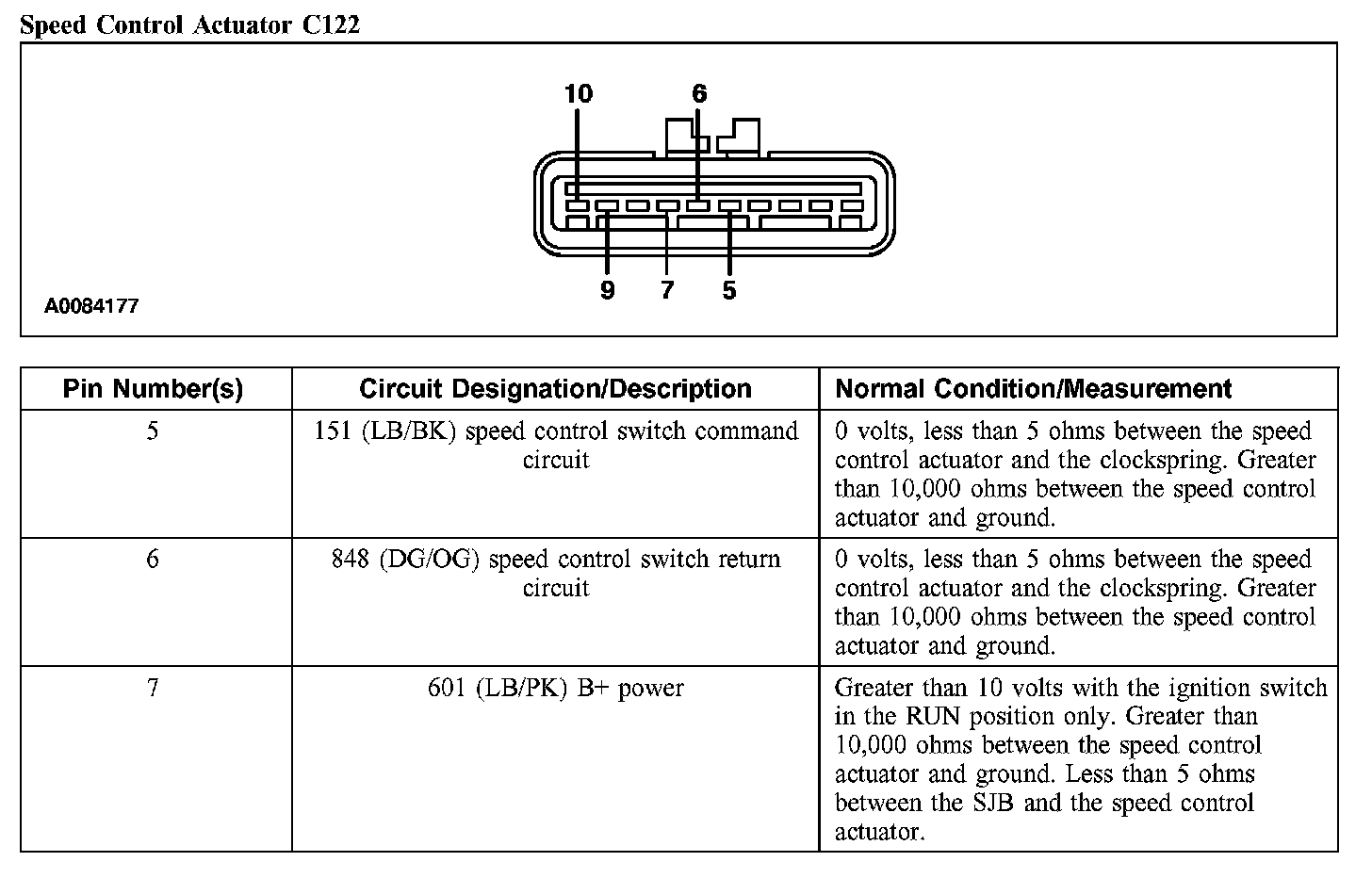

Speed Control Actuator C122 (Part 1):

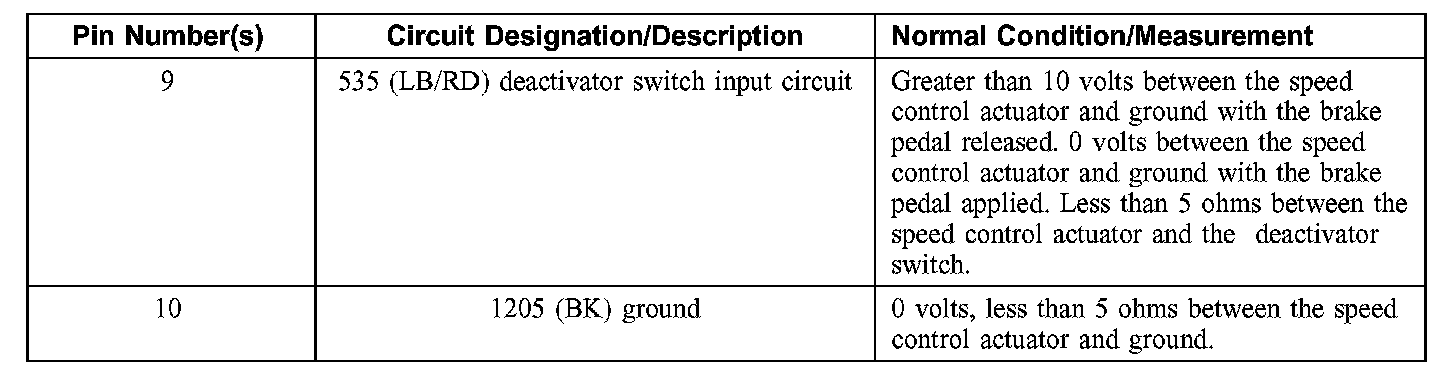

Speed Control Actuator C122 (Part 2):
