Control Components

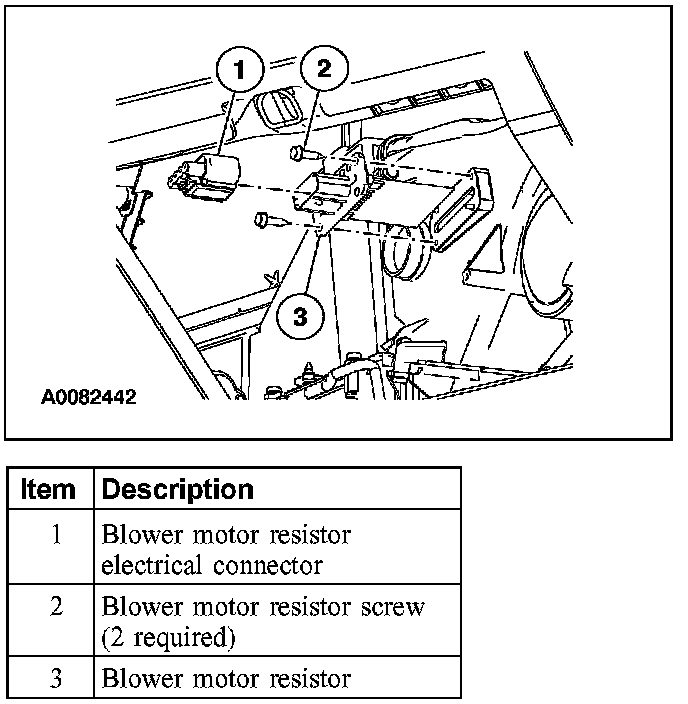

BLOWER MOTOR RESISTOR







Removal and Installation
1. Lower the glove compartment.
2. Disconnect the blower motor resistor electrical connector.
3. Remove the 2 blower motor resistor screws.
4. Remove the blower motor resistor.
5. To install, reverse the removal procedure.
