Auxiliary Climate Control

BLOWER MOTOR

Removal and Installation
1. Remove the LH quarter trim panel. Refer to: Body and Frame, Interior Moulding/Trim, Trim Panel, Service and Repair, Service and Repair

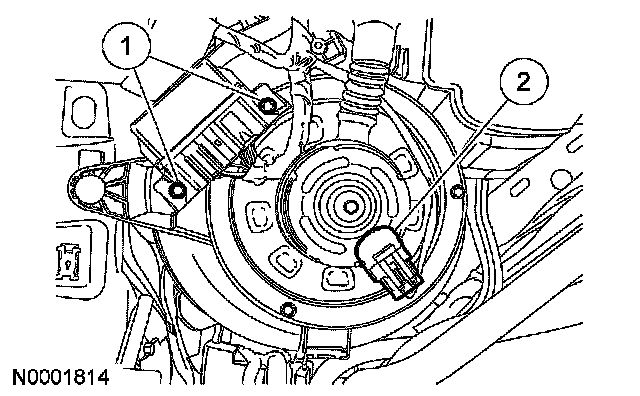

2. Detach the wire harness.
1 Remove the screws.
2 Disconnect the blower motor electrical connector and position the wire harness aside.

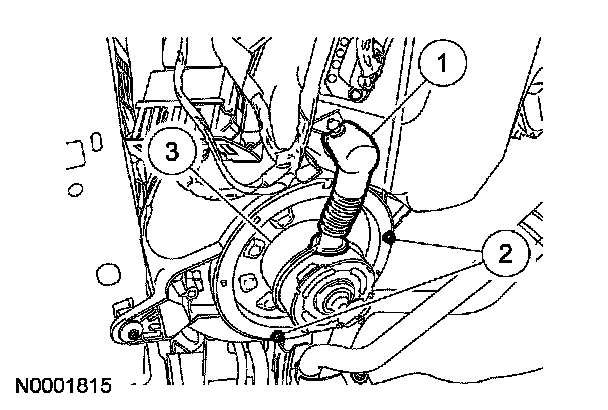

3. Remove the auxiliary blower motor.
1 Detach the vent tube.
2 Remove the screws.
3 Remove the blower motor.

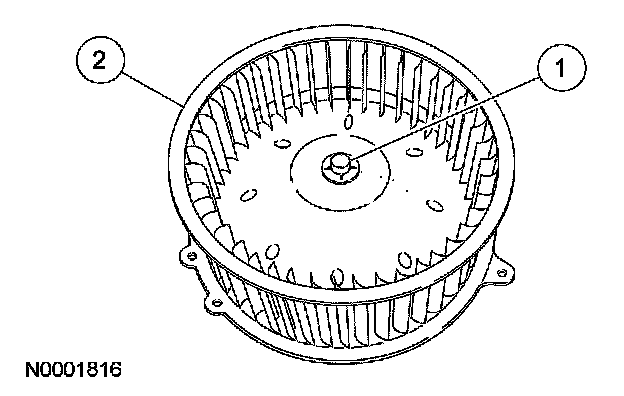

4. Remove the blower motor wheel.
1 Remove the clip.
2 Remove the blower motor wheel.

5. To install, reverse the removal procedure.
