Plenum Chamber

PLENUM CHAMBER

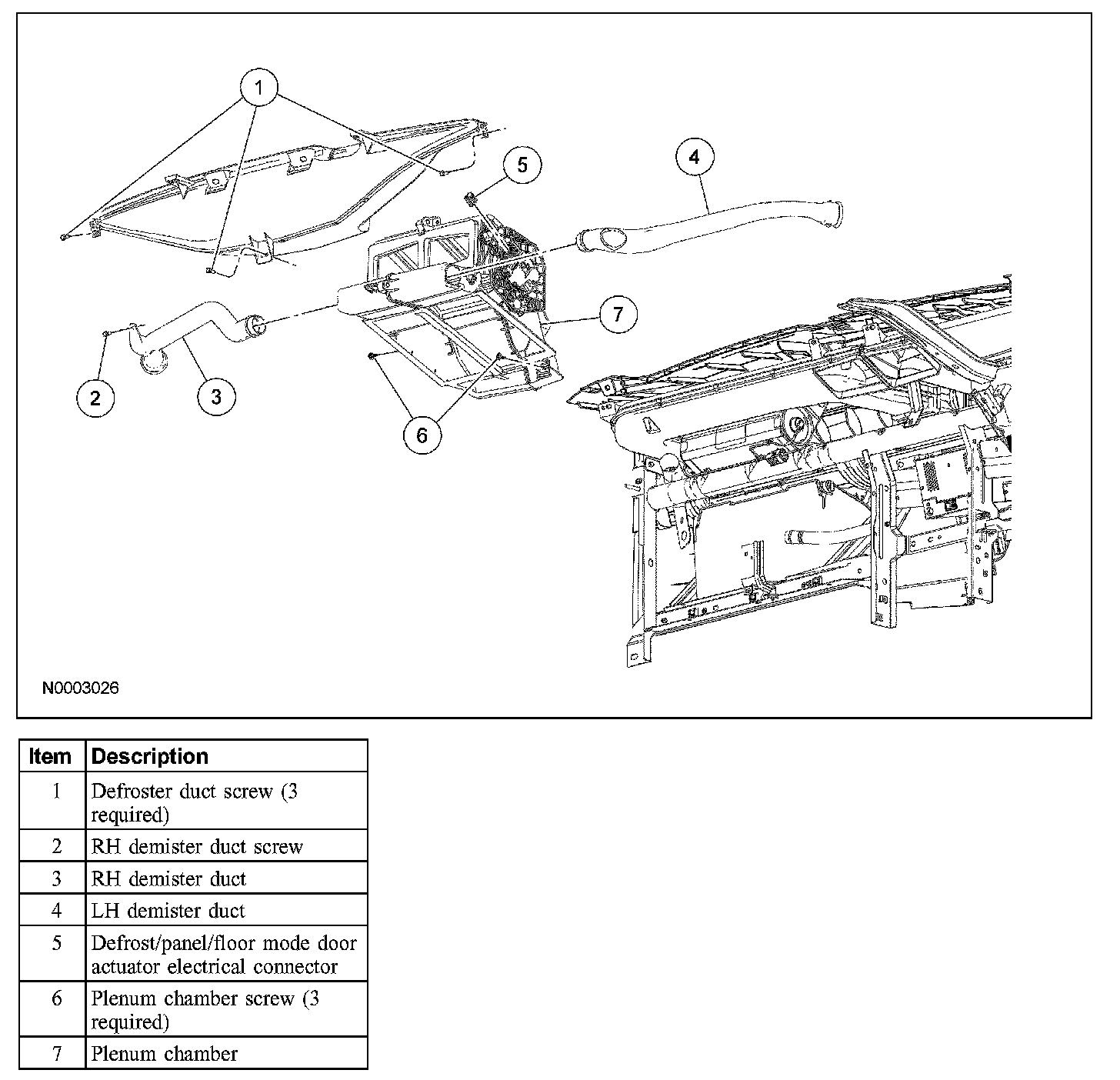

Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

2. Remove the 3 defroster duct screws.
3. Remove the RH demister duct screw.
4. Remove the RH demister duct.
5. Remove the LH demister duct.
6. Disconnect the defrost/panel/floor mode door actuator electrical connector.
7. Remove the 3 plenum chamber screws.
8. Remove the plenum chamber.
9. To install, reverse the removal procedure.
