Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation





1. Remove the accessory drive belt.

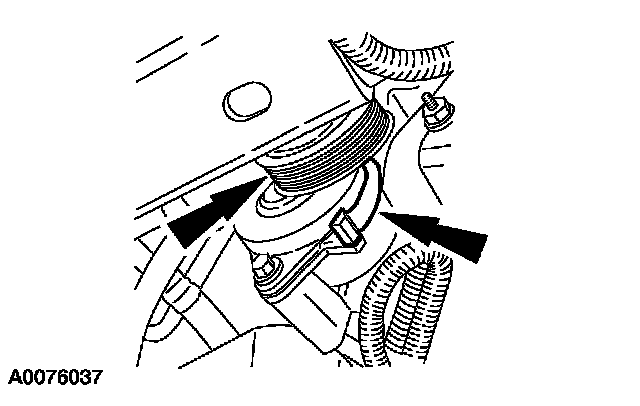

^ Rotate the accessory drive belt tensioner counterclockwise.
^ Push the spring clip toward the belt tensioner to lock the accessory drive belt tensioner in place.

2. To install, reverse the removal procedure.
