Front

FRONT DOOR WINDOW GLASS

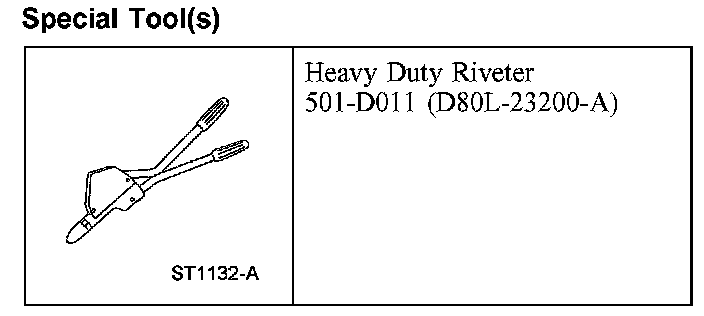

Heavy Duty Riveter:

Special Tool(s)

Removal and Installation
1. Remove the front door trim panel.
2. Position the watershield aside.
3. Connect the window control switch.
4. If necessary, connect the battery.

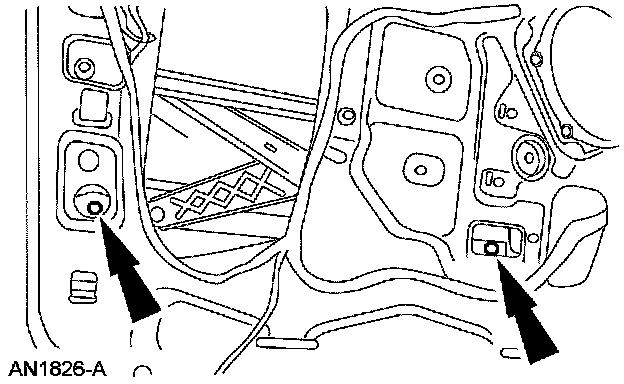

5. Remove the rivets.
- Lower the window glass enough to gain access to the door window glass rivets.

6. Remove the door window glass.
7. To install, reverse the removal procedure.
