Windshield Washer Pump: Service and Repair

WINDSHIELD WASHER PUMP AND RESERVOIR

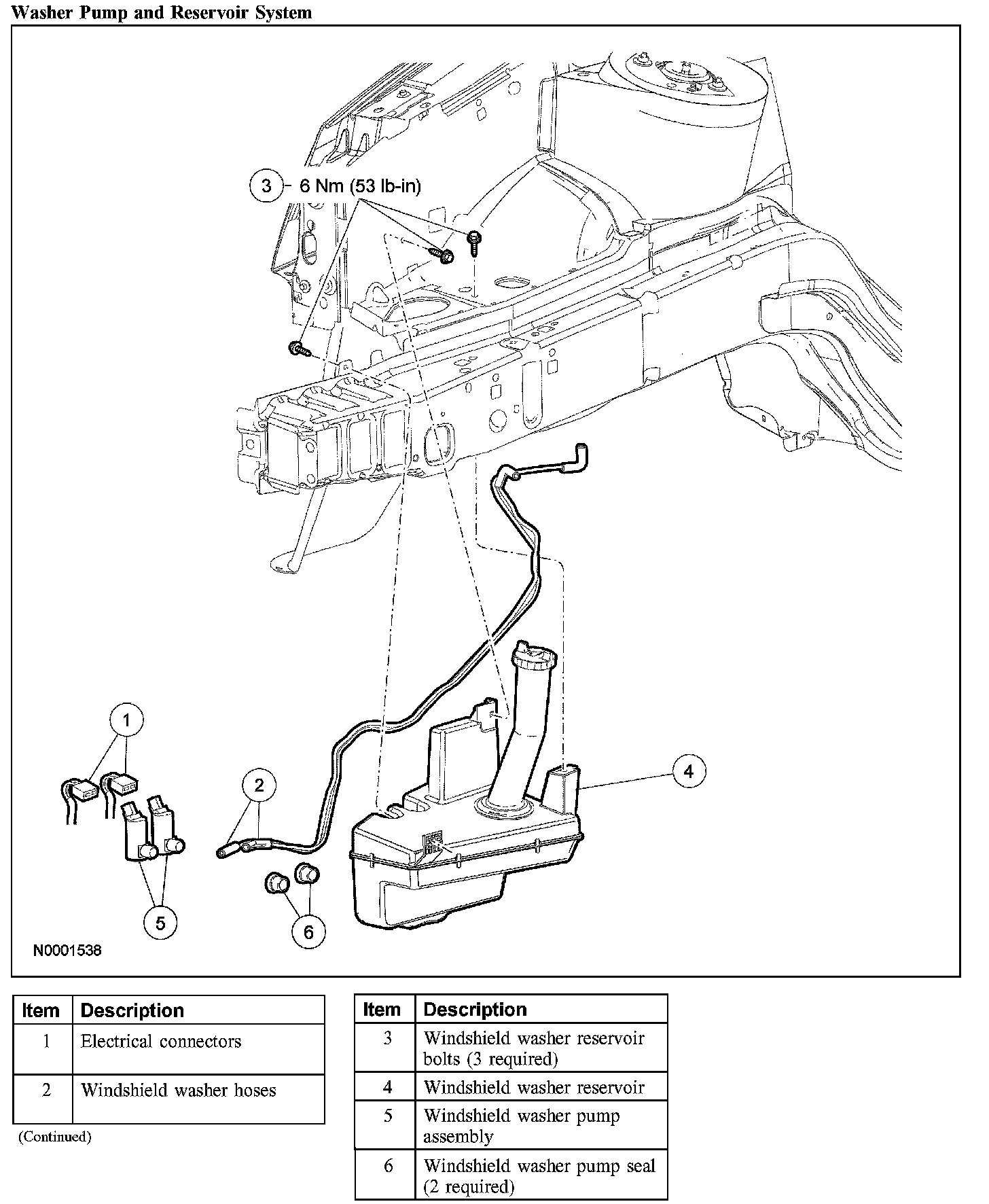

Washer Pump and Reservior System:

Removal and Installation
1. Disconnect the battery.
2. Remove the right front wheel.
3. Position the right front splash shield aside.

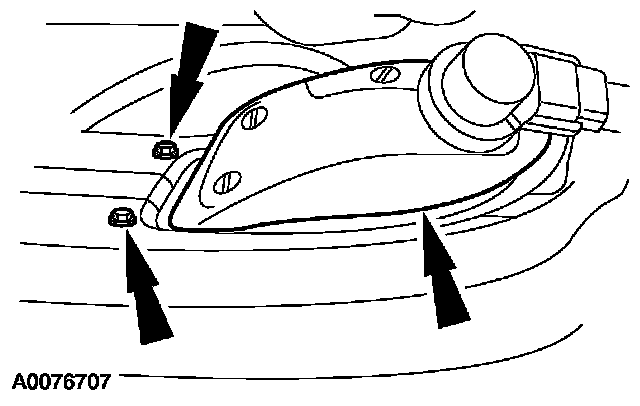

4. Remove the screws and the right front corner lamp.
5. Remove the 2 bolts and position the degas bottle aside.
6. Disconnect the electrical connectors from the windshield washer pump assembly.

7. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on the label of the washer solution container.

Disconnect the windshield washer hoses and drain the reservoir into a suitable container.

8. Remove the windshield washer reservoir bolts and reservoir.

9. CAUTION: Do not make any electrical connections prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

NOTE: Connect the windshield washer hoses to the windshield washer reservoir before installation.

To install, reverse the removal procedure.
