Wiper Switch: Service and Repair

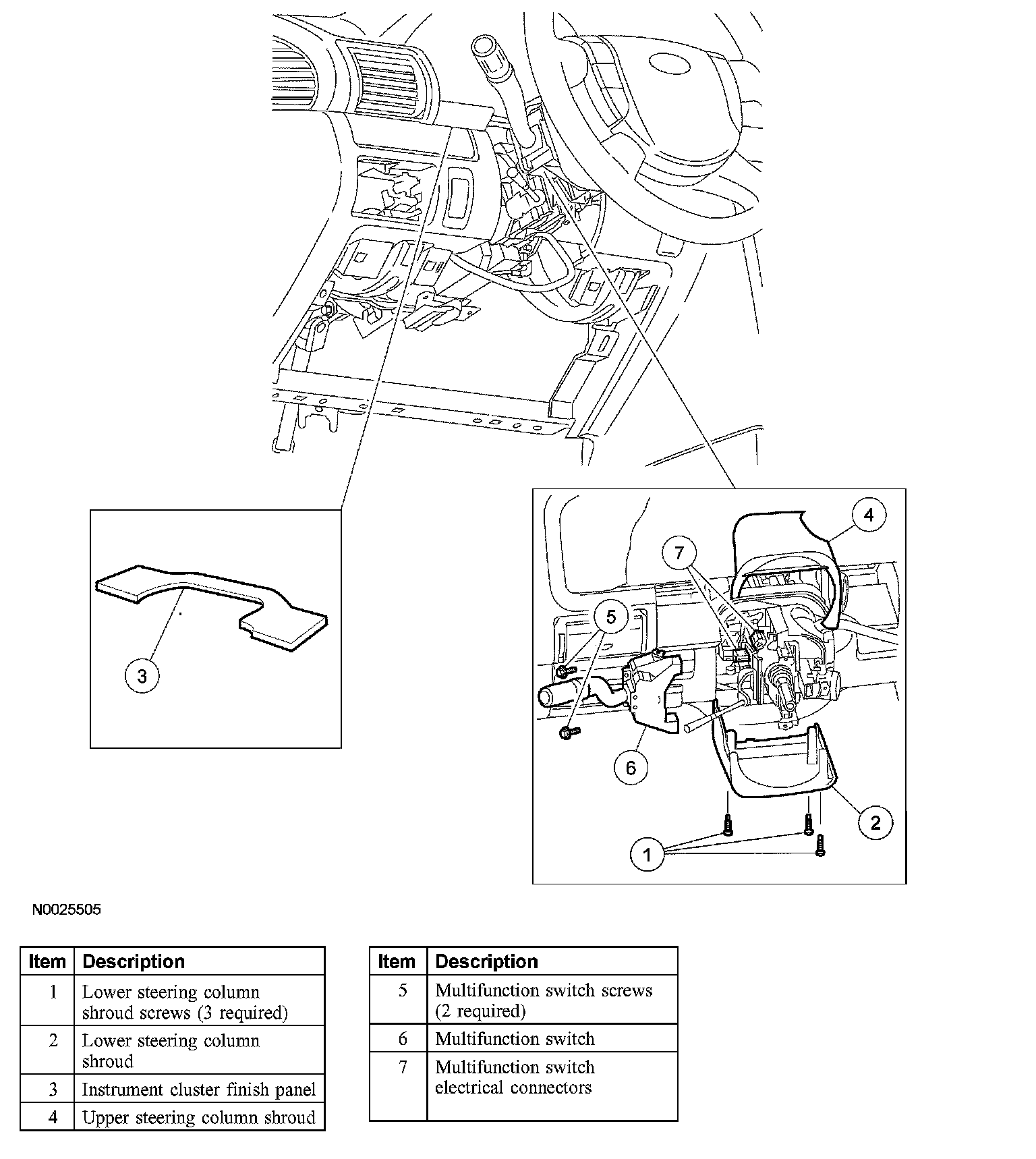

Steering Column Multifunction SwitchRemoval and Installation 1.
Remove the ignition lock cylinder.
2.
Remove the 3 screws and the lower steering column shroud.
3.
Remove the instrument cluster finish panel.
4.
Remove the upper steering column shroud.
5.
Remove the 2 screws and the multifunction switch.
^
Disconnect the electrical connectors.
6.
To install, reverse the removal procedure.
