Ambient Temperature Sensor / Switch HVAC: Service and Repair

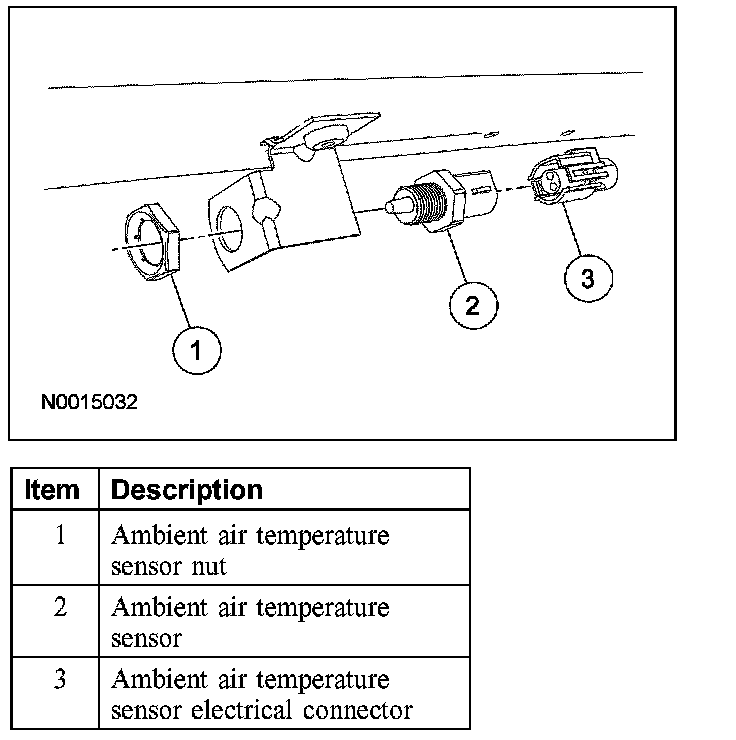

AMBIENT AIR TEMPERATURE SENSORRemoval and Installation 1.
Remove the lower radiator splash shield.
2.
Disconnect the ambient air temperature sensor electrical connector.
3.
Remove the ambient air temperature sensor nut.
4.
Remove the ambient air temperature sensor.
5.
To install, reverse the removal procedure.
