Control Assembly: Service and Repair

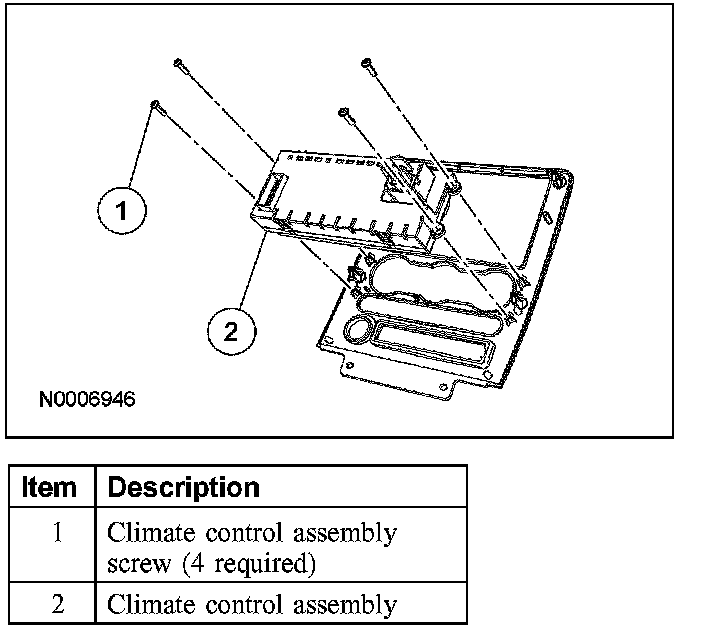

CLIMATE CONTROL ASSEMBLYRemoval and Installation 1.
Remove the instrument panel center finish panel.
2.
Remove the 4 climate control assembly screws.
3.
Remove the climate control assembly.
4.
To install, reverse the removal procedure.
