Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

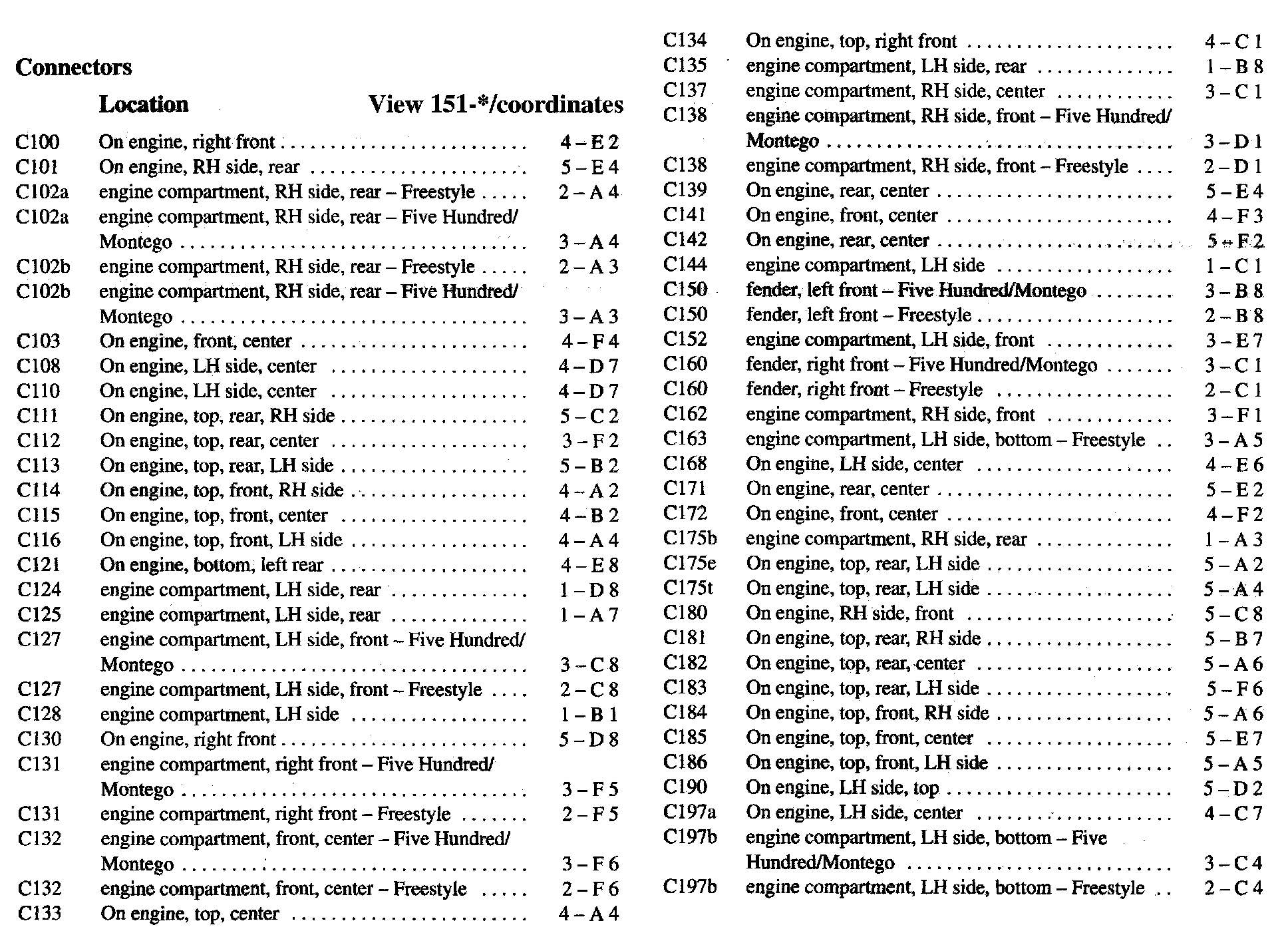

C100-C197b:

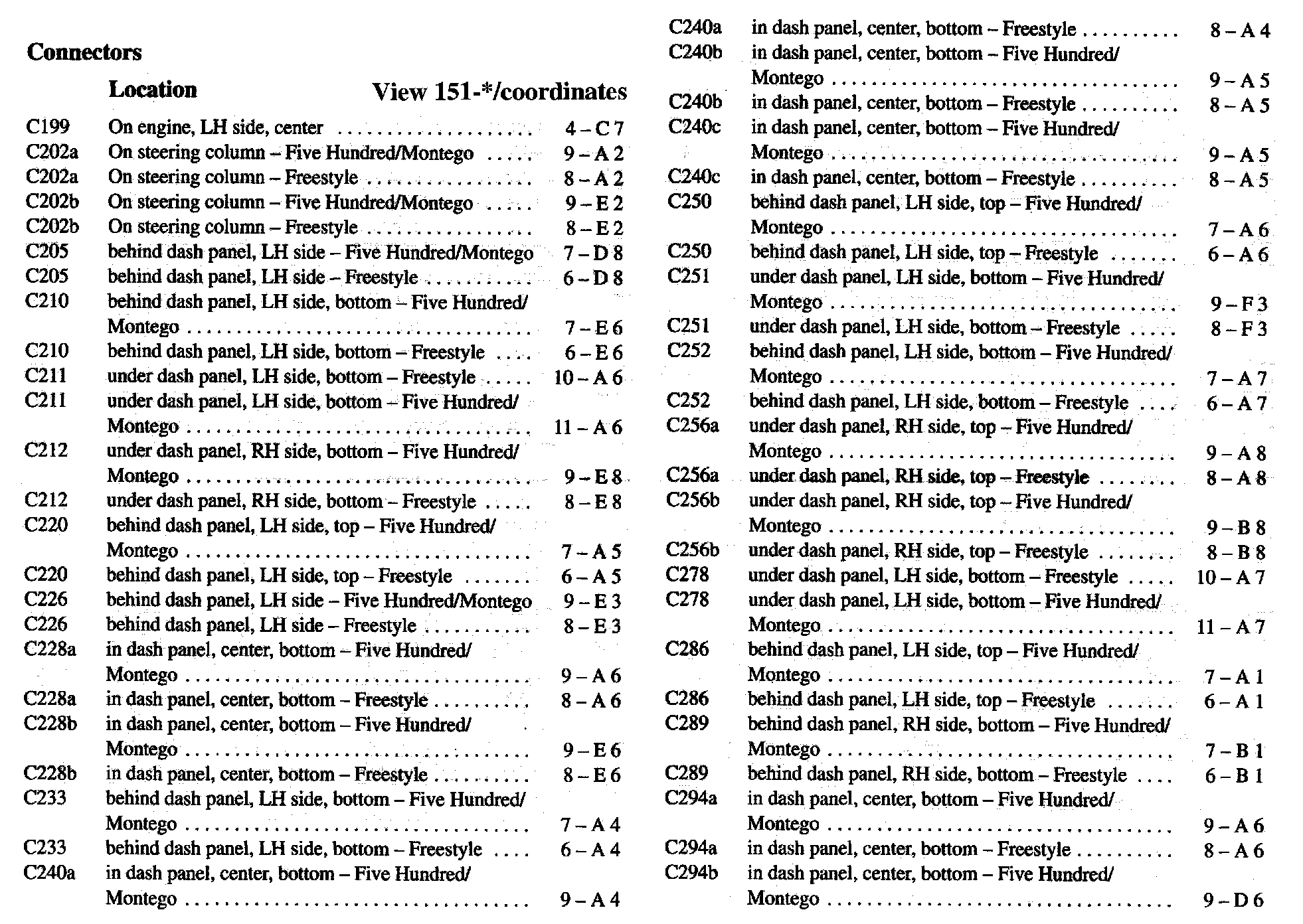

C199-C294b:

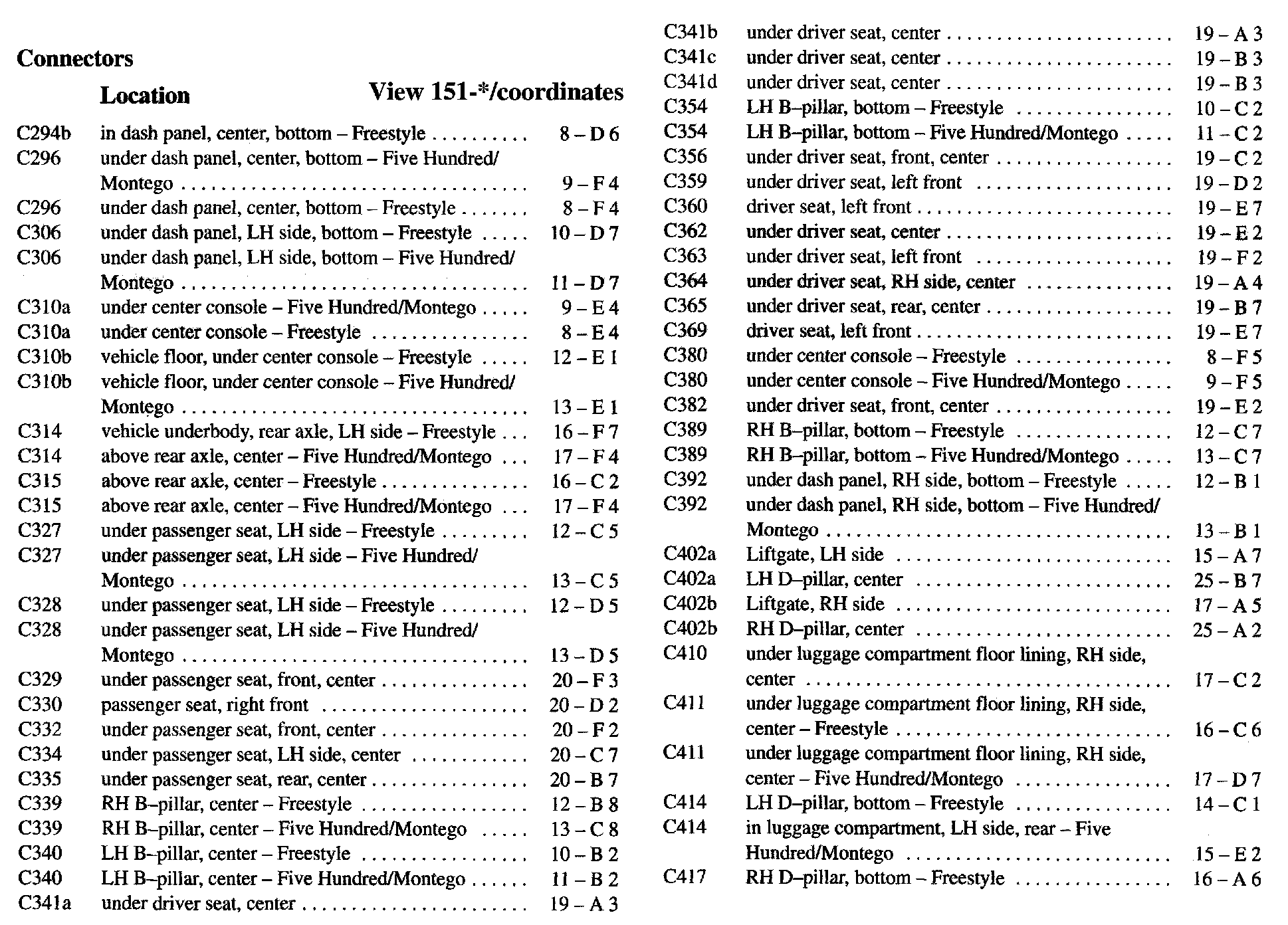

C294b-C417:

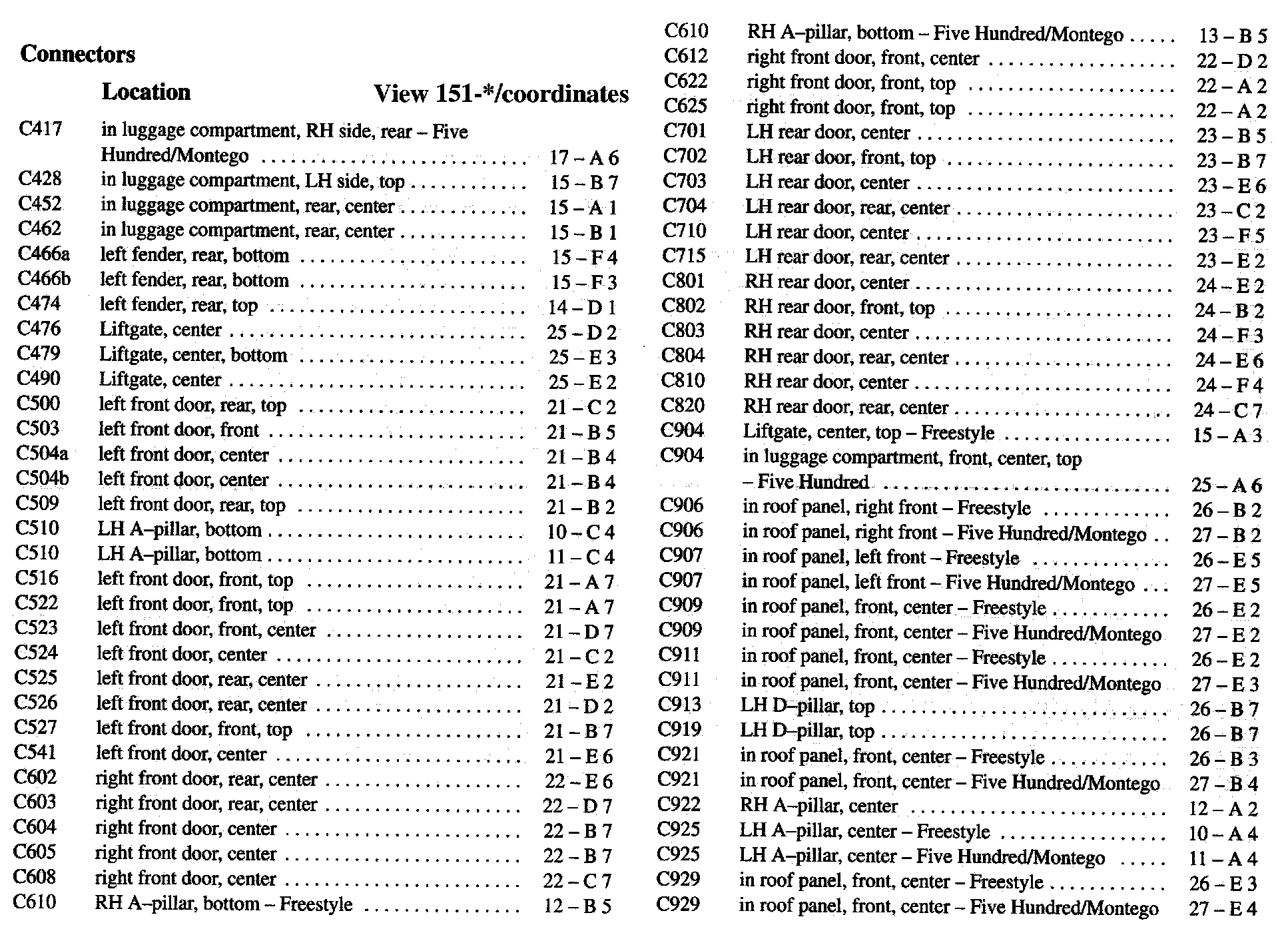

C417-C929:

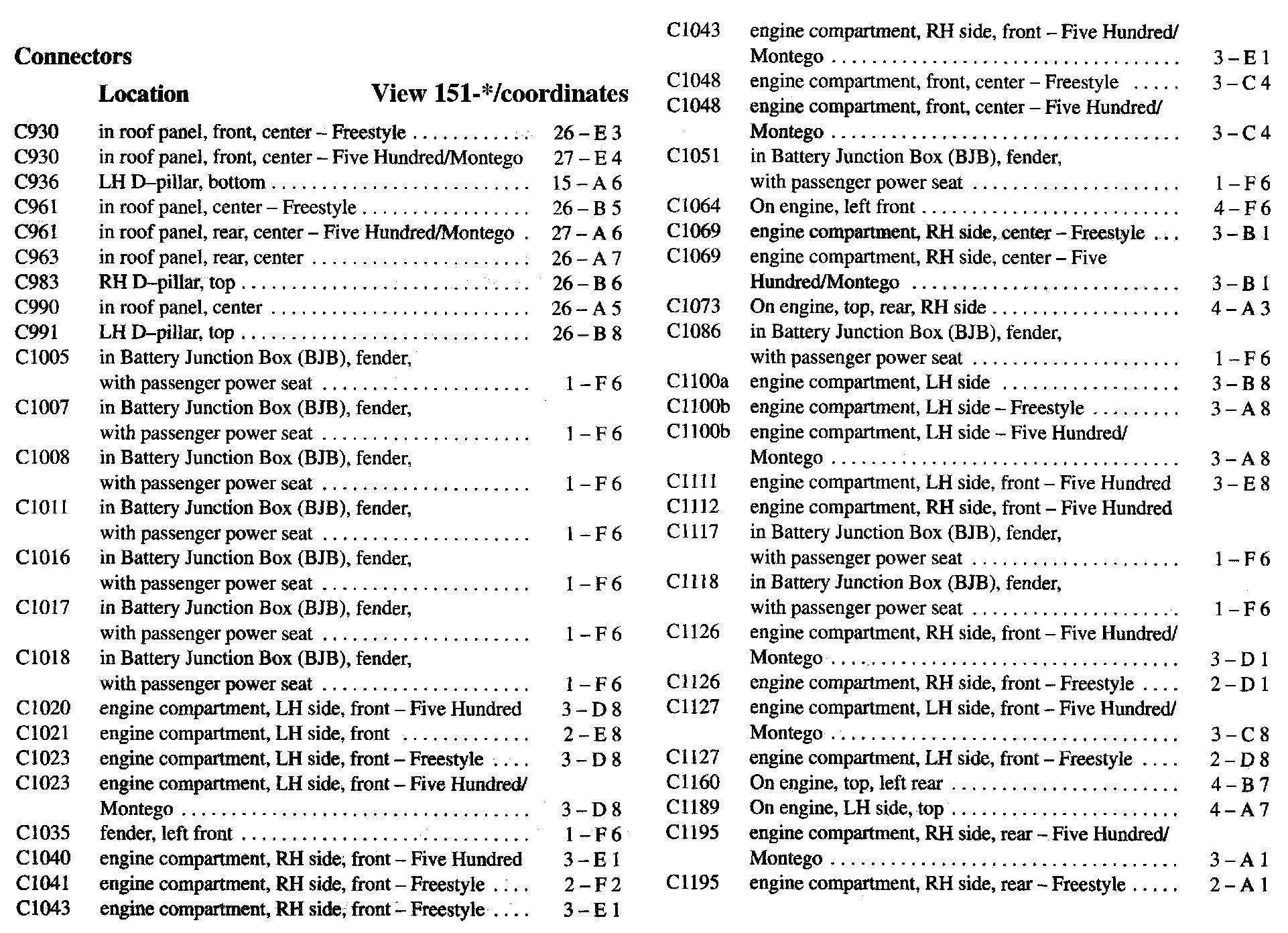

C930-C1195:

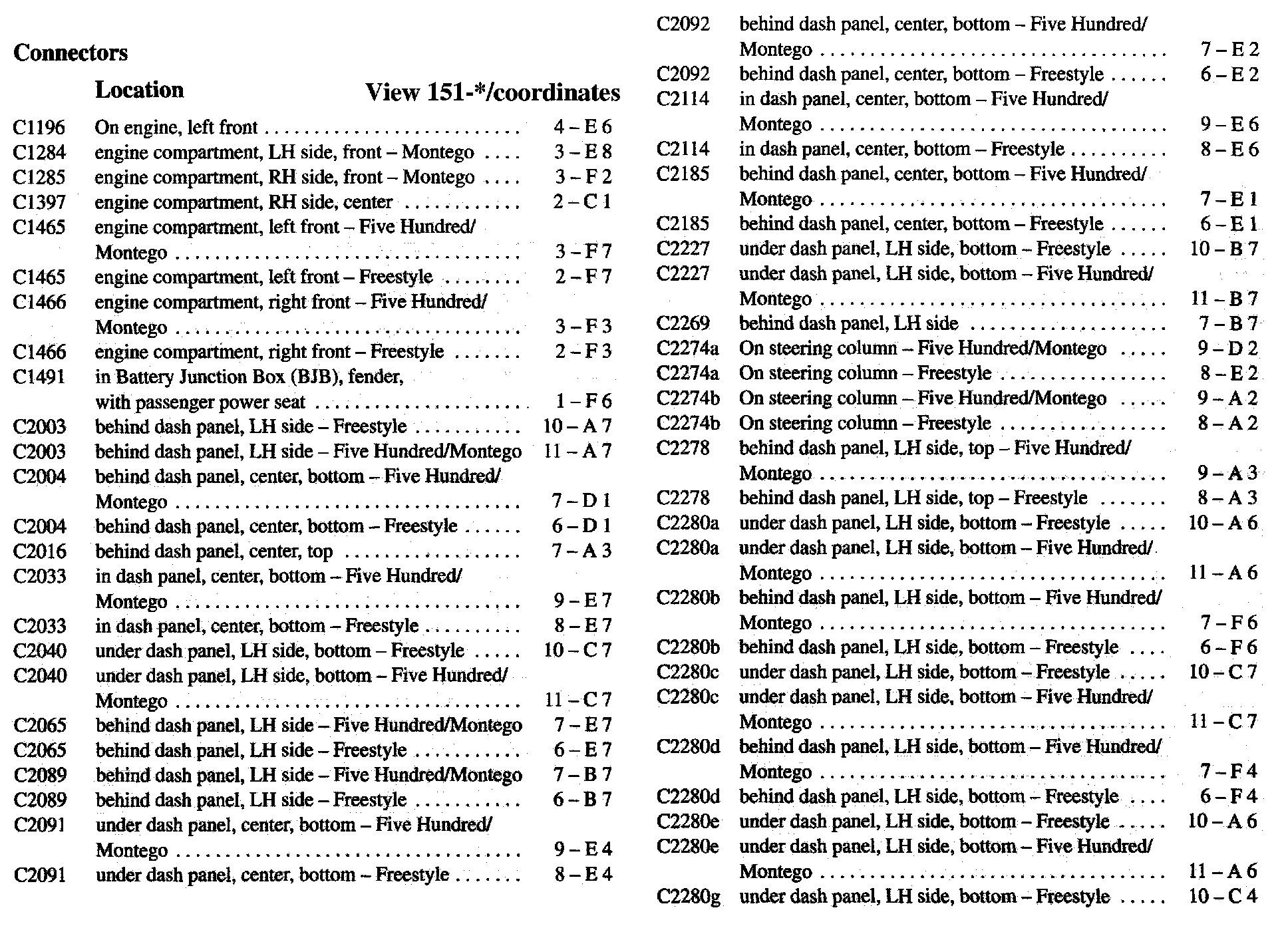

C1196-C2280g:
C2280g-C4009:

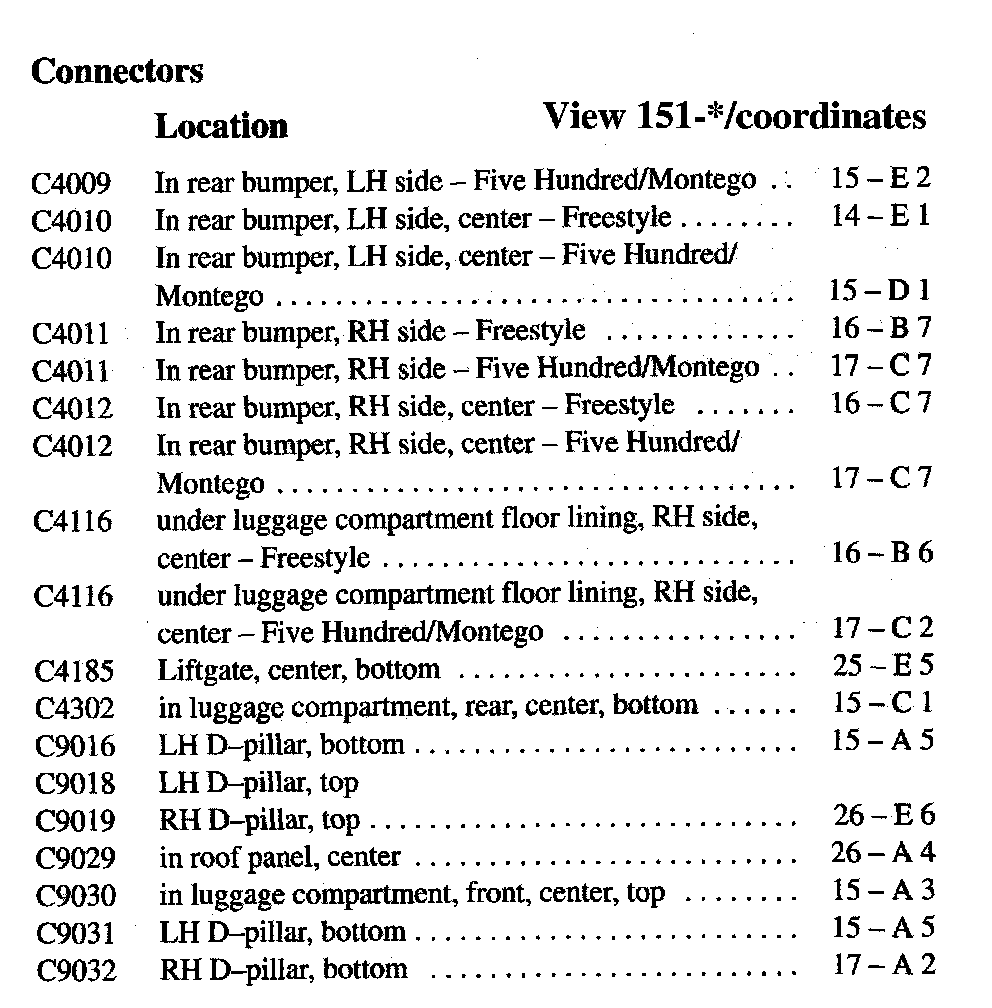

C4009-C9032:
