Rear Toe Adjustment
Rear Toe Adjustment 1.

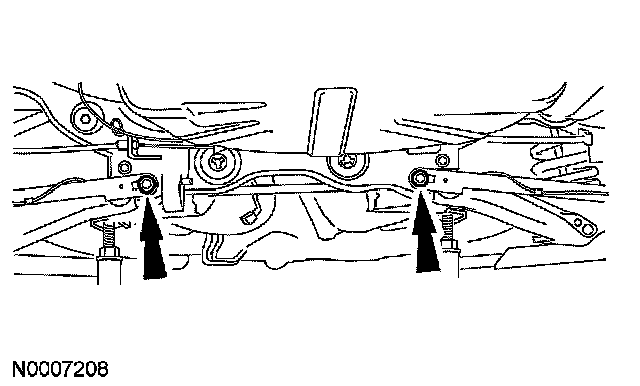

Loosen the toe link nut approximately one full turn.
2.
From the opposite side, rotate the toe link bolt to achieve the specified toe setting.
3.
CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.
While holding the toe link bolt, tighten the nut to
100 Nm (74 ft. lbs.).
