System Specifications
TORQUE SPECIFICATIONSCrankshaft Pulley Bolt
Stage 1
120 Nm (86 ft. lbs.)
Stage 2
Loosen one full turn.
Stage 3
50 Nm (37 ft. lbs.)
Stage 4
Tighten an additional 90 degrees.

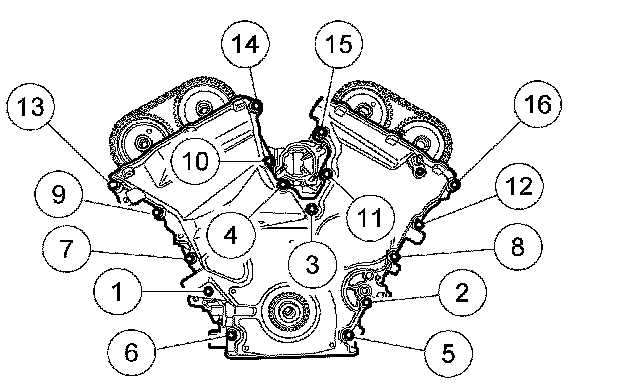

Timing coverEngine Front Cover
25 Nm (18 ft. lbs.)
Timing chain guide bolts
25 Nm (18 ft. lbs.)
Timing chain tensioner bolts
25 Nm (18 ft. lbs.)
