Ignition Lock: Service and Repair

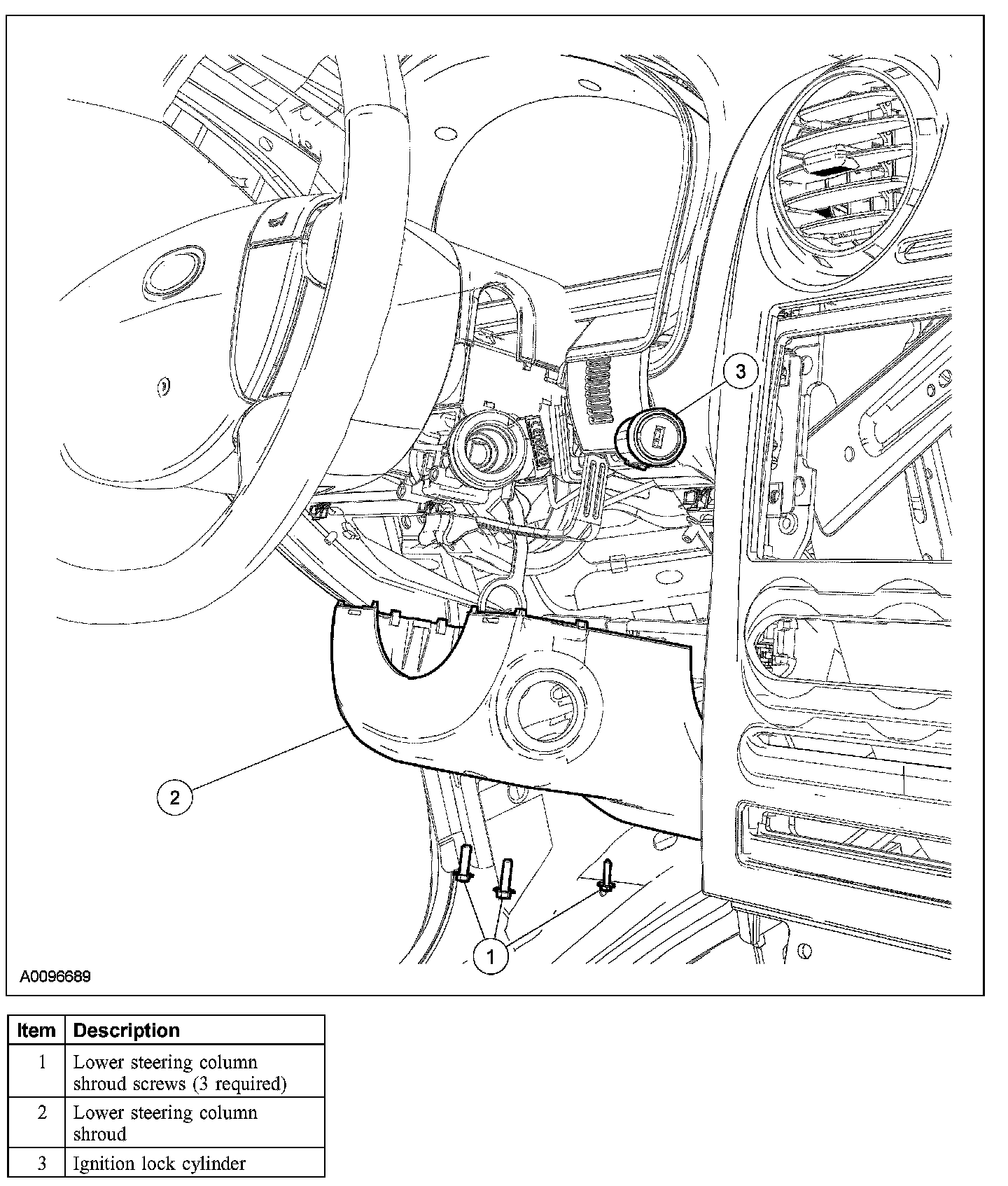

IGNITION LOCK CYLINDERRemoval and Installation 1.
Disconnect the battery.
2.
Remove the steering column cover.
3.
Remove the 3 lower steering column shroud screws.
4.
Remove the lower steering column shroud.
5.
Insert the ignition key and turn it to the ACC position.
6.
Using a suitable tool, press the release pin and remove the ignition cylinder.
7.
To install, reverse the removal procedure.
