Alternator: Service and Repair

GENERATOR







Removal and Installation

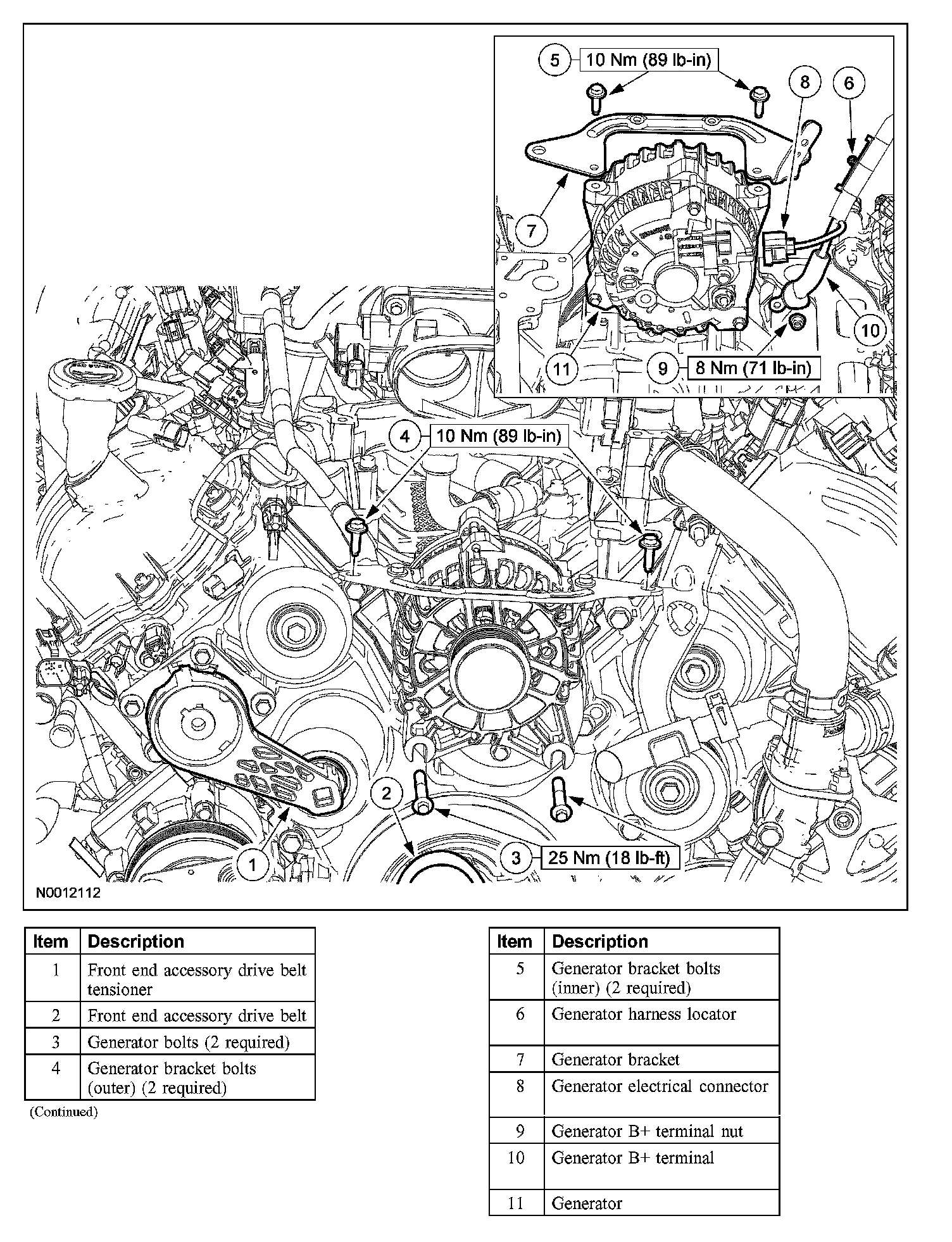

1. Disconnect the battery.
2. Press the lock tab, remove the crankcase vent tube from the air cleaner outlet pipe and position it aside.
3. Loosen the clamp, remove the air cleaner outlet pipe from the throttle body and position it aside.
4. Rotate the front end accessory drive belt tensioner clockwise and position the front end accessory drive belt aside.
5. Remove the 2 generator bolts.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the 2 outer generator bracket bolts and position the generator aside.
- To install, tighten to 10 Nm (89 lb-in).

7. Remove the 2 inner generator bracket bolts.
- To install, tighten to 10 Nm (89 lb-in).

8. Remove the generator harness locator and remove the generator bracket.
9. Disconnect the generator electrical connector.
10. Position the generator B+ protective boot aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

11. Remove the generator.
12. To install, reverse the removal procedure.
