Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

Removal and Installation

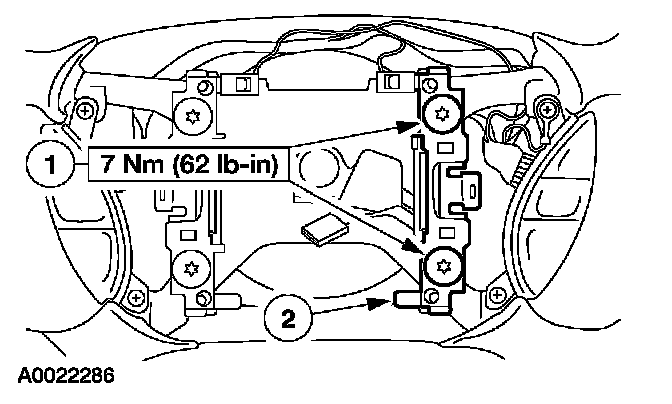

1. Remove the steering wheel.







2. Remove the steering wheel rear cover.

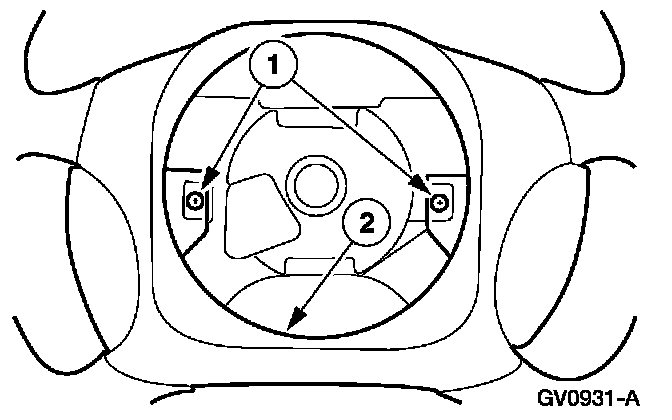

1. Remove the screws.
2. Remove the steering wheel rear cover.

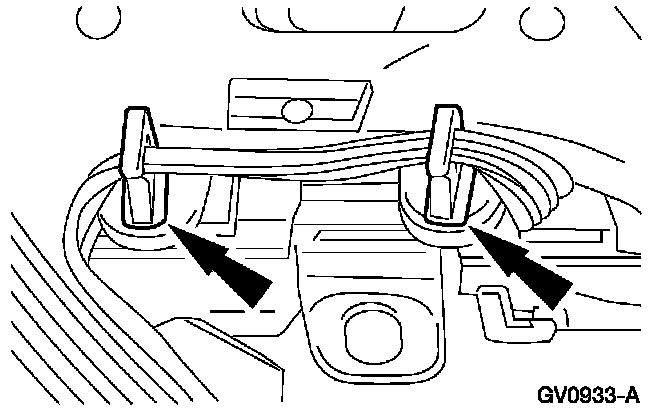

3. Remove the ribbon harness from the clips.







4. Remove the horn contact electrical connectors.







5. Remove the right side horn contact.
1. Remove the screws.
2. Remove the contact.

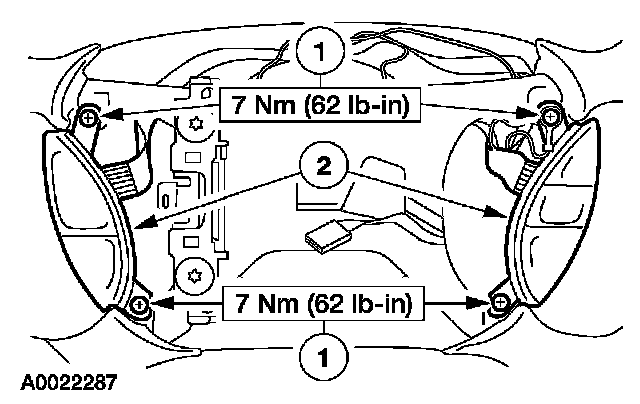

6. Remove the speed control switch assembly.
1. Remove the screws.
2. Remove the speed control switch assembly.

7. To install, reverse the removal procedure.
