Removal

REMOVAL

Engine

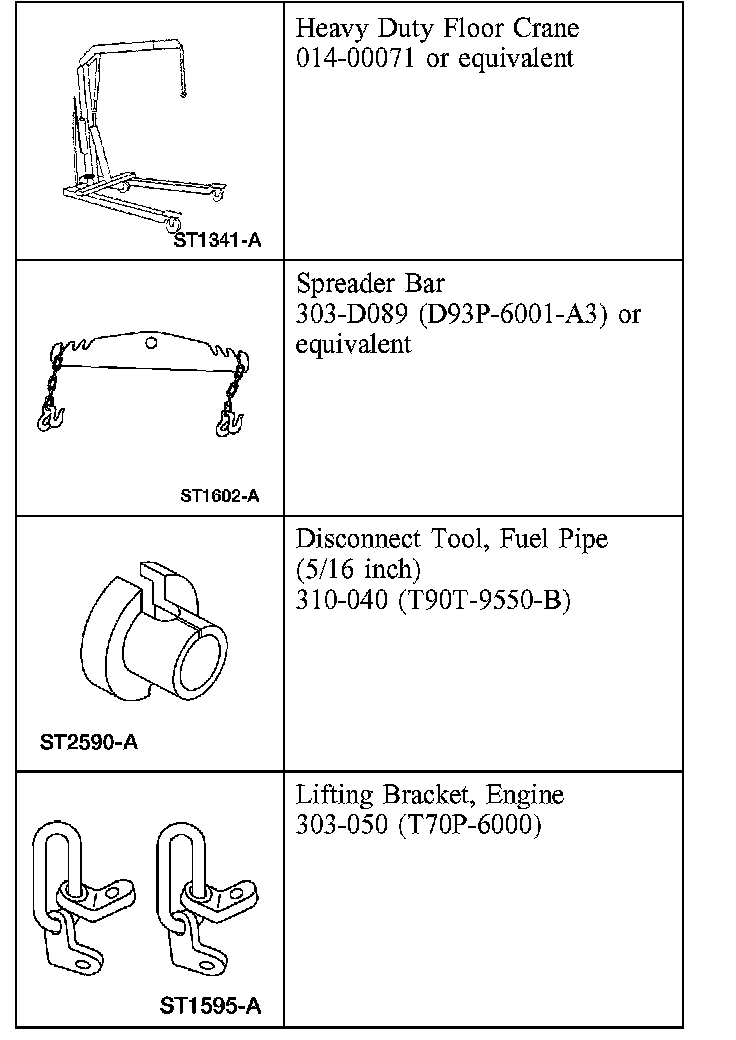

Special Tools And Equipment:

Special tool(s)

All Vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Relieve the fuel pressure.
3. Disconnect the battery ground cable.
4. Recover the A/C system.
5. Drain the engine cooling system.
6. Drain the engine oil.
7. Remove the hood.





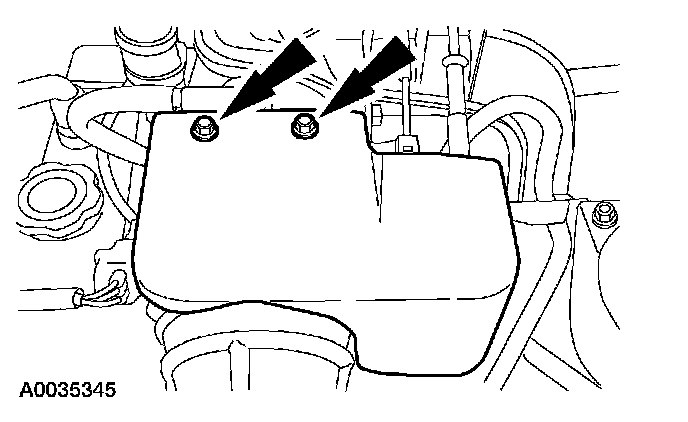

8. Remove the accelerator control snow shield.
9. Remove the air cleaner outlet tube.





10. Remove the upper radiator hose.





11. Remove the lower radiator hose.
12. Remove the fan and shroud.





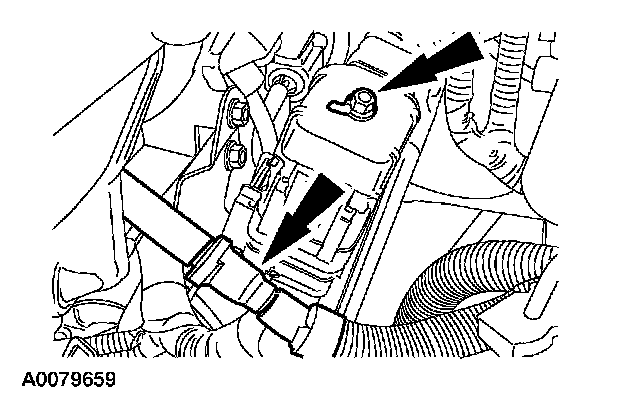

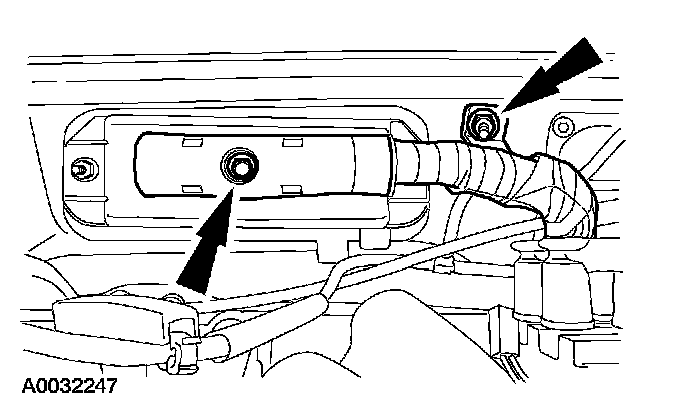

13. Disconnect the Powertrain Control Module (PCM) electrical connector. Remove the retaining nut on the harness clamp. Position the harness on the engine.

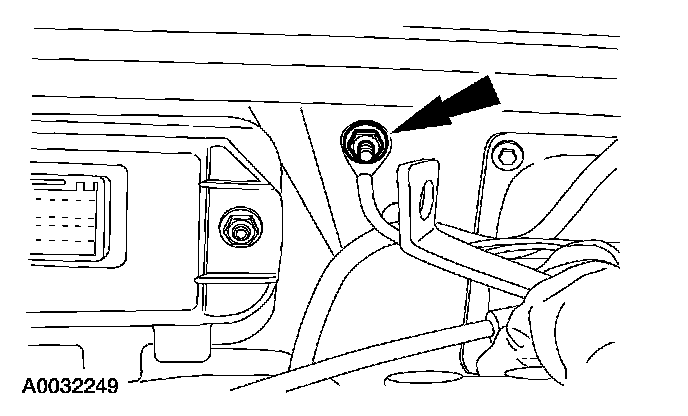

14. Remove the ground stud for the PCM.

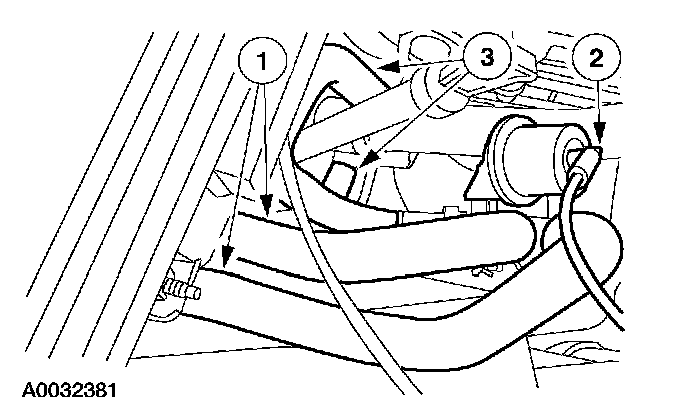

15. Remove the heater hose assembly.
1 Disconnect the heater hoses at the bulkhead.
2 Disconnect the vacuum hose.
3 Disconnect the heater hoses at the engine and remove the assembly.





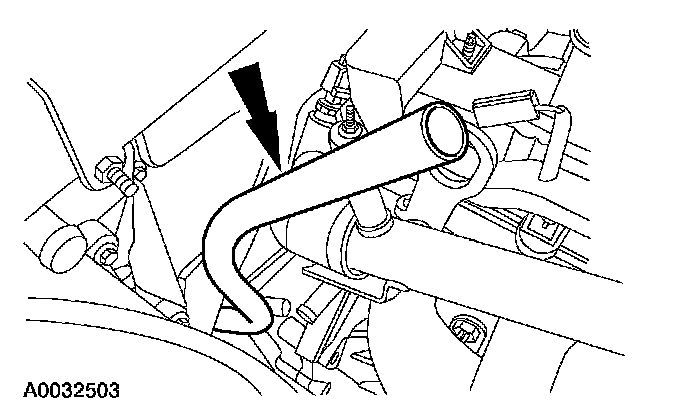

16. Disconnect the vacuum hose to the vacuum reservoir.





17. Disconnect the engine-to-degas bottle bypass hose.





18. Disconnect the degas bottle-to-engine supply hose.

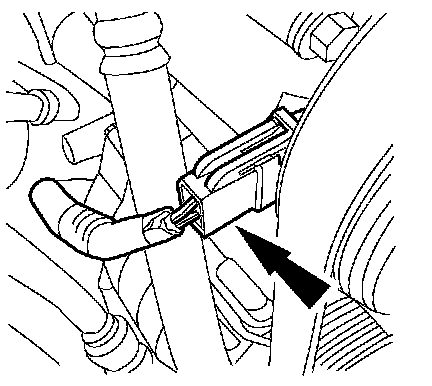

19. Disconnect the A/C compressor clutch electrical connector.





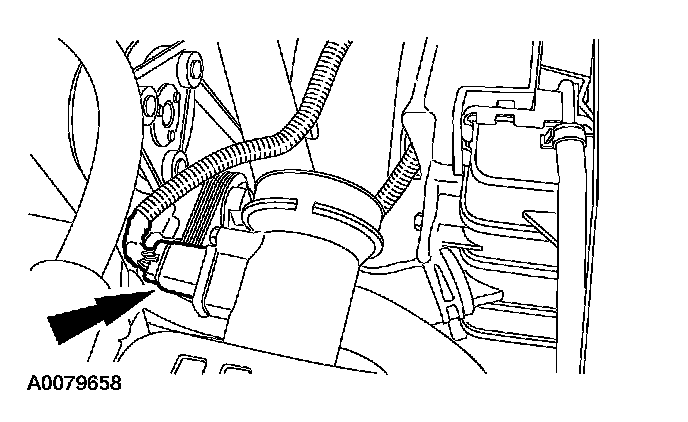

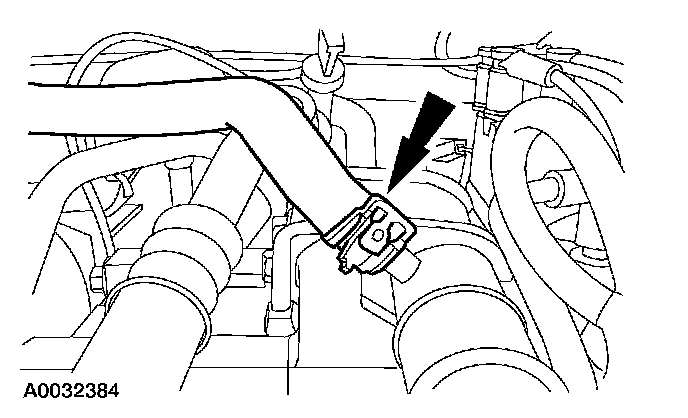

20. Disconnect the Mass Airflow Sensor (MAF) electrical connector.





21. Disconnect the A/C compressor manifold. Plug the lines and the compressor ports.

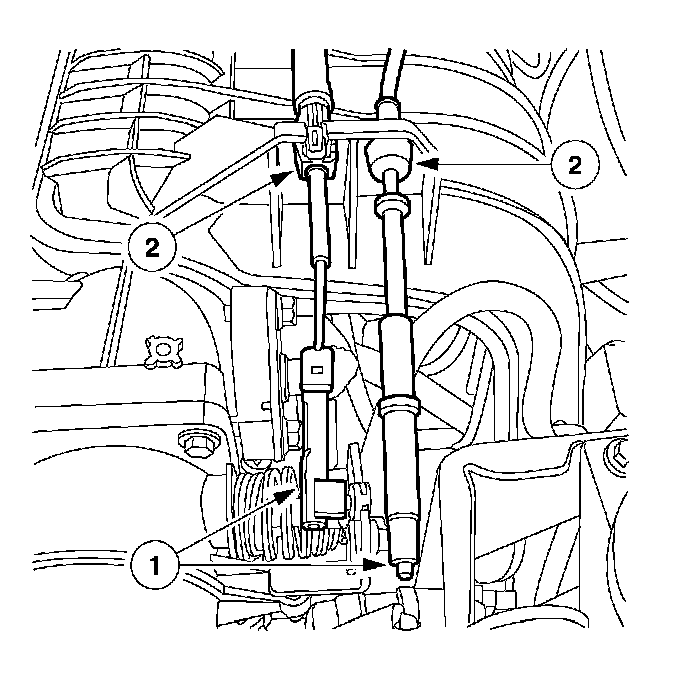

22. Position the accelerator and speed control cables aside.
1 Disconnect the accelerator cable and speed control cable (if so equipped) from the throttle linkage.
2 Disconnect the accelerator cable and speed control cable (if so equipped) from the mounting bracket and position out of the way.





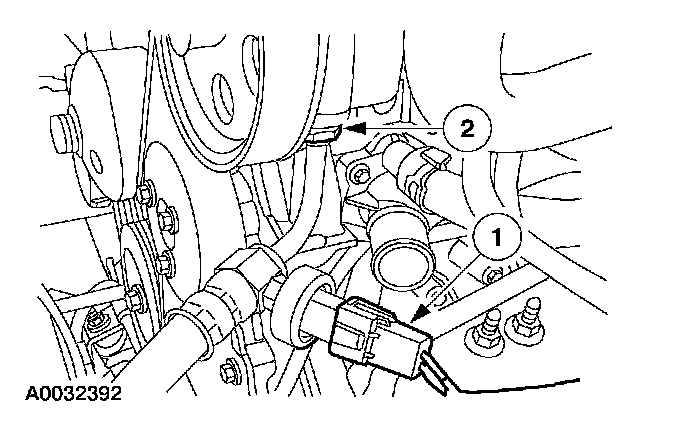

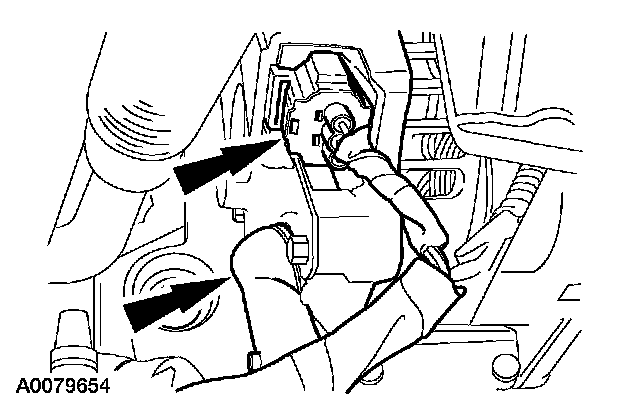

23. Disconnect and position aside the following:
1 the Power Steering Pressure (PSP) switch electrical connector
2 the high-pressure power steering hose

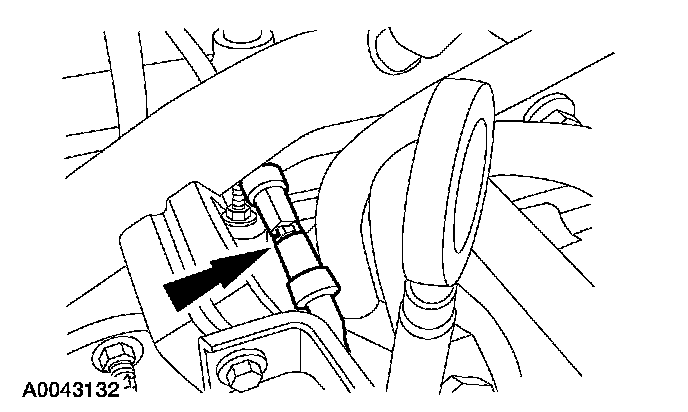

24. Disconnect the fuel supply tube.





25. Disconnect the following:
^ 42-pin electrical connector
^ evaporative purge hose





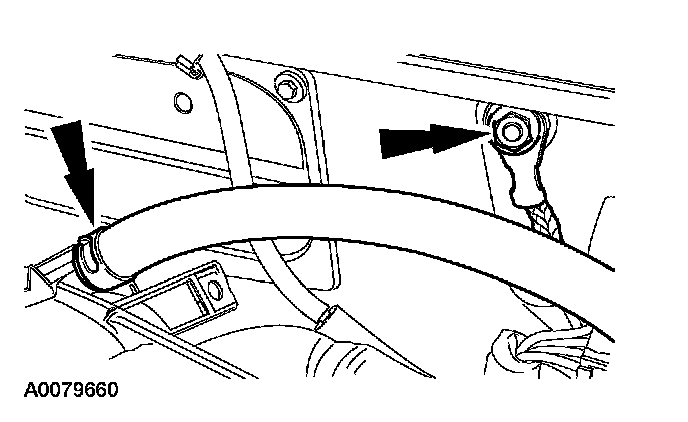

26. Disconnect the brake booster vacuum hose and the engine ground strap.

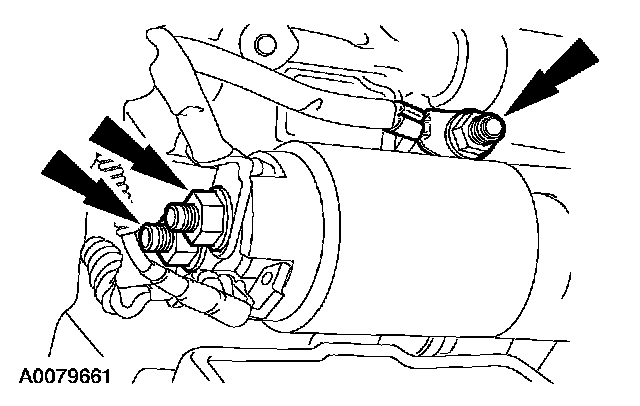

27. Disconnect the positive battery cable. Disconnect the negative battery cable. Disconnect the solenoid control wire at the starter.

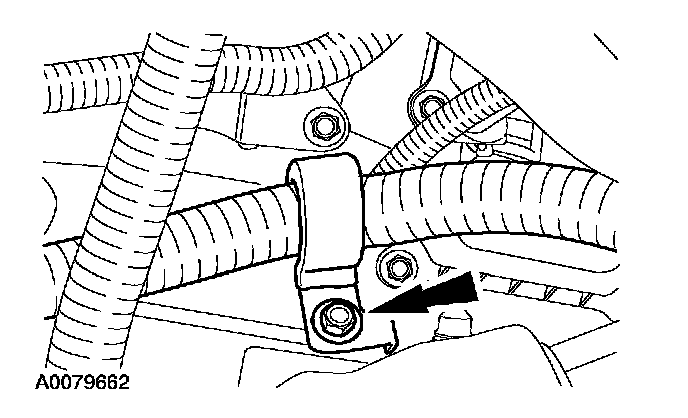

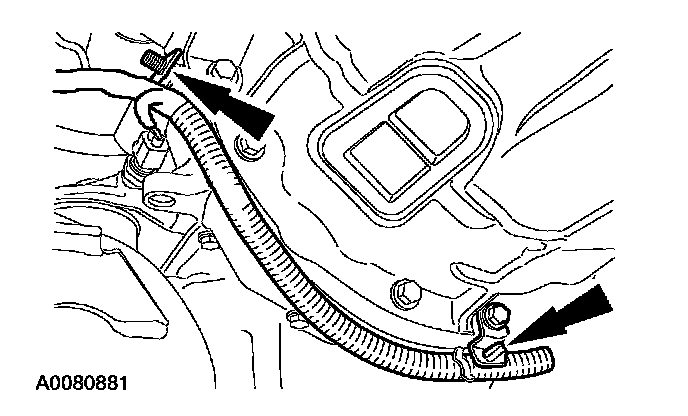

28. Remove the starter wiring harness clamp bolt and position the wiring harness out of the way.





29. Position the RH splash shield out of the way.





30. Disconnect the alternator electrical connections.





31. Detach alternator wiring pin-type retainer.





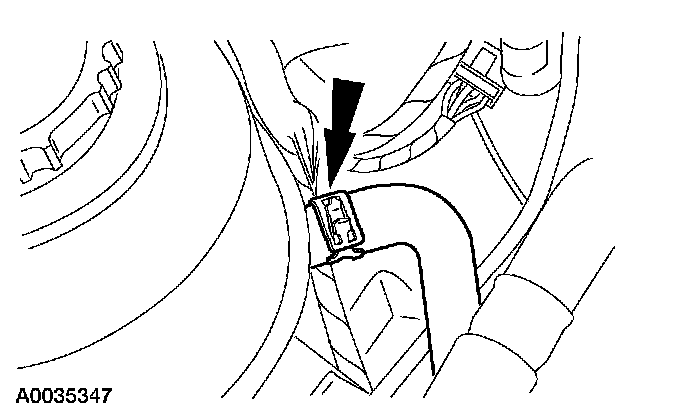

32. Disconnect the block heater electrical connector, if so equipped.





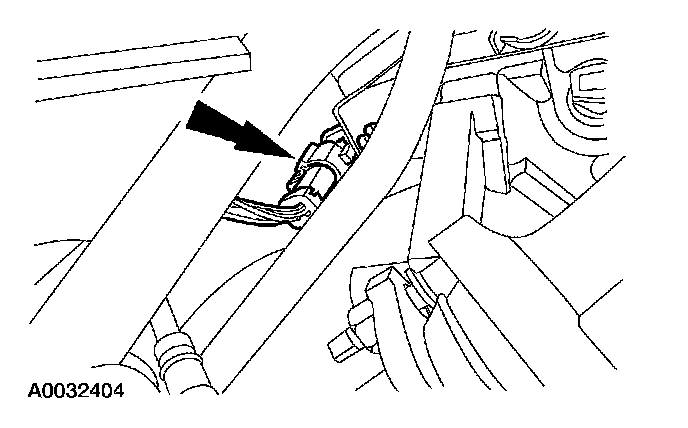

33. Disconnect the front Heated Oxygen Sensor (HO2S) electrical connector at the bell housing.

Vehicles with automatic transmission

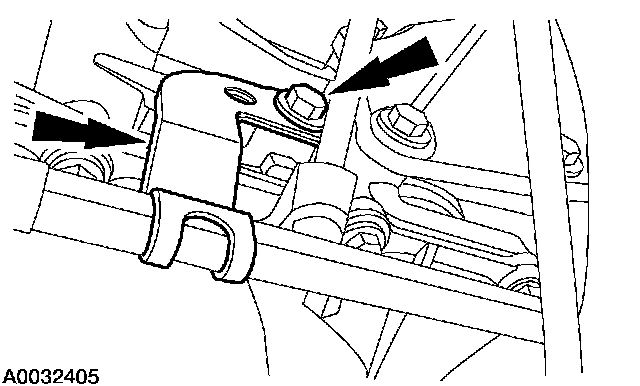

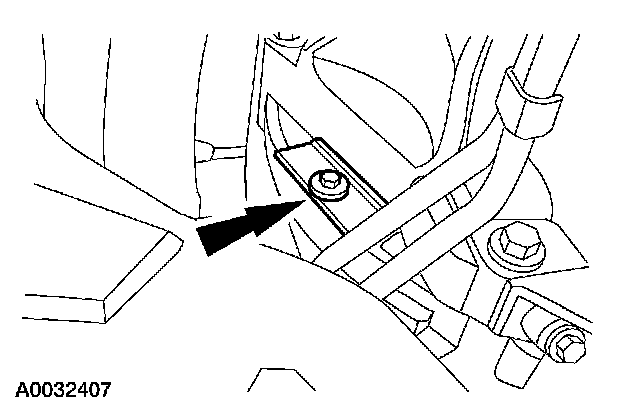

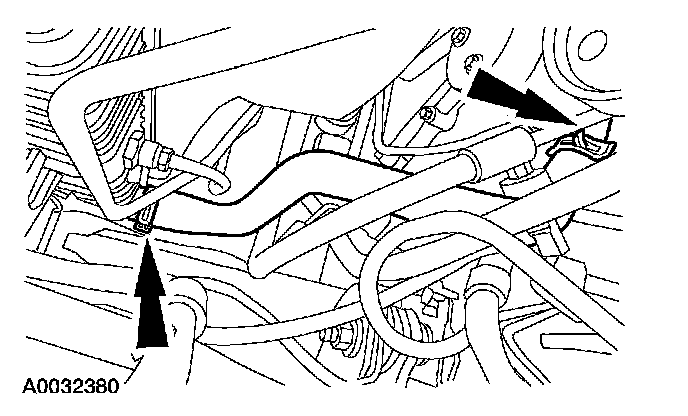

34. Remove the bolt retaining the transmission cooling tubes to the engine. Remove the bracket.

All vehicles





35. Remove the transmission dust shield.

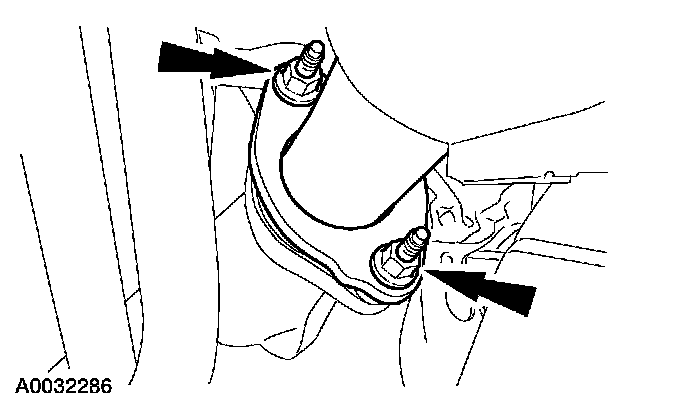

36. Remove the exhaust manifold-to-front pipe nuts.





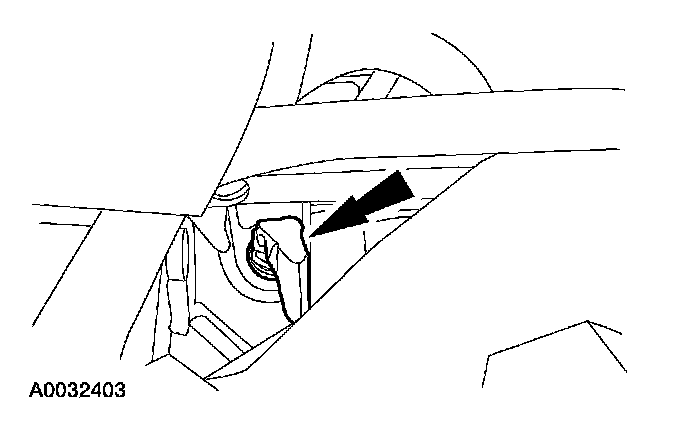

37. Disconnect the HO2S electrical connector at the rear of the transmission.

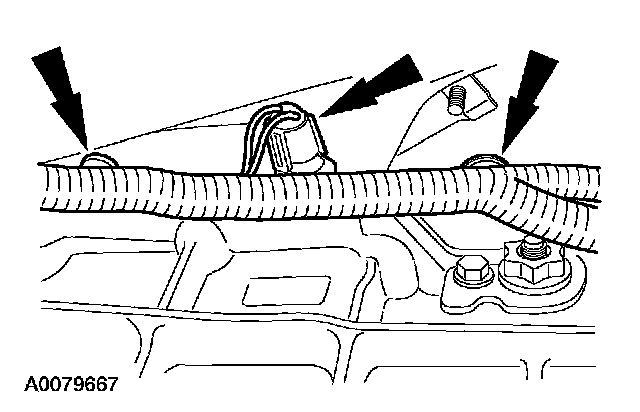

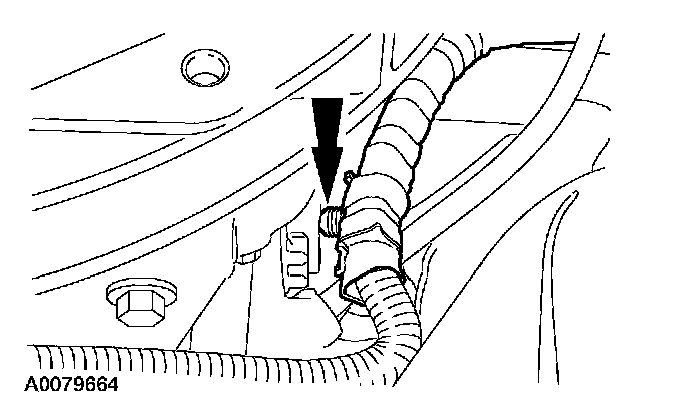

38. Remove the engine wiring harness pin-type retainer.





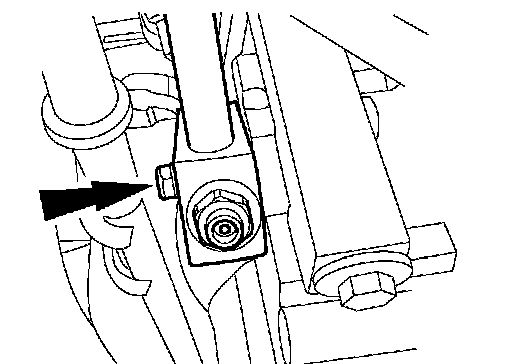

39. Remove the engine wiring harness anchor and the pin-type retainer, then position the wiring harness aside.

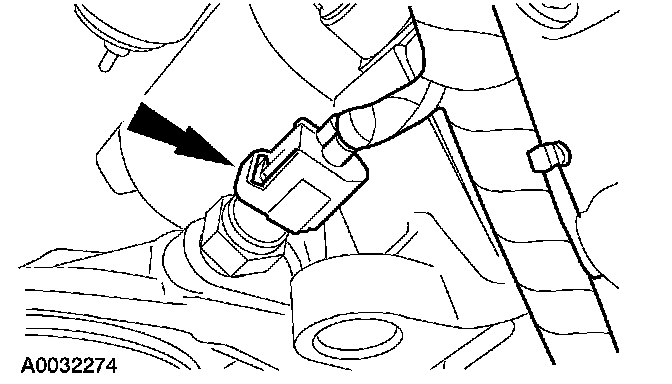

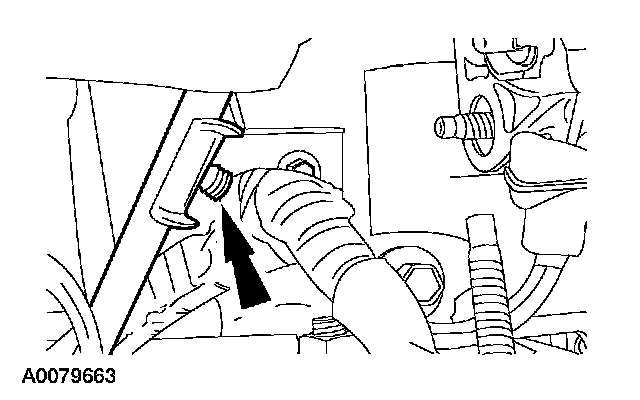

40. Disconnect the oil pressure sensor electrical connector.

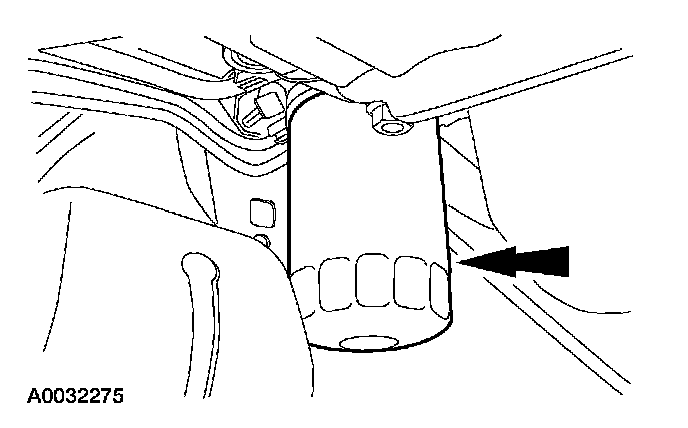

41. Remove the engine oil filter.

Vehicles with automatic transmission

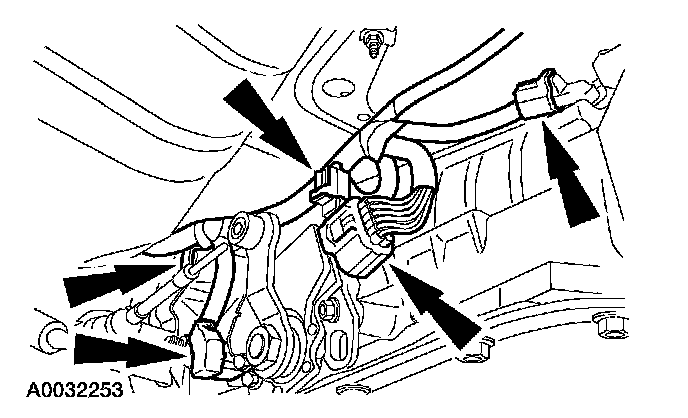

42. Disconnect the transmission wiring harness.
^ Disconnect the vehicle speed sensor, transmission range sensor, backup light switch and the transmission electrical connectors.
^ Disconnect the pin-type retainers and position the harness forward to the engine.

Vehicles with manual transmission

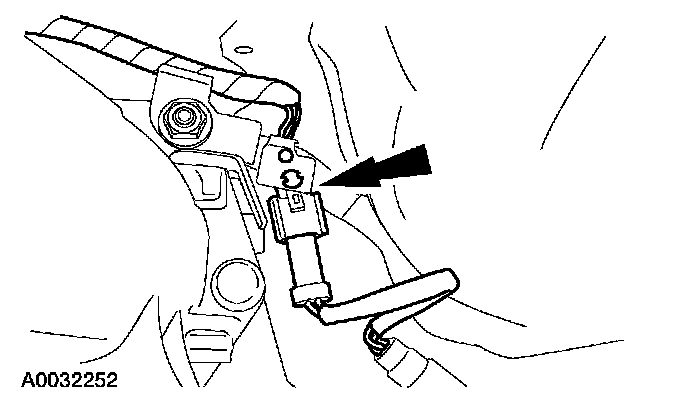

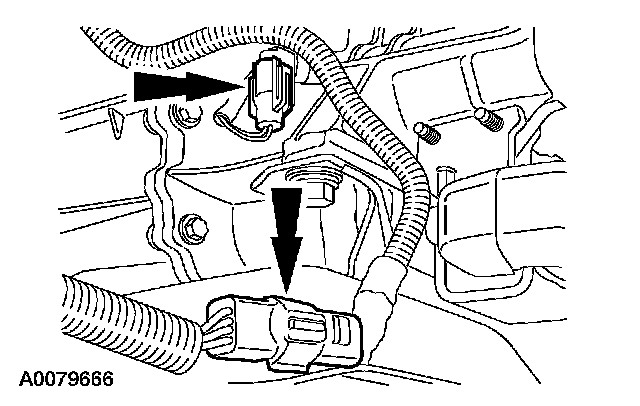

43. Disconnect the electrical connector on the crossmember and the speed sensor electrical connector.





44. Disconnect the reverse lamp electrical connector and the two wiring pin-type retainers.

All Vehicles

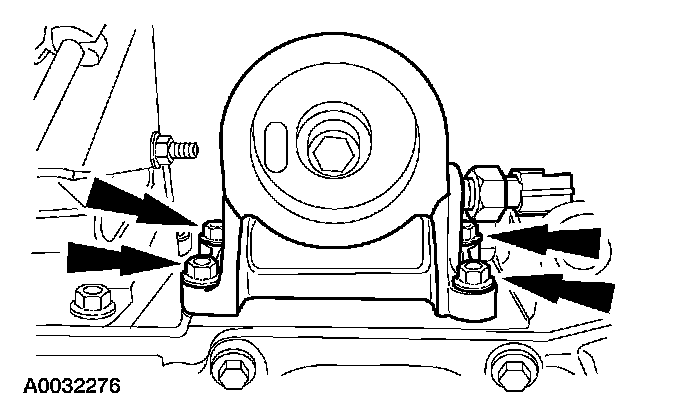

45. Remove the oil filter adapter.
46. Remove the bolts and the starter.

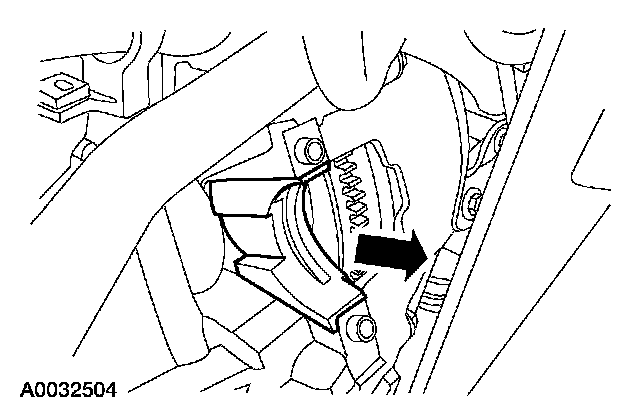

47. Remove the starter dust shield.

Vehicles with automatic transmission






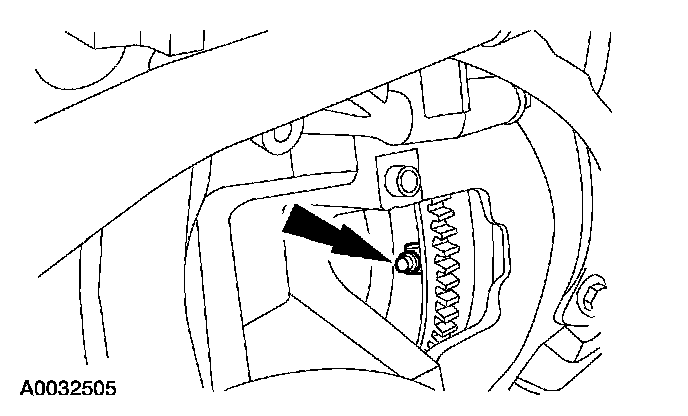

48. NOTE: Mark one stud and the flexplate for assembly reference.

Remove the four torque converter nuts.

All vehicles






49. NOTE: Leave the two side bolts in until the engine is ready to be removed.

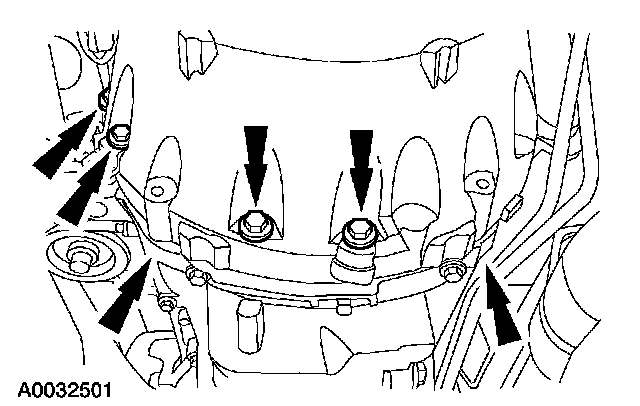

Remove nine of the transmission-to-engine bolts.

Vehicles with automatic transmission





50. Remove the transmission fluid indicator and tube assembly.

All vehicles

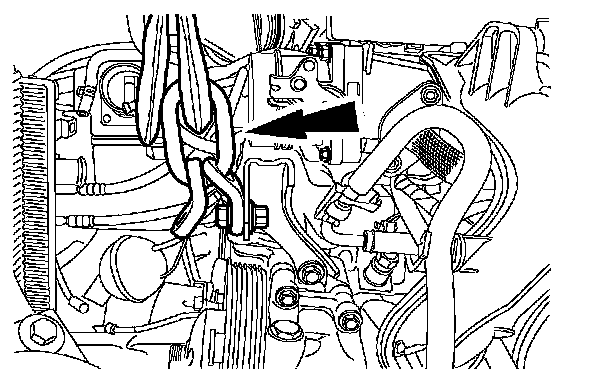

51. Install engine lifting bracket.
52. Support the transmission with a floor jack.

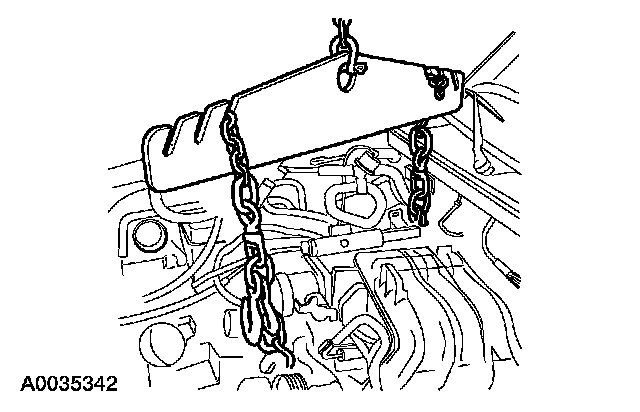

53. Support the engine with the Floor Crane, using the Spreader Bar.
54. Remove the two side transmission-to-engine bolts.






55. NOTE: Left side shown, right side similar.

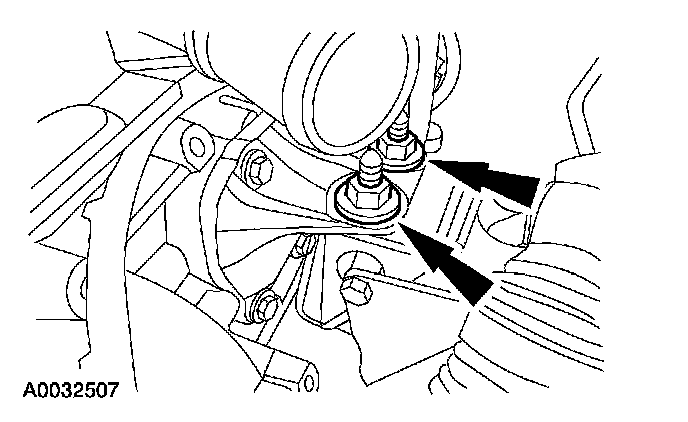

Remove the four engine support insulator nuts.
56. Remove the engine from the vehicle.
