Timing Cover: Specifications

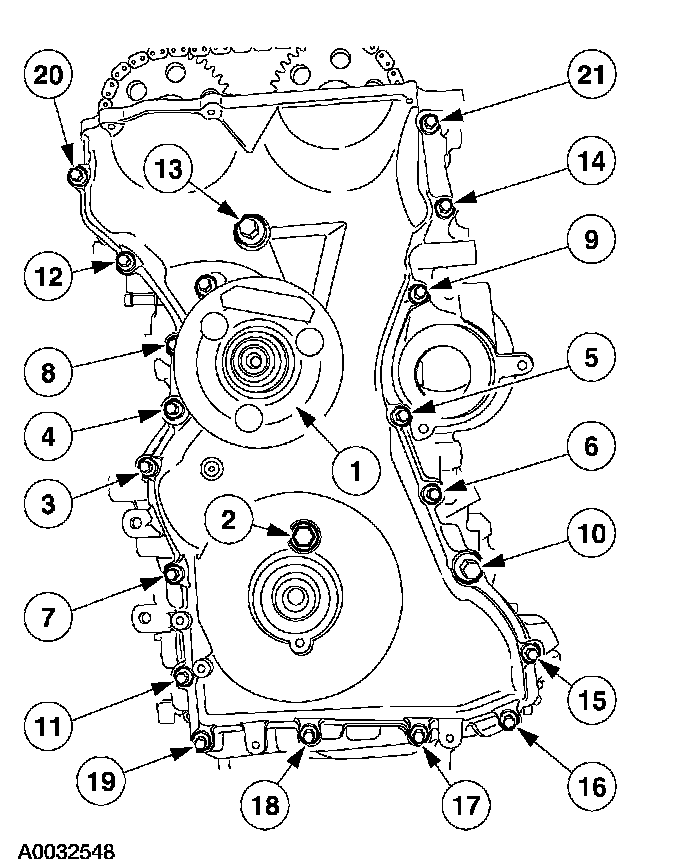

TORQUE SPECIFICATIONSENGINE FRONT COVER
Front Cover Bolts
Stage 1 8 mm bolts to 10 Nm (89 inch lbs.)
Stage 2 10 mm bolts to 25 Nm (18 ft. lbs.)
Stage 3 13 mm bolts to 48 Nm (35 ft. lbs.)
ENGINE FRONT COVER
Front Cover Bolts
Stage 1 8 mm bolts to 10 Nm (89 inch lbs.)
Stage 2 10 mm bolts to 25 Nm (18 ft. lbs.)
Stage 3 13 mm bolts to 48 Nm (35 ft. lbs.)
