PINPOINT TEST A: INCORRECT/ERRATIC DIRECTION OF AIRFLOW FROM OUTLET(S)

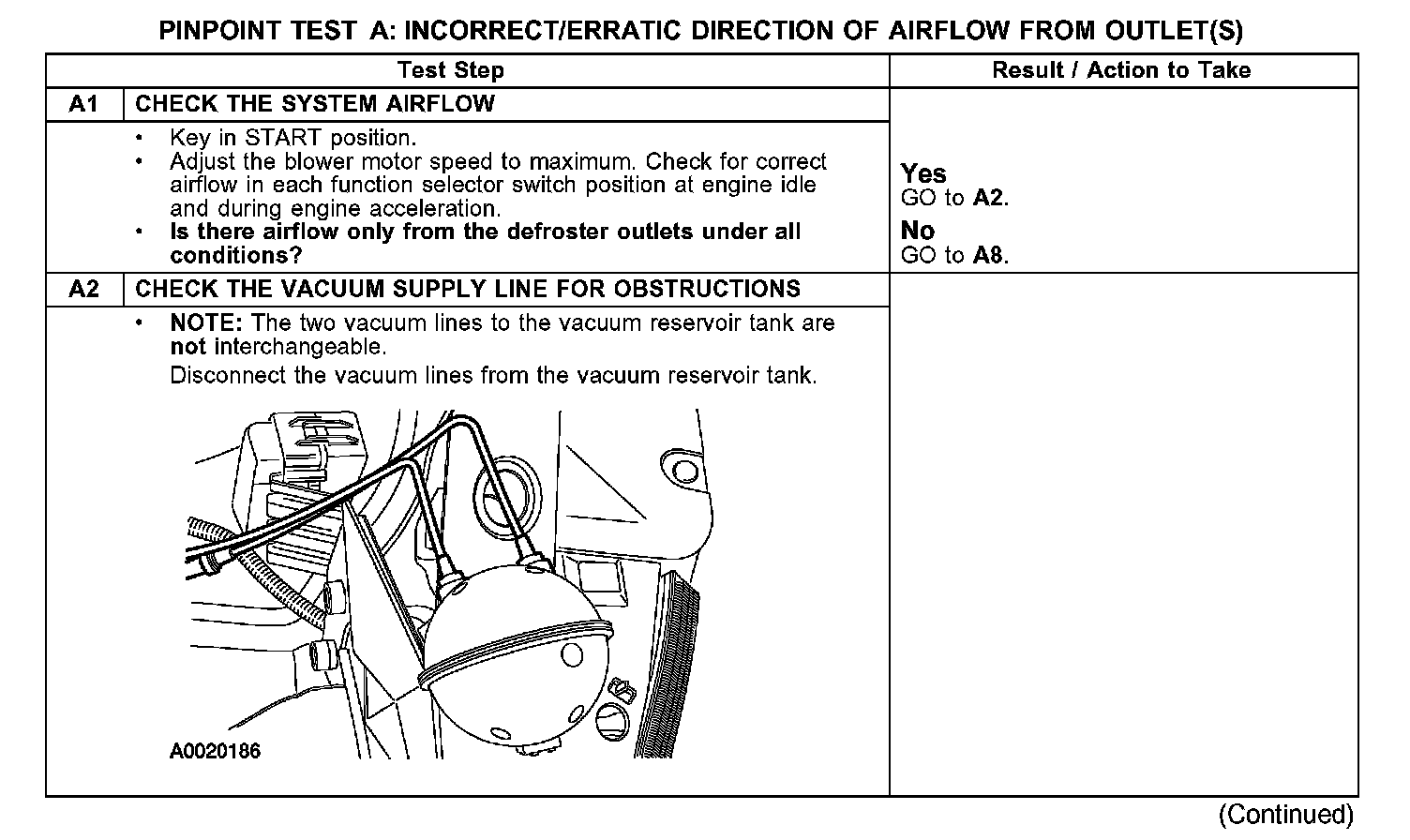

A1-A2:

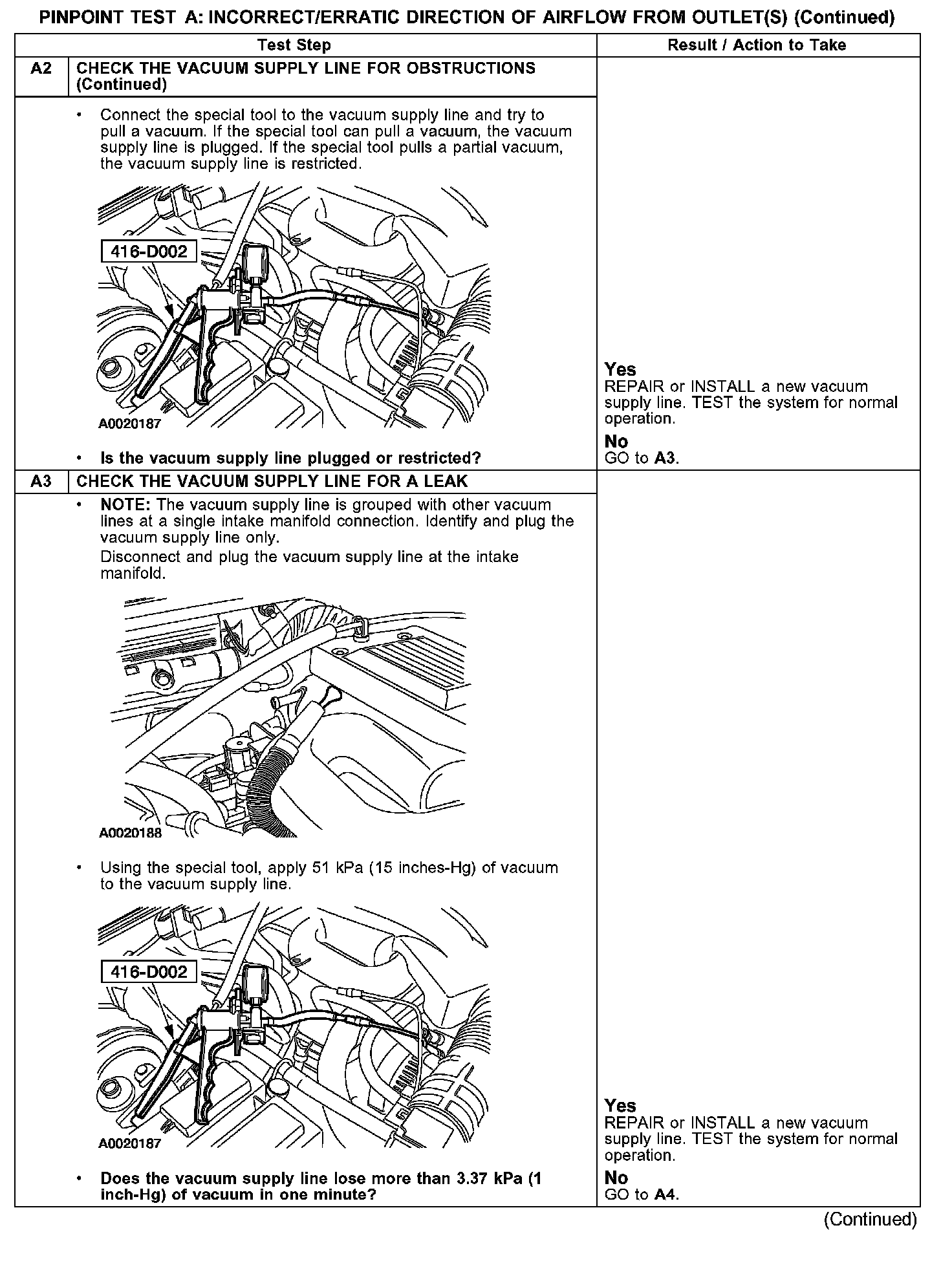

A2-A3:

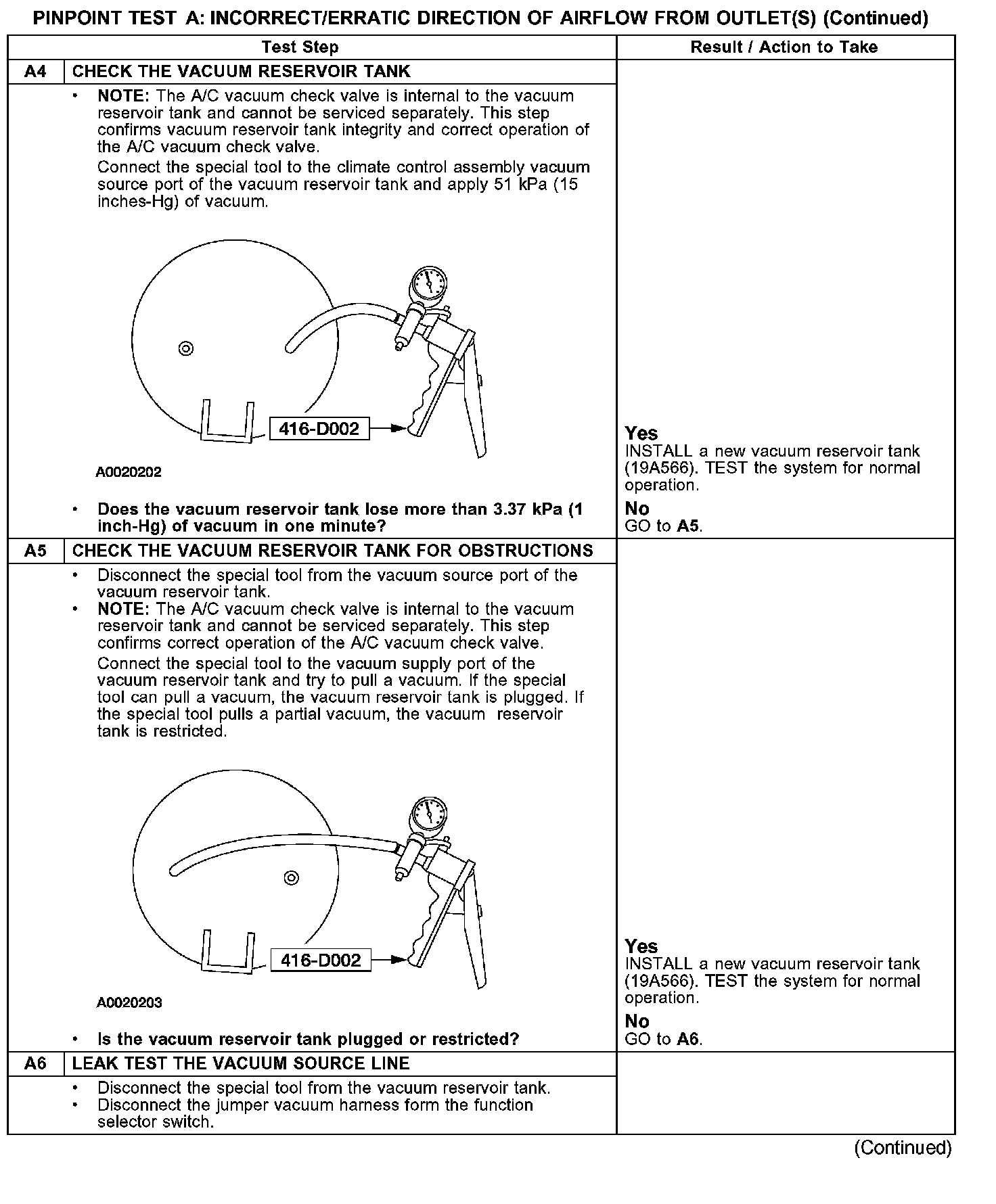

A4-A6:

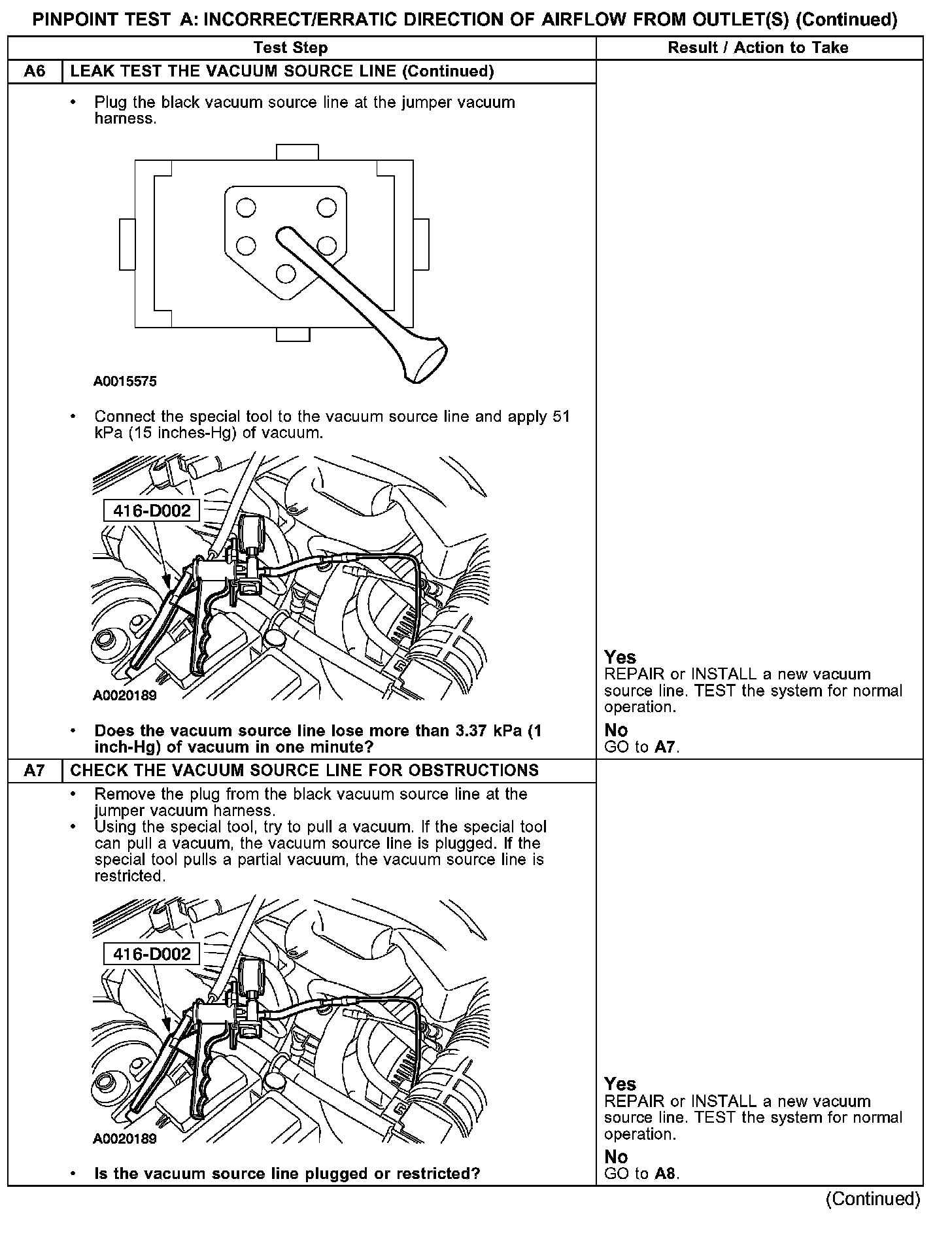

A6-A7:

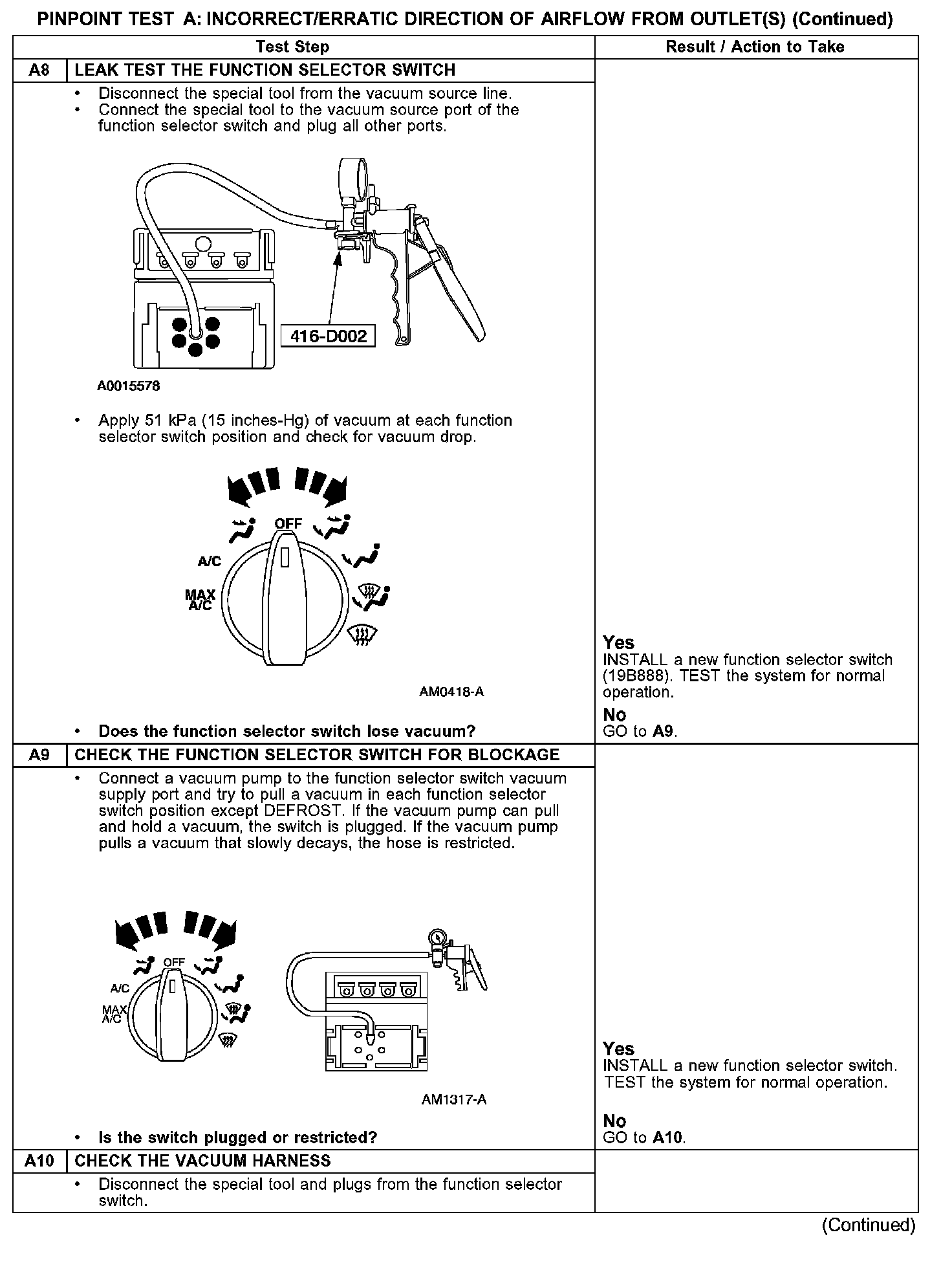

A8-A10:

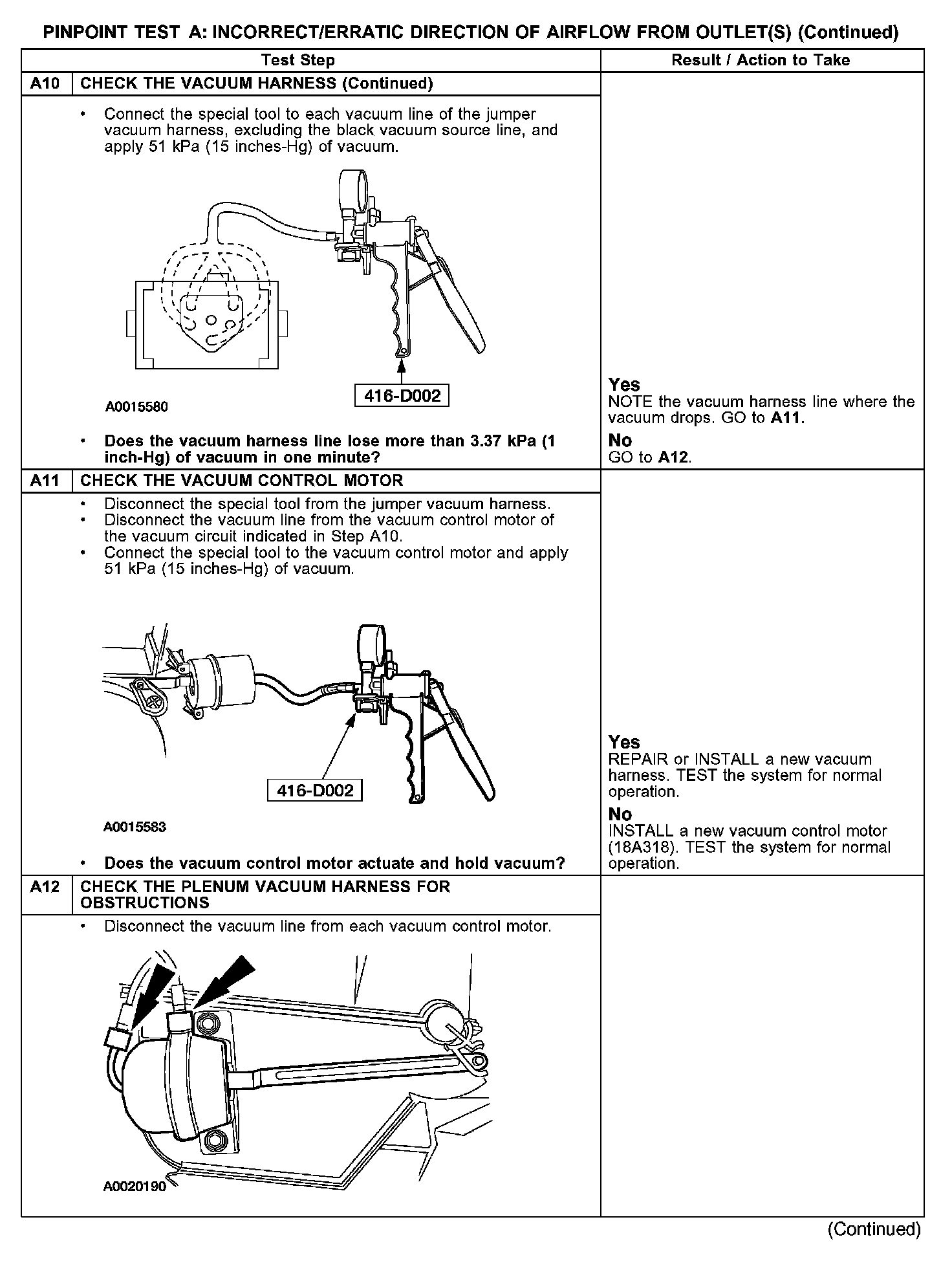

A10-A12:
A12-A13:
