Test B: Insufficient, Erratic, or No Heat
Test B: Insufficient, Erratic, or No Heat
PINPOINT TEST B: INSUFFICIENT, ERRATIC, OR NO HEAT

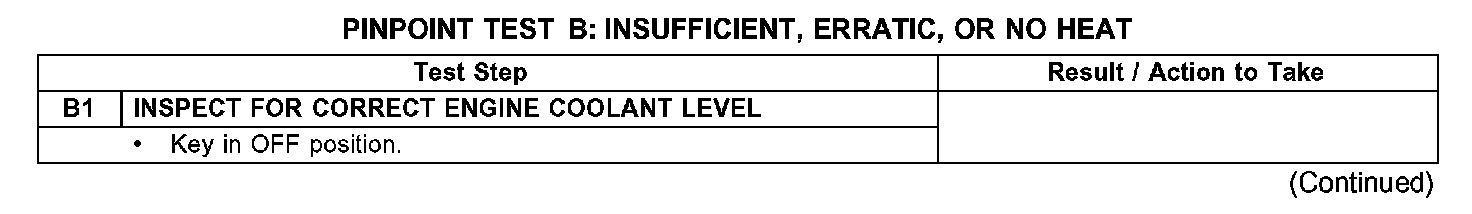

B1:

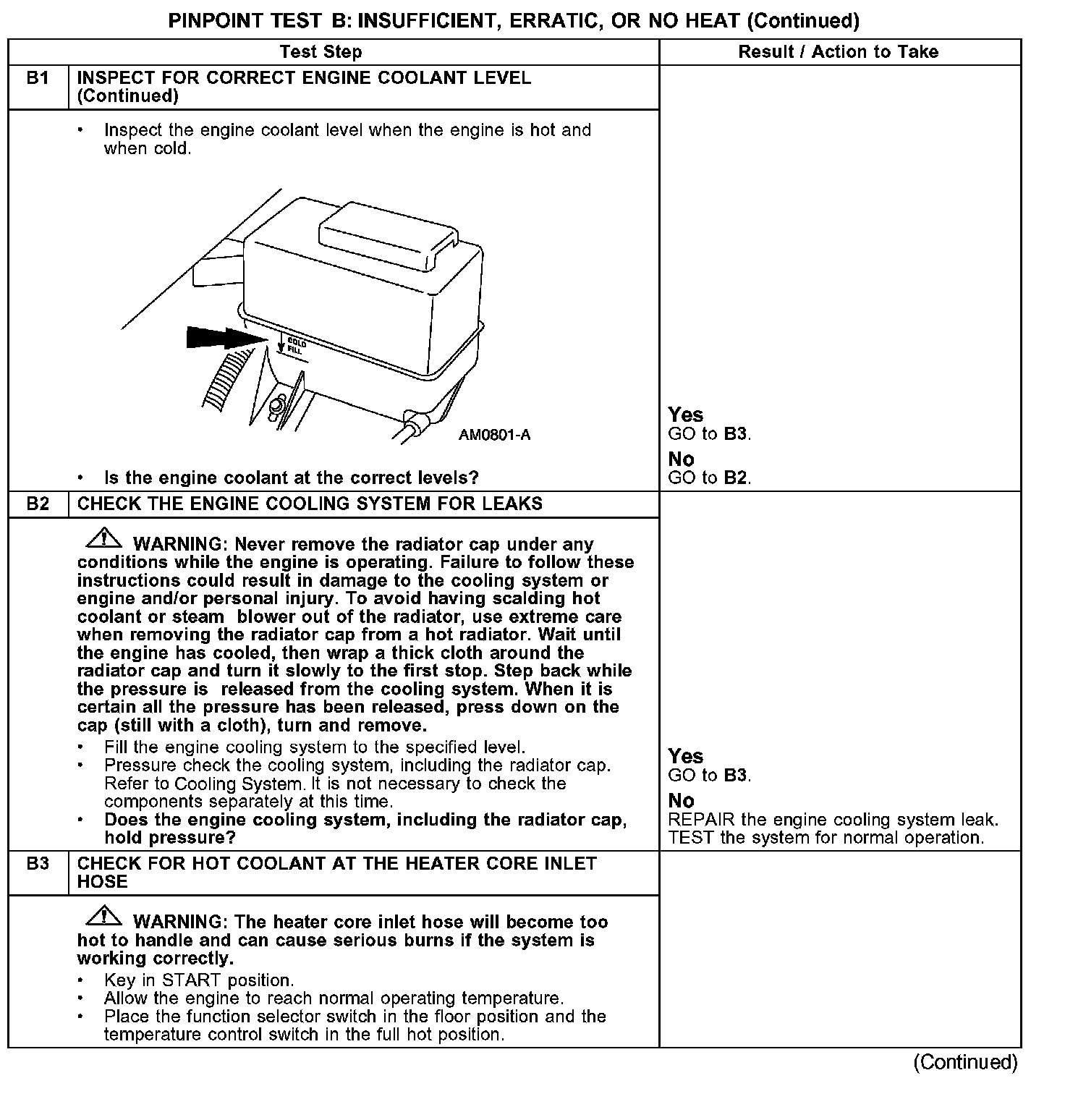

B1-B3:

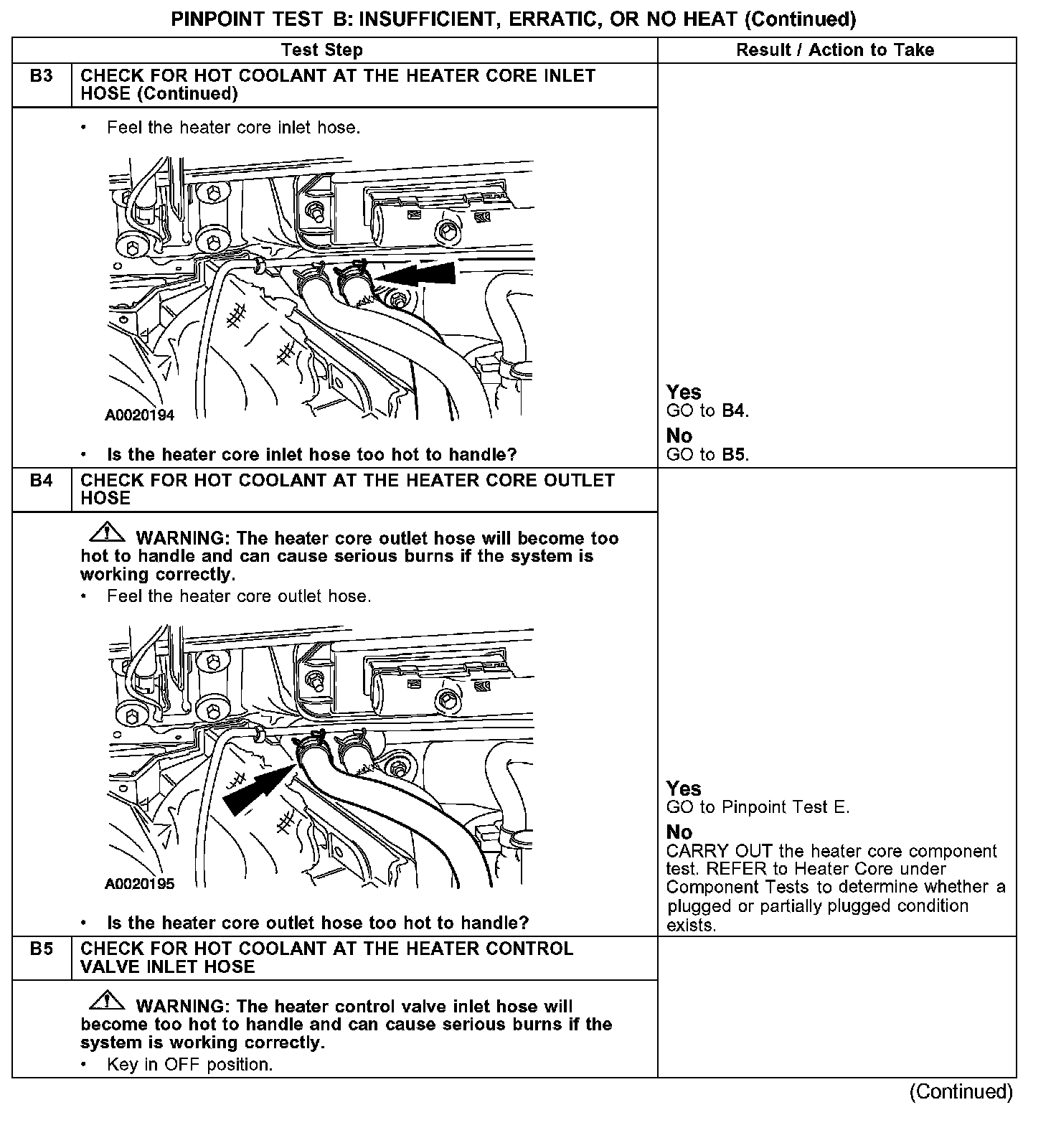

B3-B5:

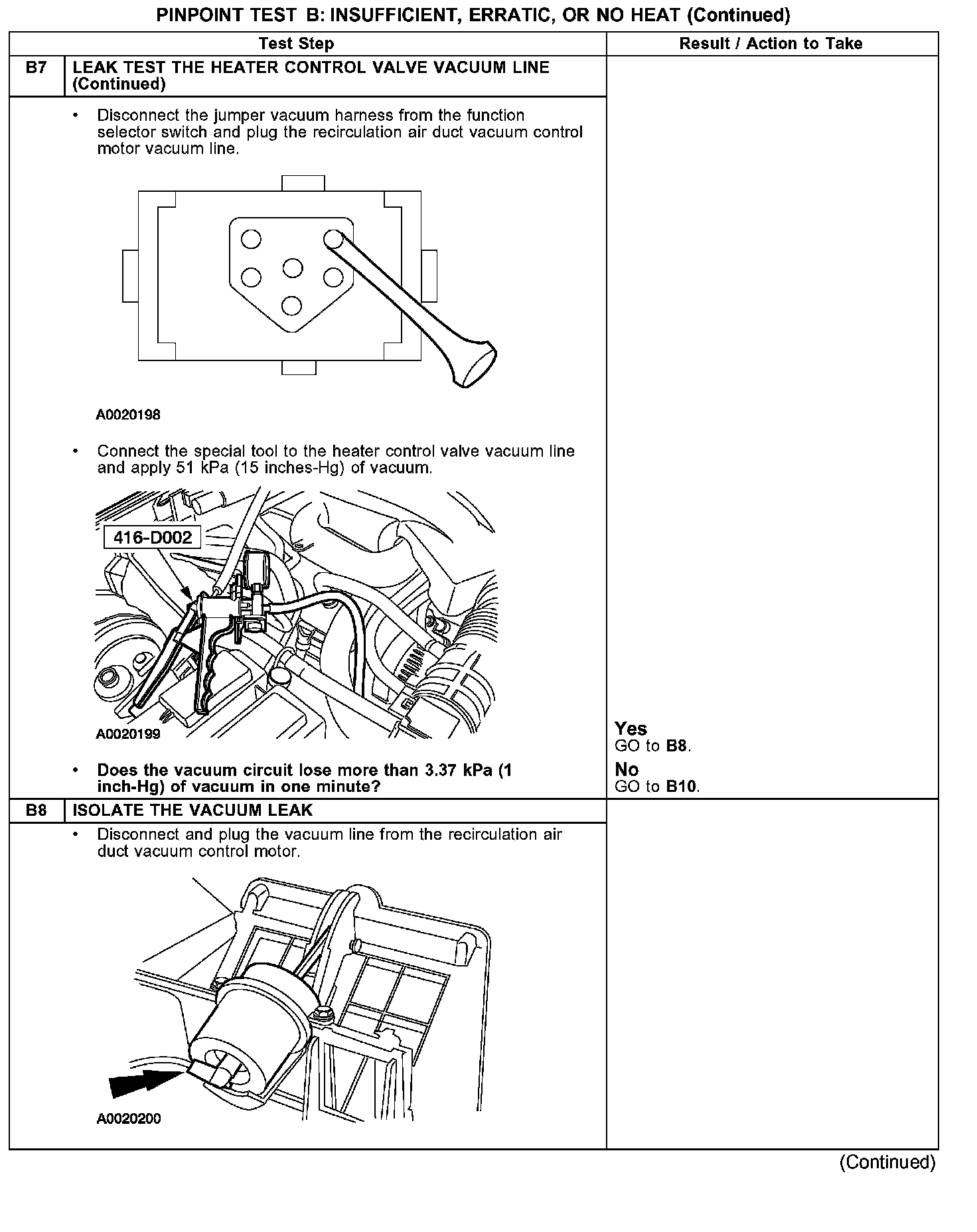

B5-B7:

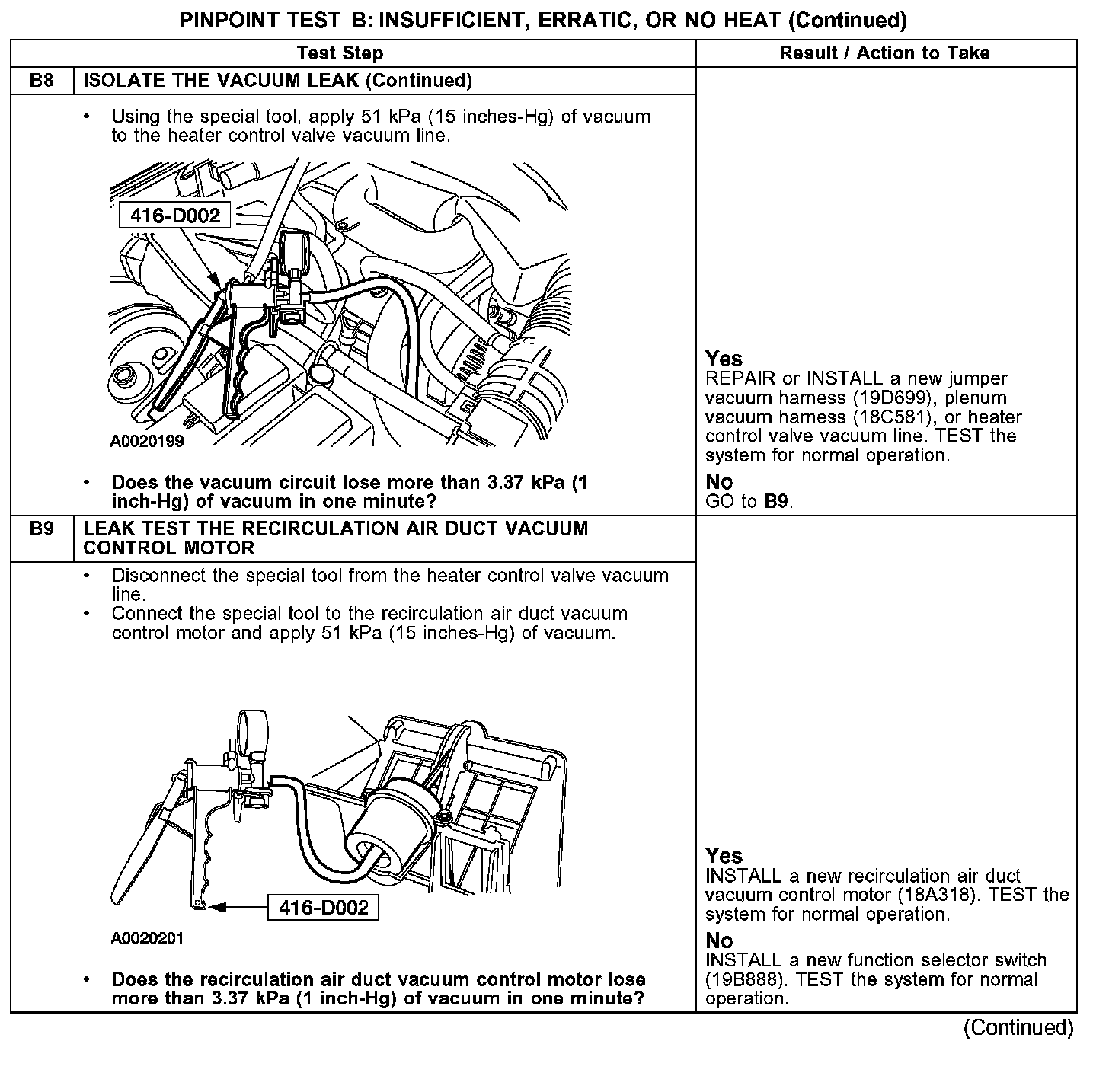

B7-B8:
B8-B9:

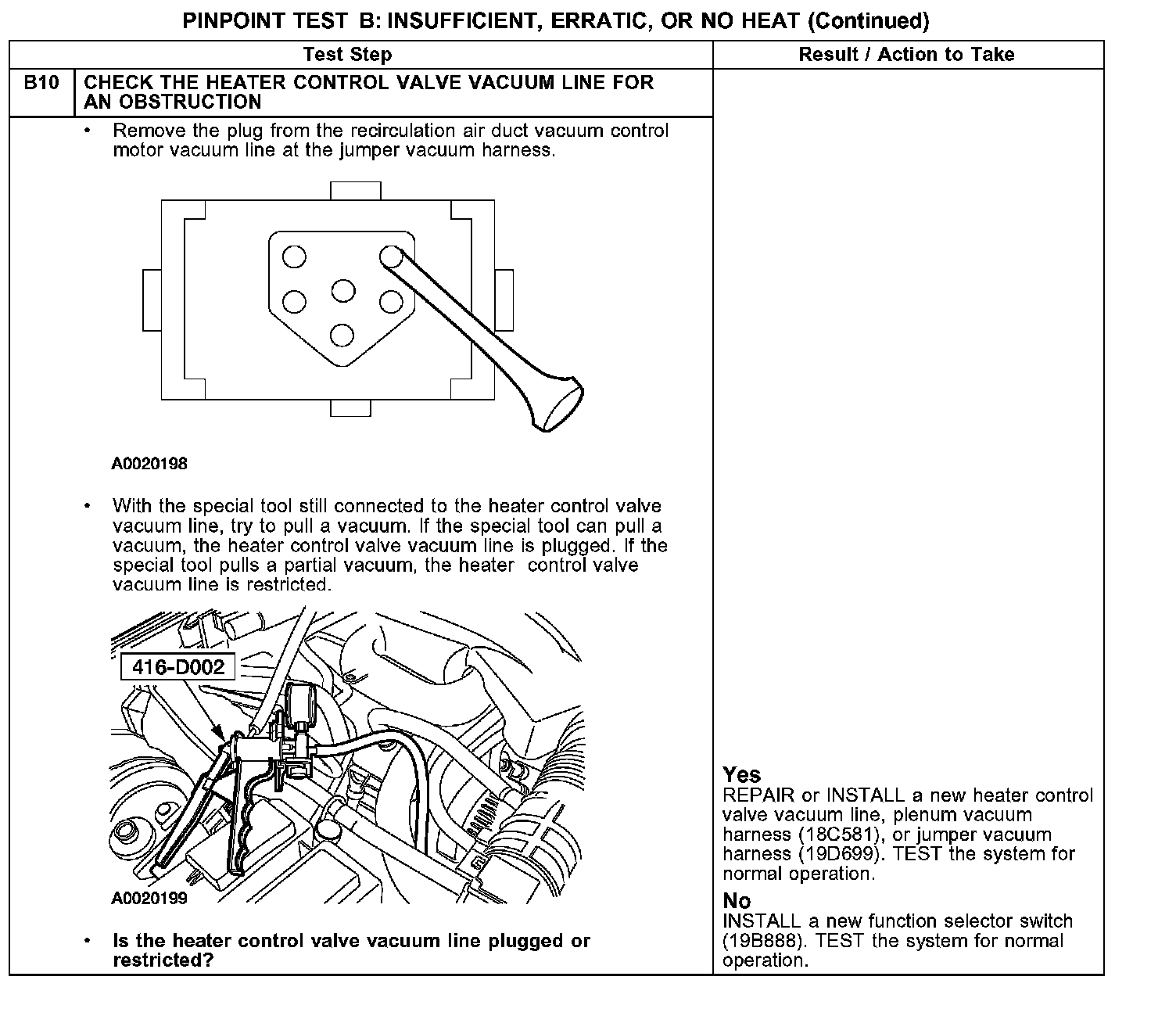

B10:
