Test B: The Instrument Cluster Illumination Is Inoperative
Test B: The Instrument Cluster Illumination Is Inoperative

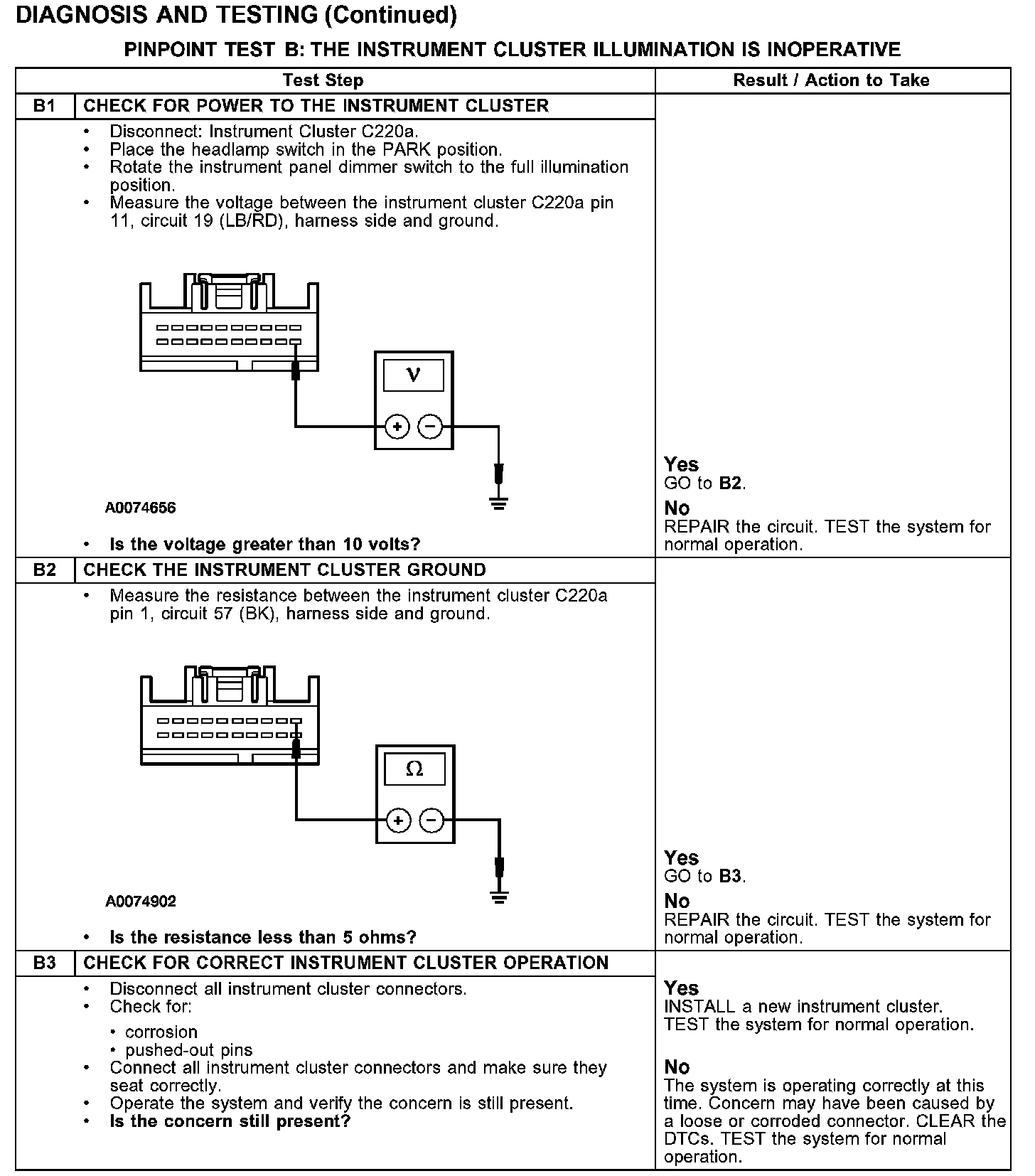

PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS INOPERATIVE
Test B1-B3:
