Test B: Incorrect Temperature Gauge Indication

PINPOINT TEST B: INCORRECT TEMPERATURE GAUGE INDICATION


B1:

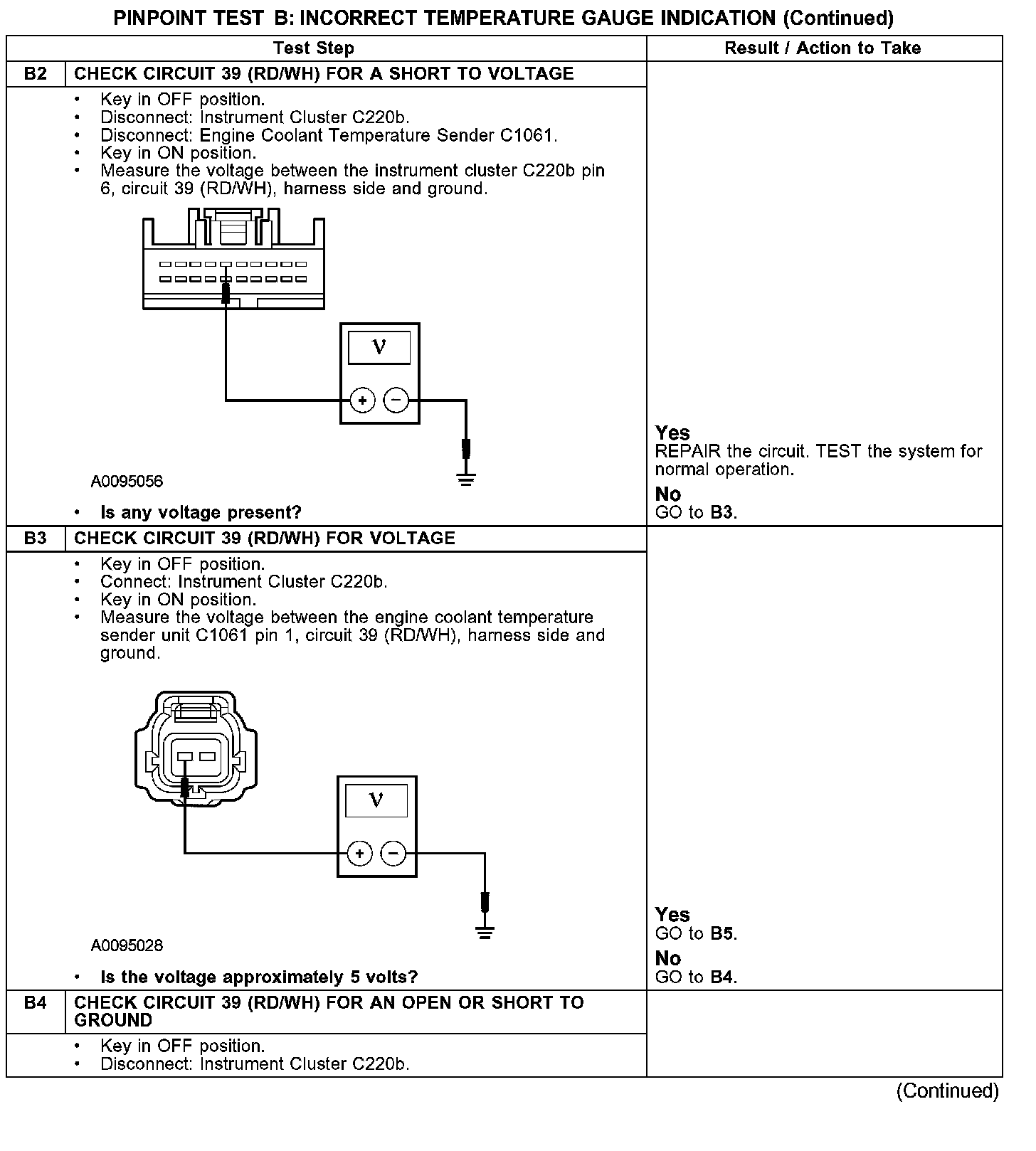

B2-B4:






B4-B6:

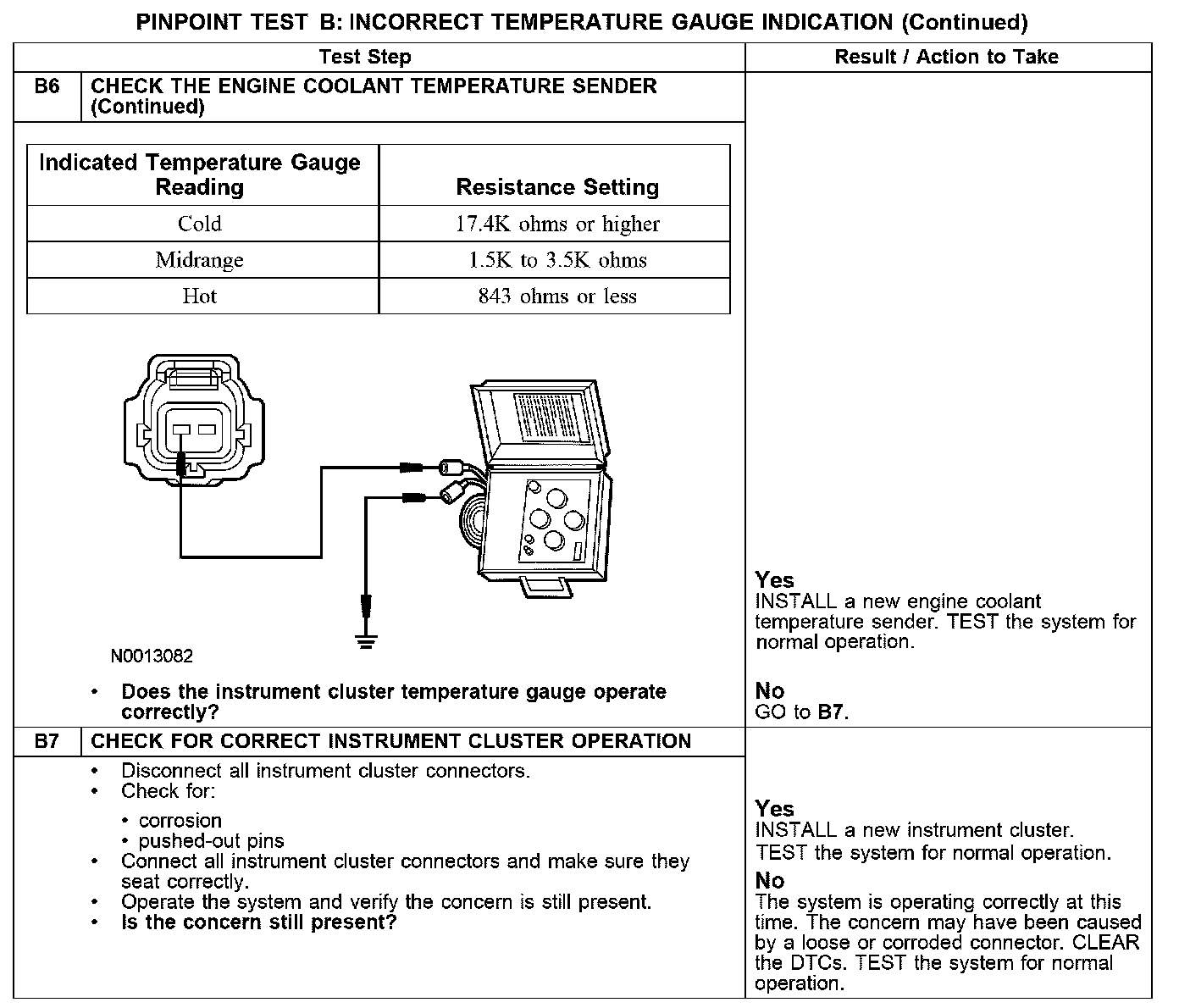

B6-B7:
