Test F: The Tachometer Is Inoperative

PINPOINT TEST F: THE TACHOMETER IS INOPERATIVE

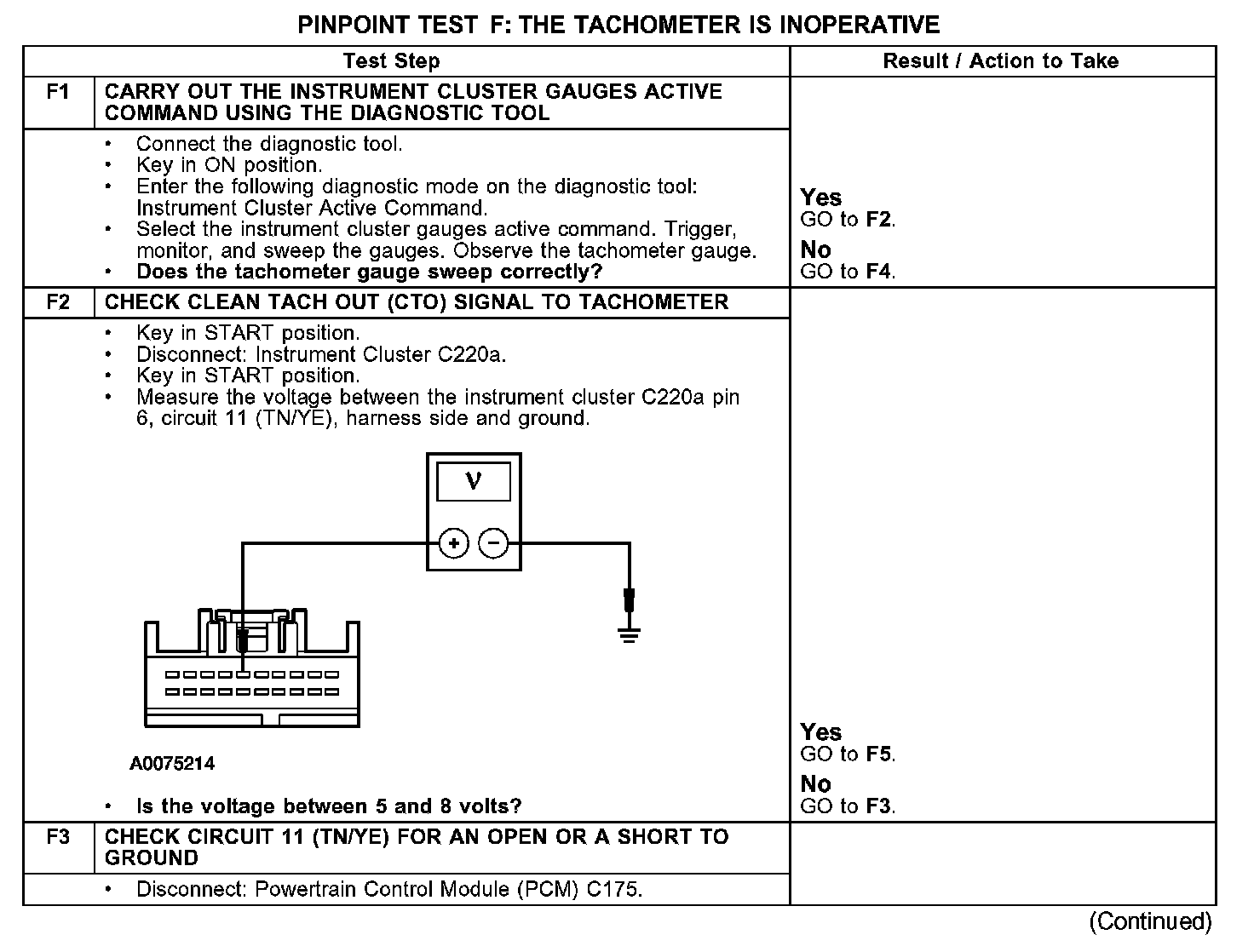

F1-F3:

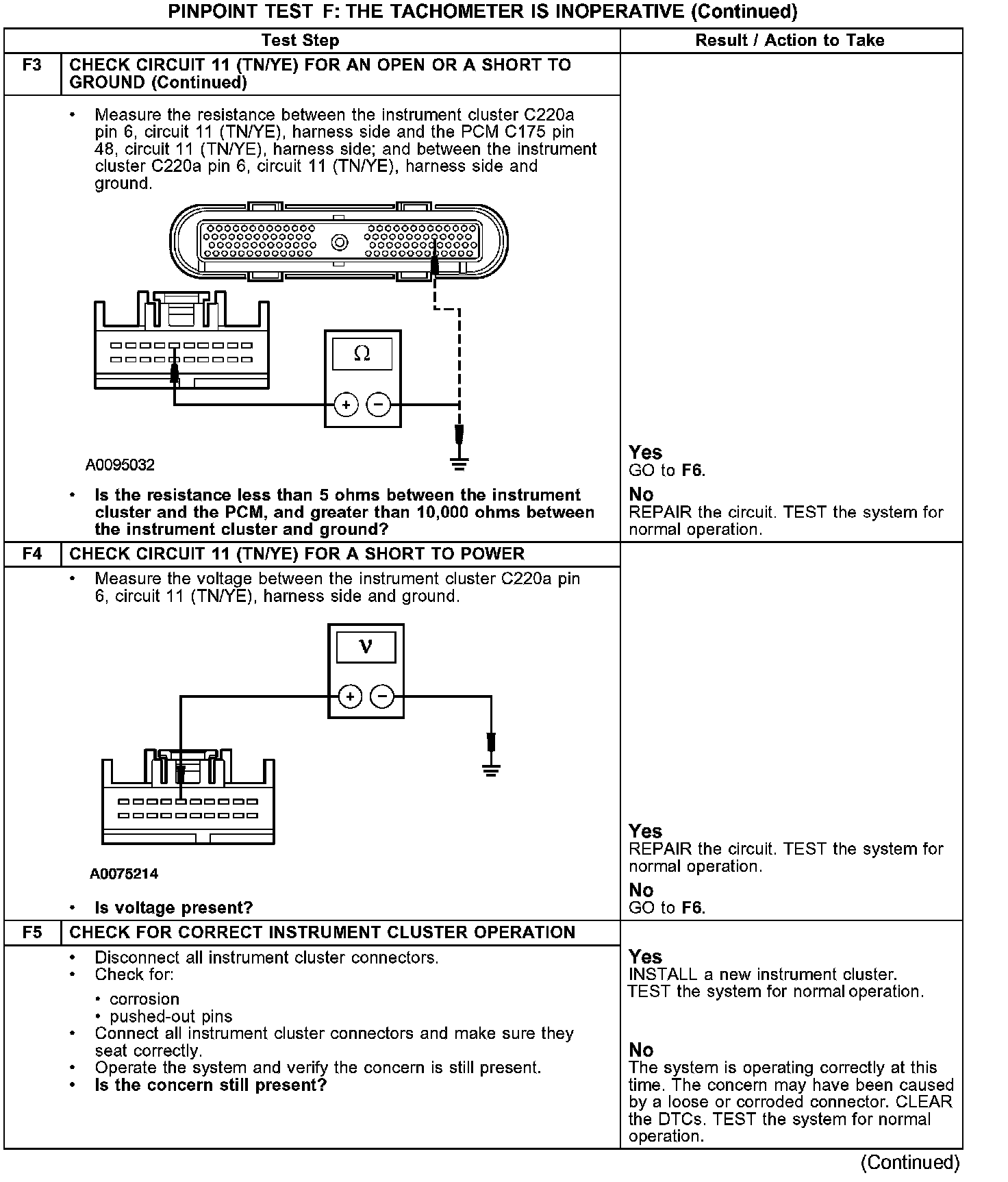

F3-F5:






F6:
