Test H: The Anti-Lock Brake System (ABS) Warning Indicator Is Never/Always On
Test H: The Anti-Lock Brake System (ABS) Warning Indicator Is Never/Always On
PINPOINT TEST H: THE ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR IS NEVER/ALWAYS ON

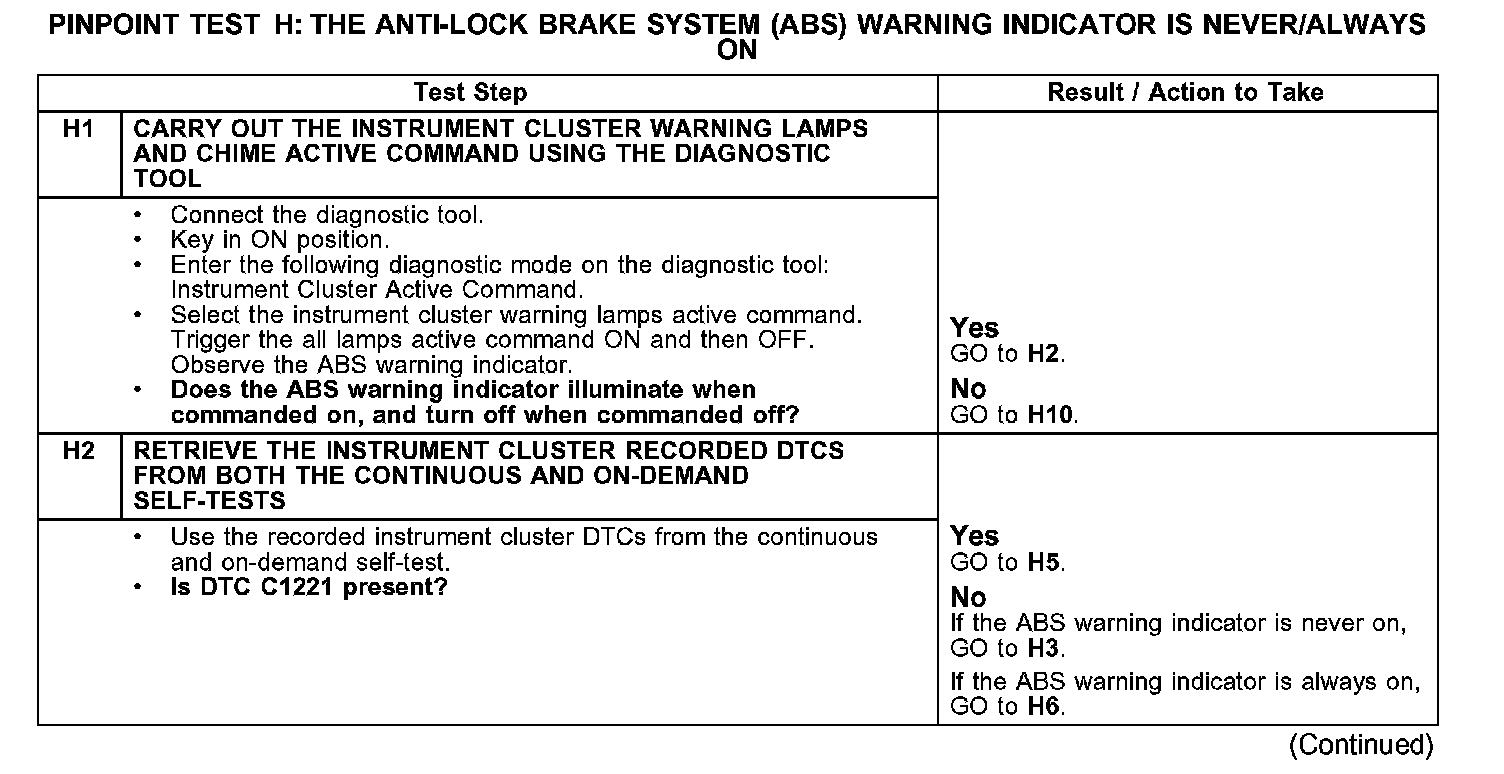

H1-H2:

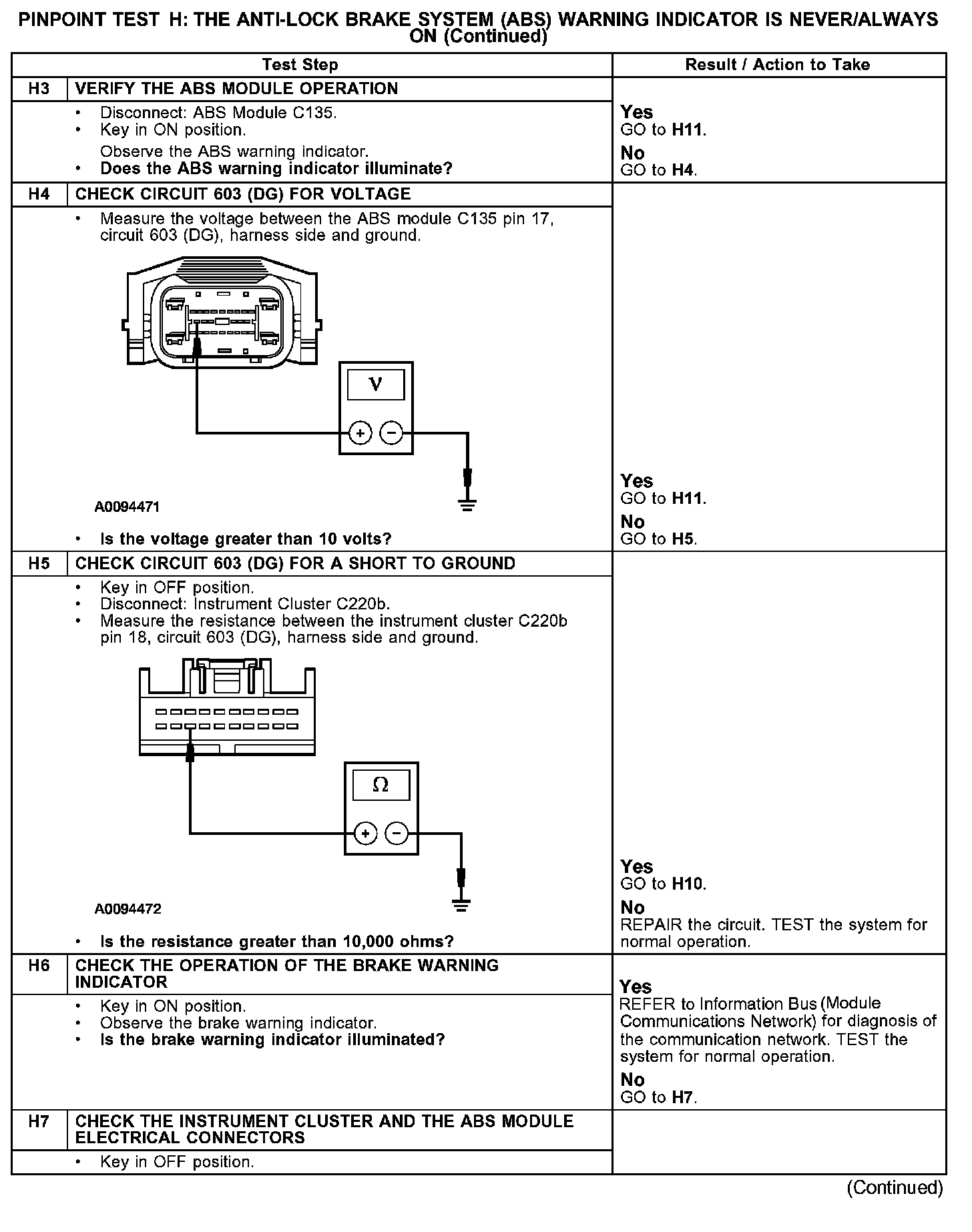

H3-H7:

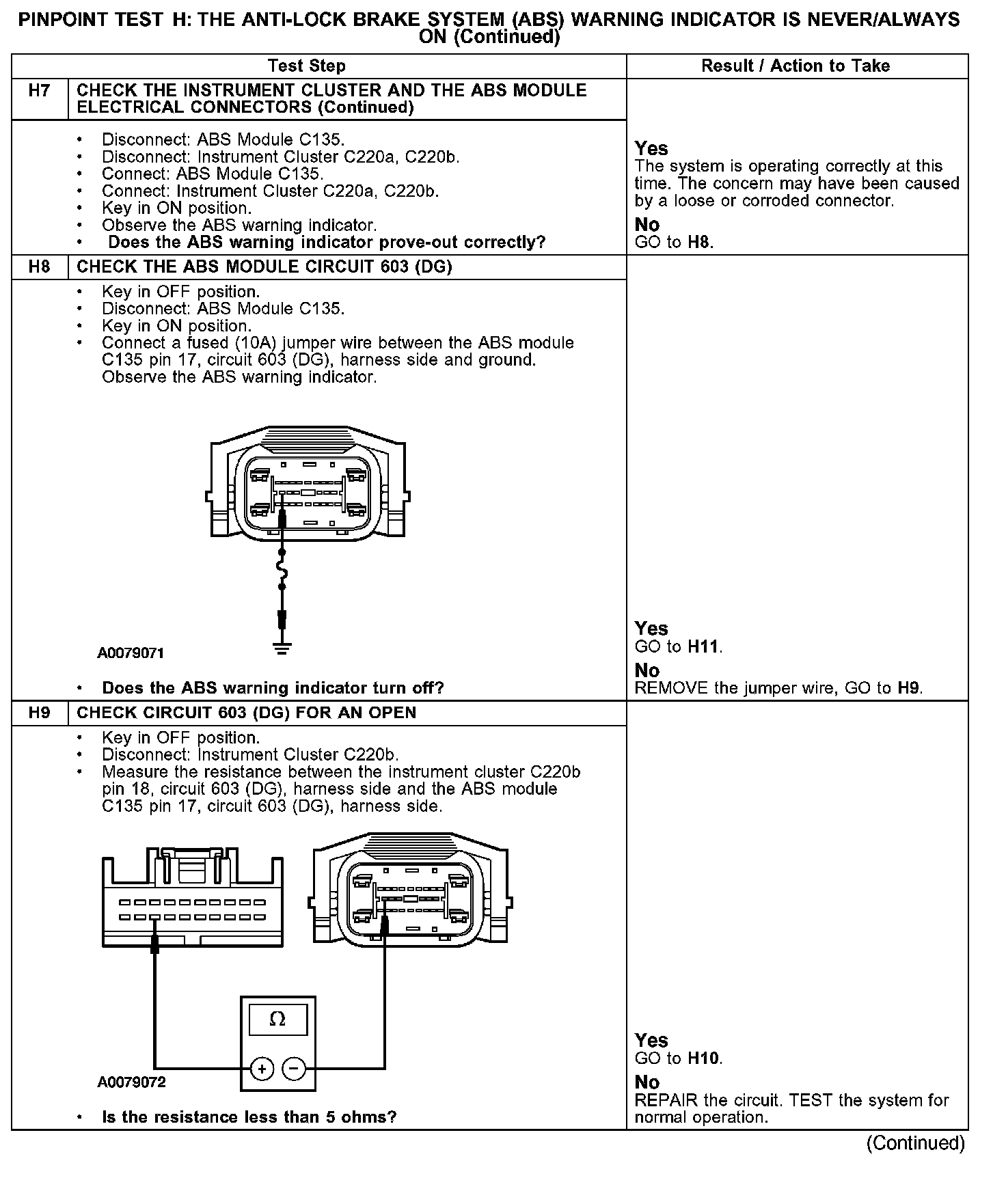

H7-H9:

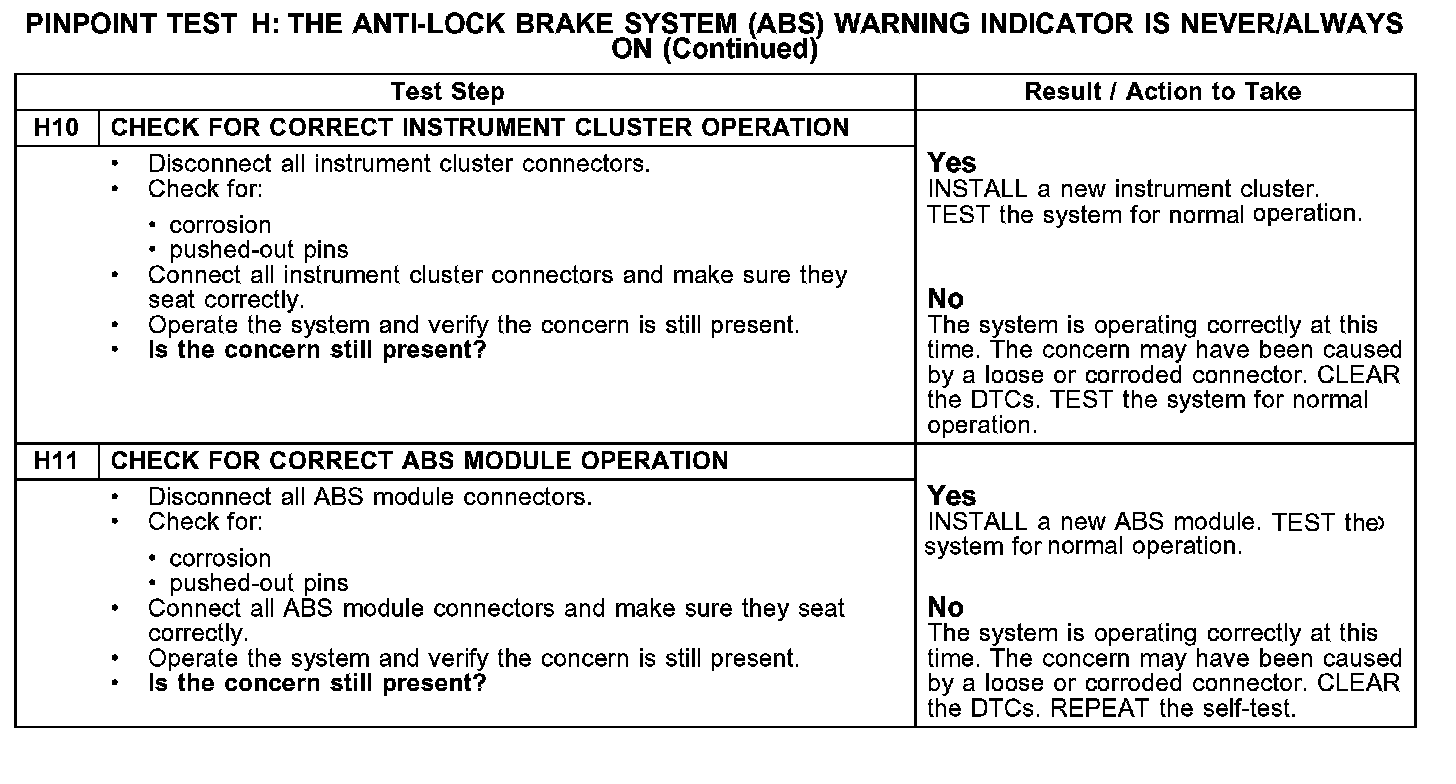

H10-H11:
