Test O: The Speed Control Indicator Is Never On
Test O: The Speed Control Indicator Is Never On

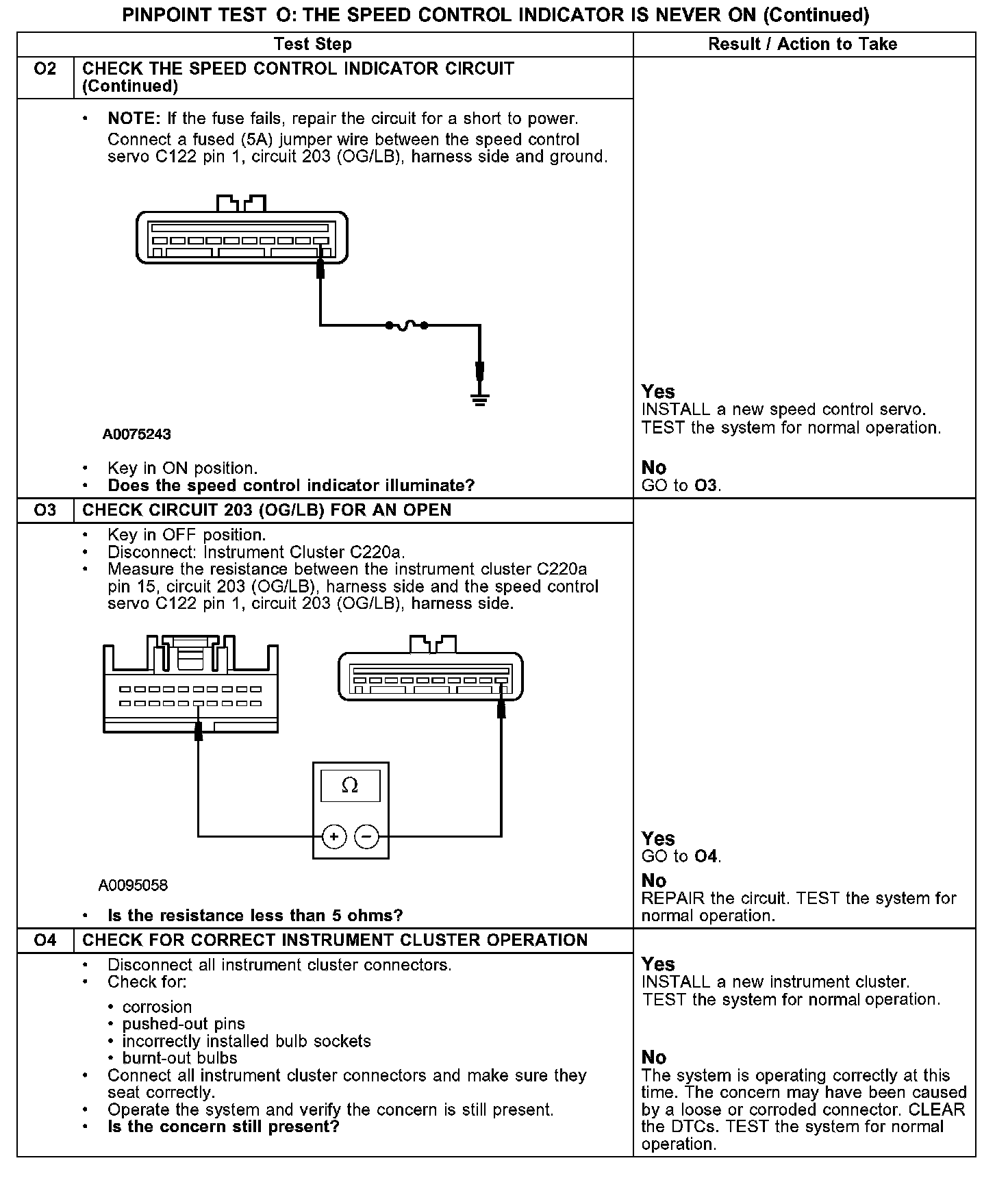

PINPOINT TEST O: THE SPEED CONTROL INDICATOR IS NEVER ON
O1-O2:
O2-O4:
