Test S: The 4X4 and 4X4 Low Indicator Is Never/Always On
Test S: The 4X4 and 4X4 Low Indicator Is Never/Always On
PINPOINT TEST S: THE 4X4 AND 4X4 LOW INDICATOR IS NEVER/ALWAYS ON

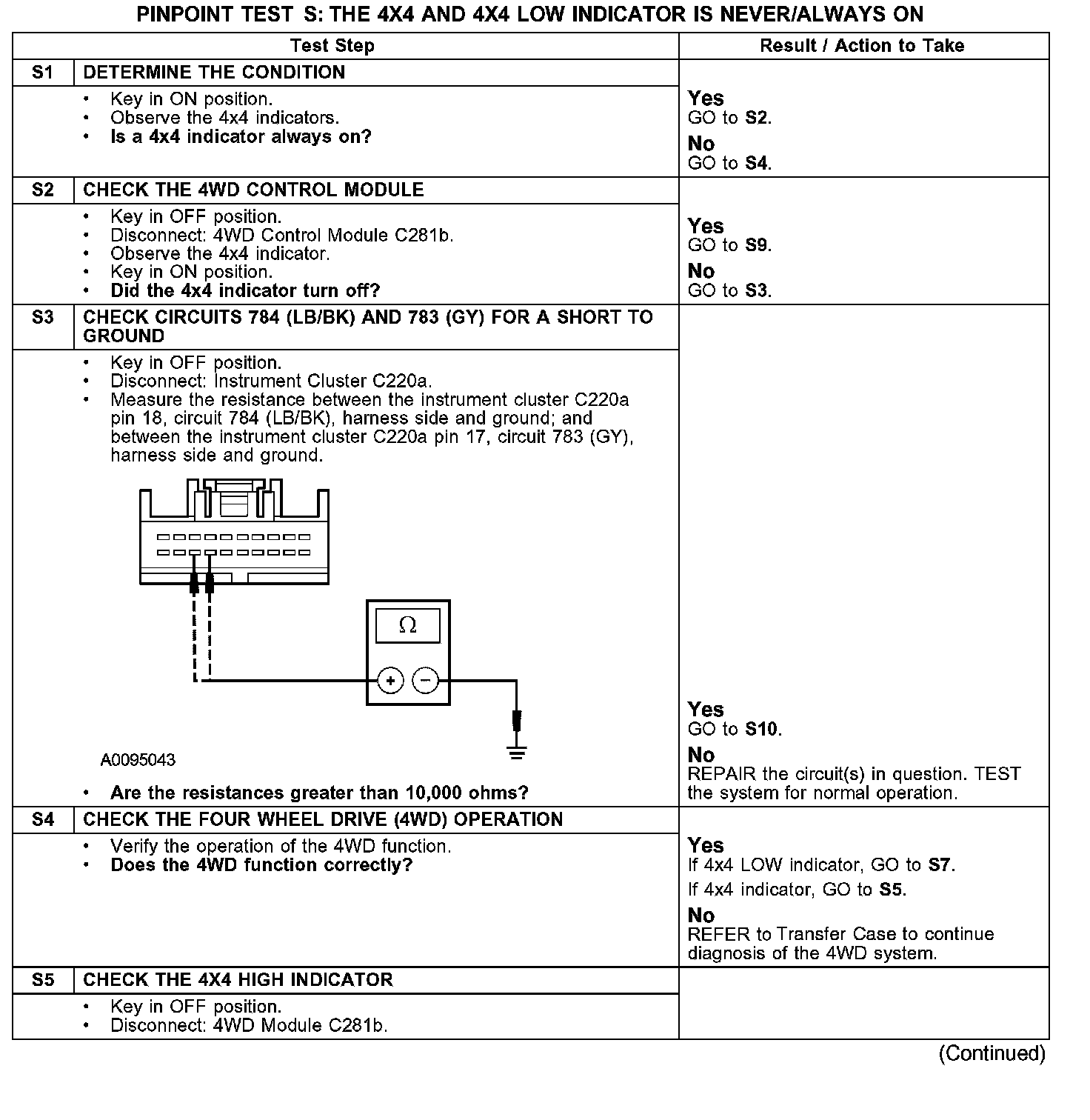

S1-S5:

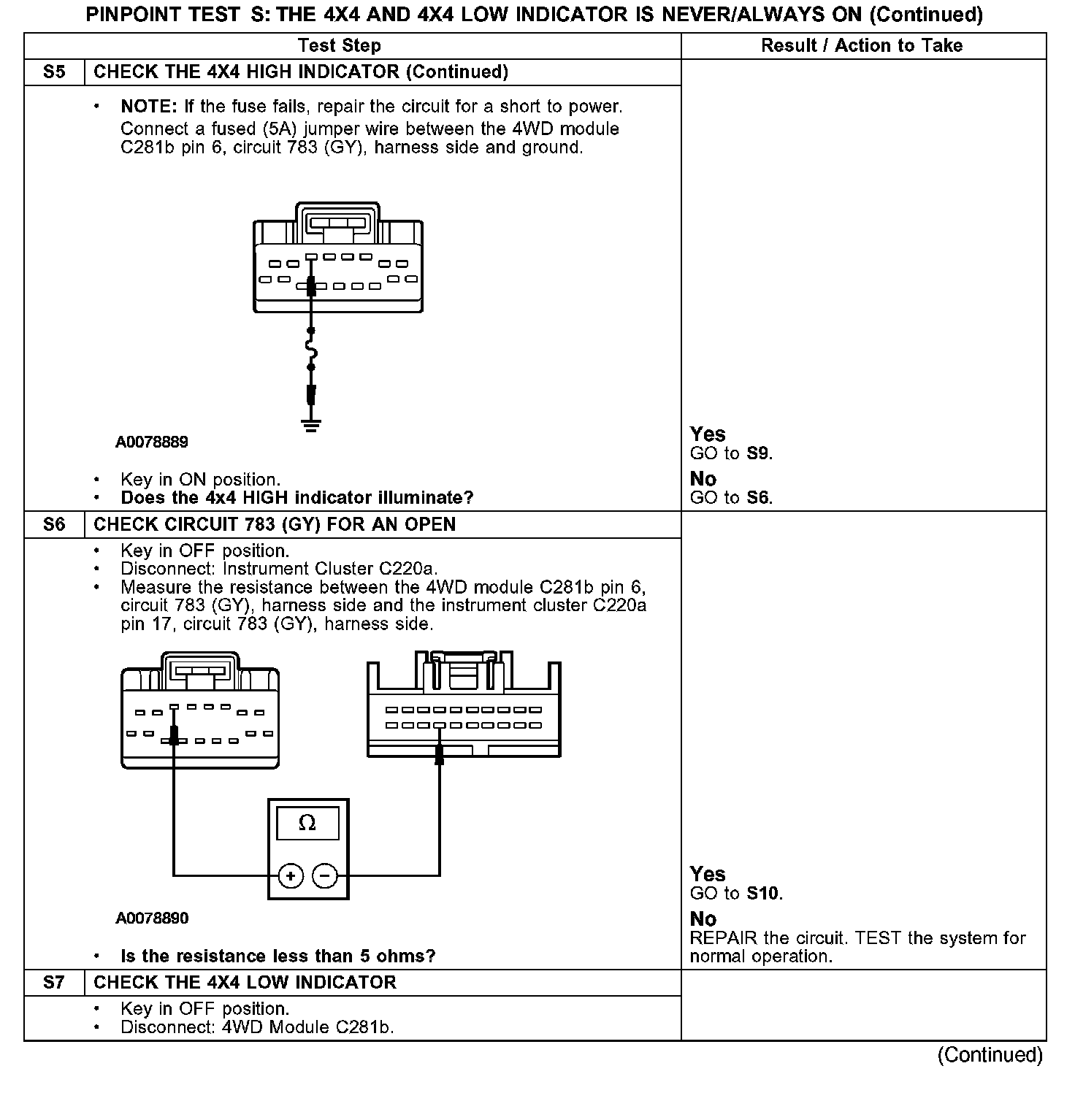

S5-S7:

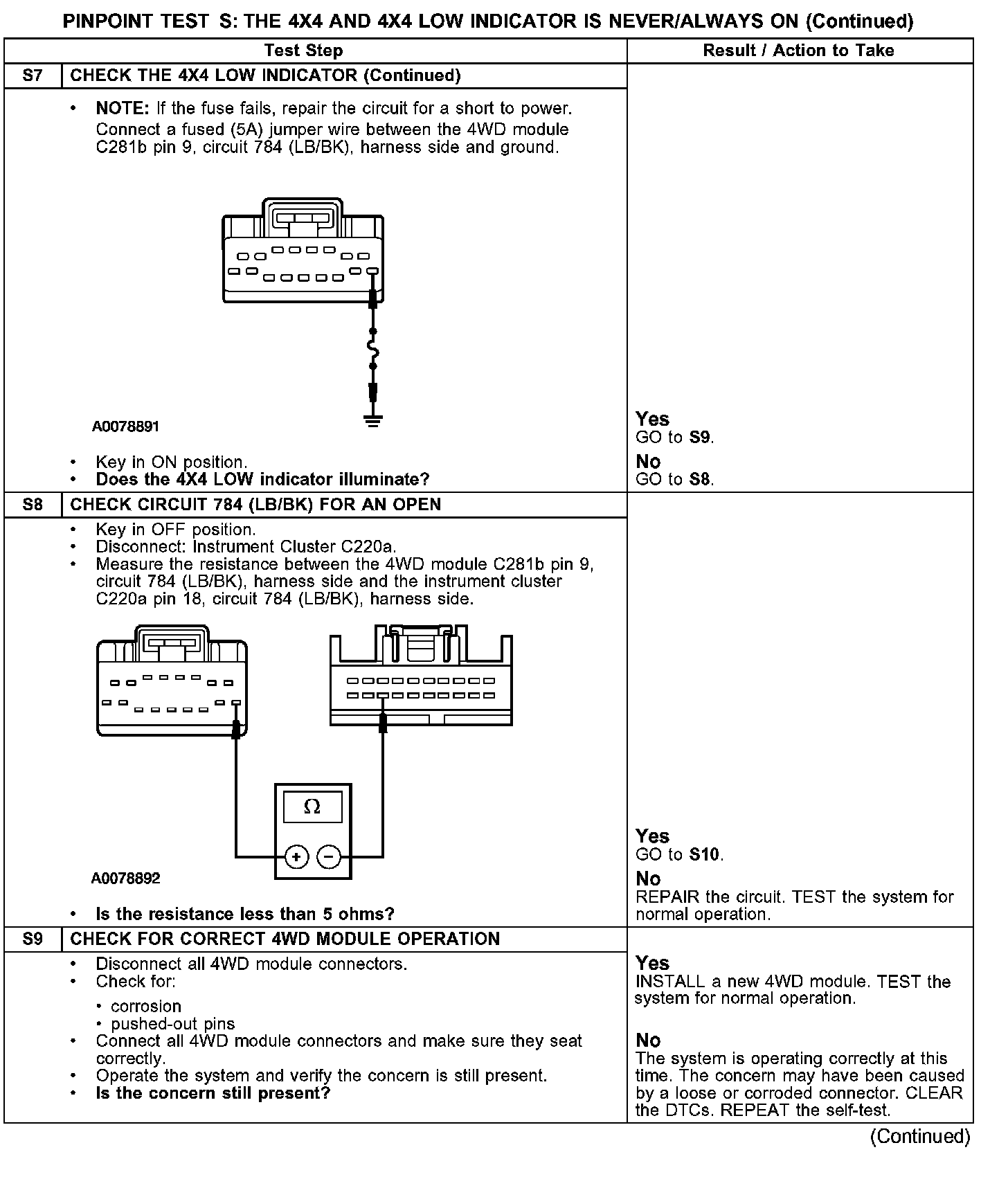

S7-S9:

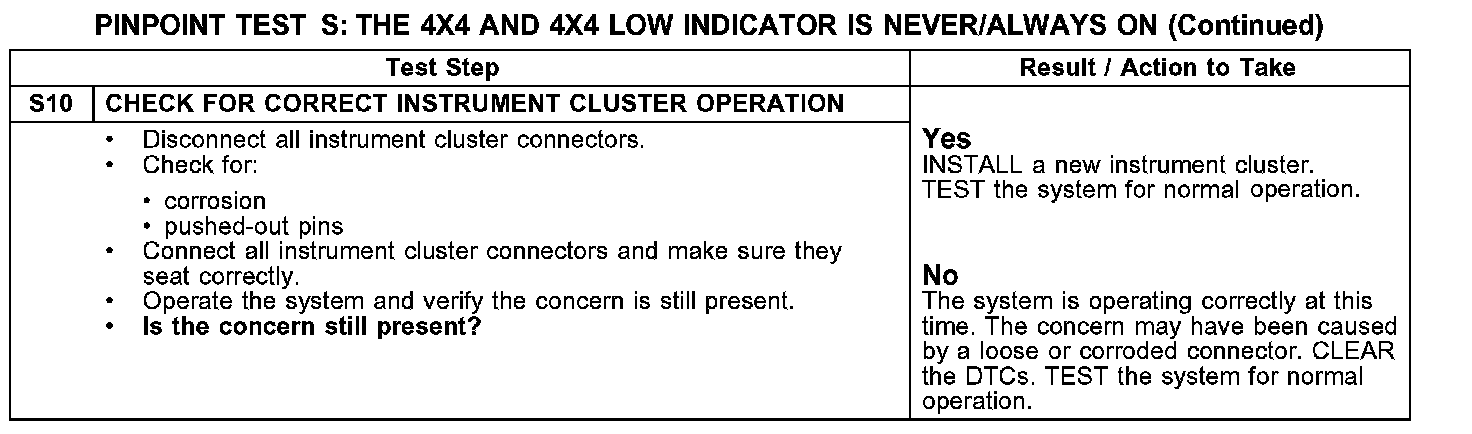

S10:
