Test T: The Air Bag Warning Indicator Is Never/Always On
Test T: The Air Bag Warning Indicator Is Never/Always On
PINPOINT TEST T: THE AIR BAG WARNING INDICATOR IS NEVER/ALWAYS ON

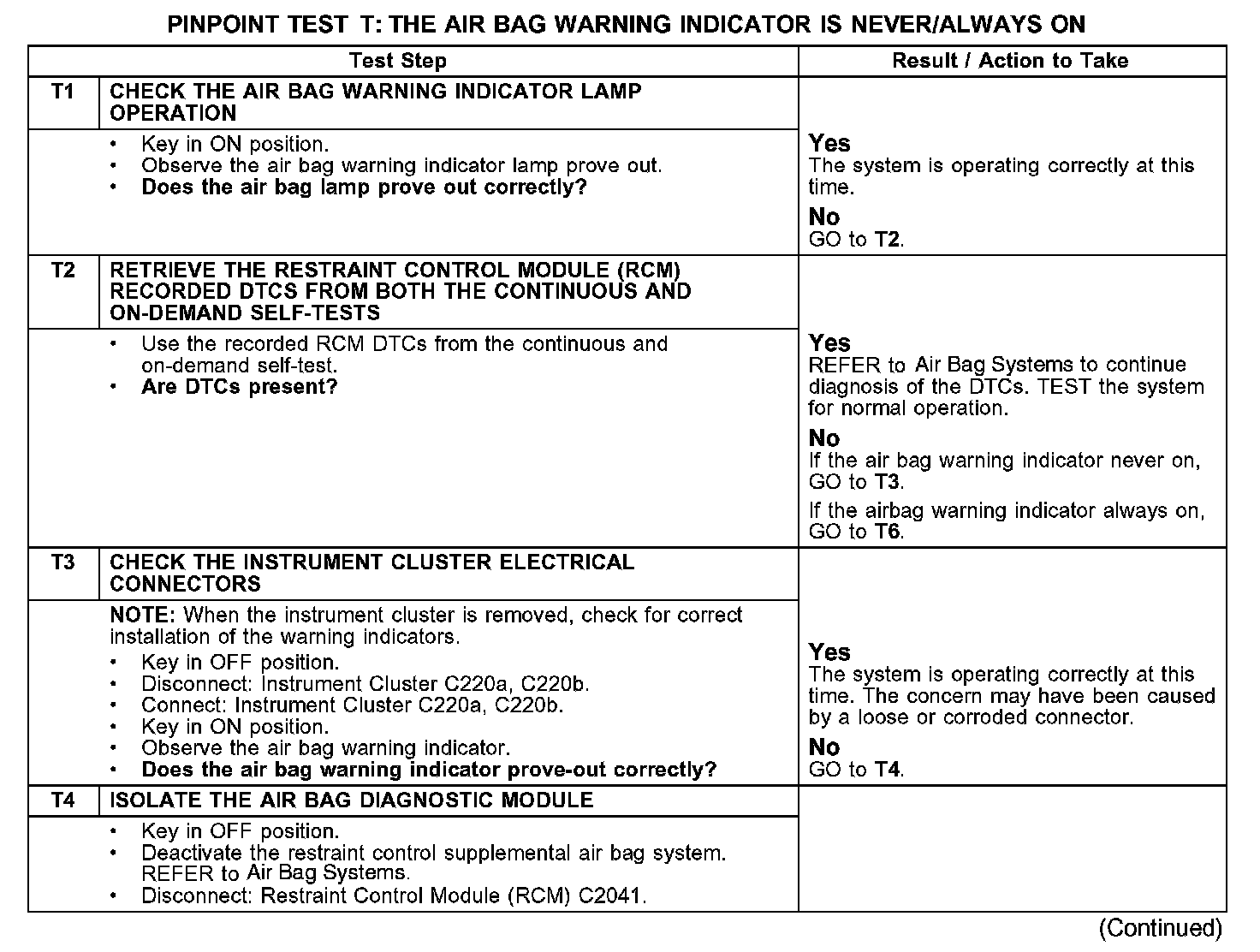

T1-T4:

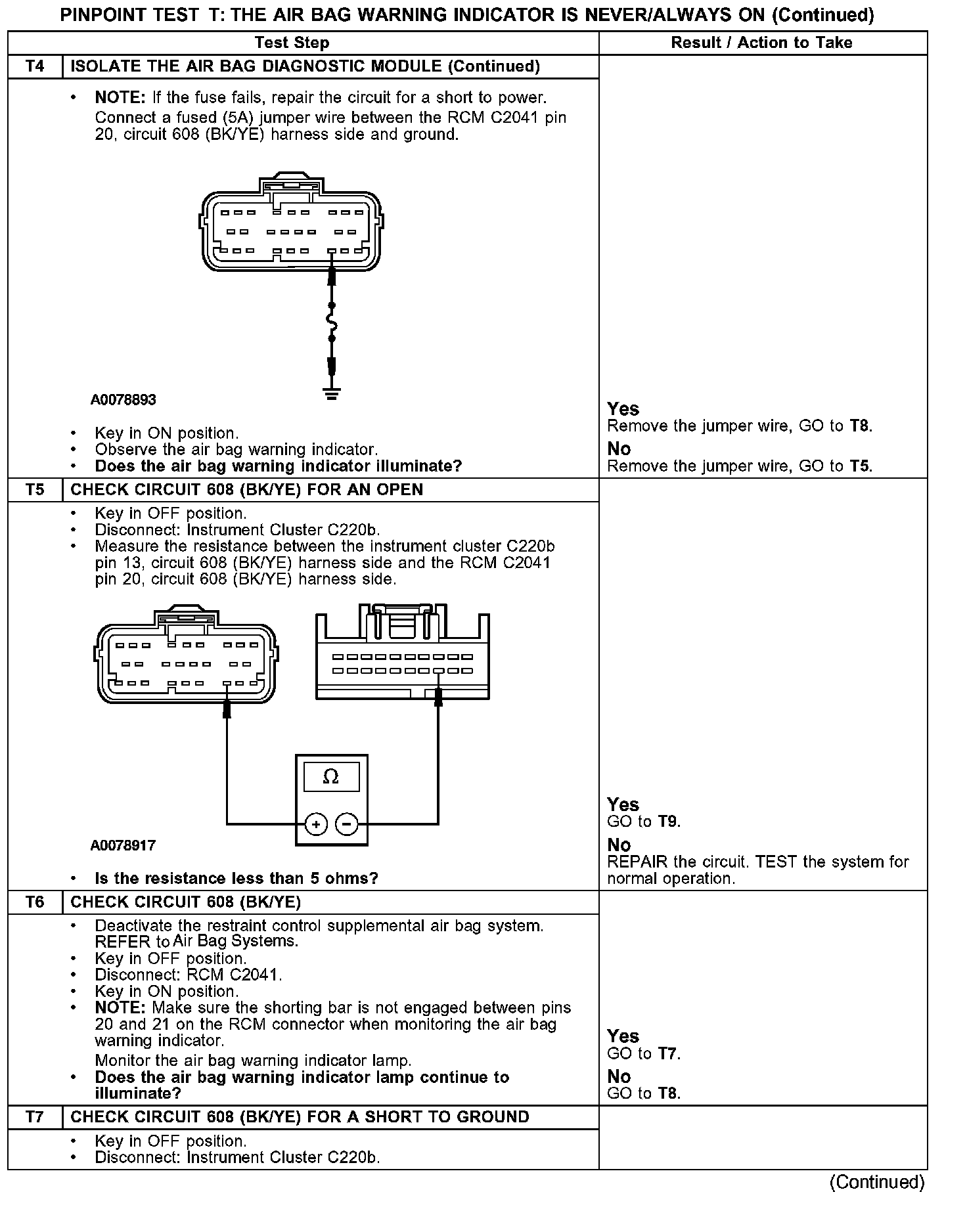

T4-T7:

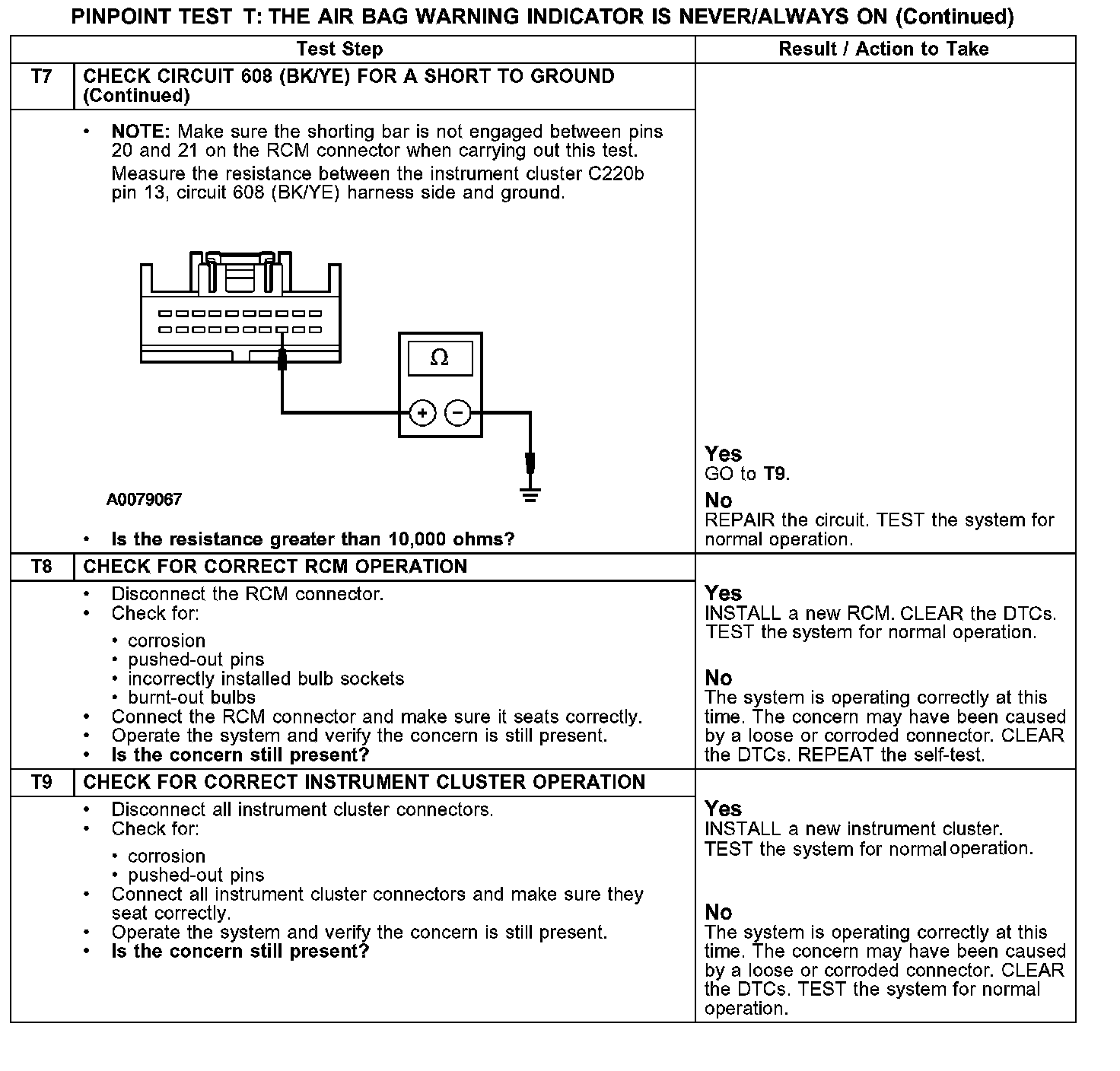

T7-T9:
