Test U: Incorrect Fuel Gauge Indication

PINPOINT TEST U: INCORRECT FUEL GAUGE INDICATION

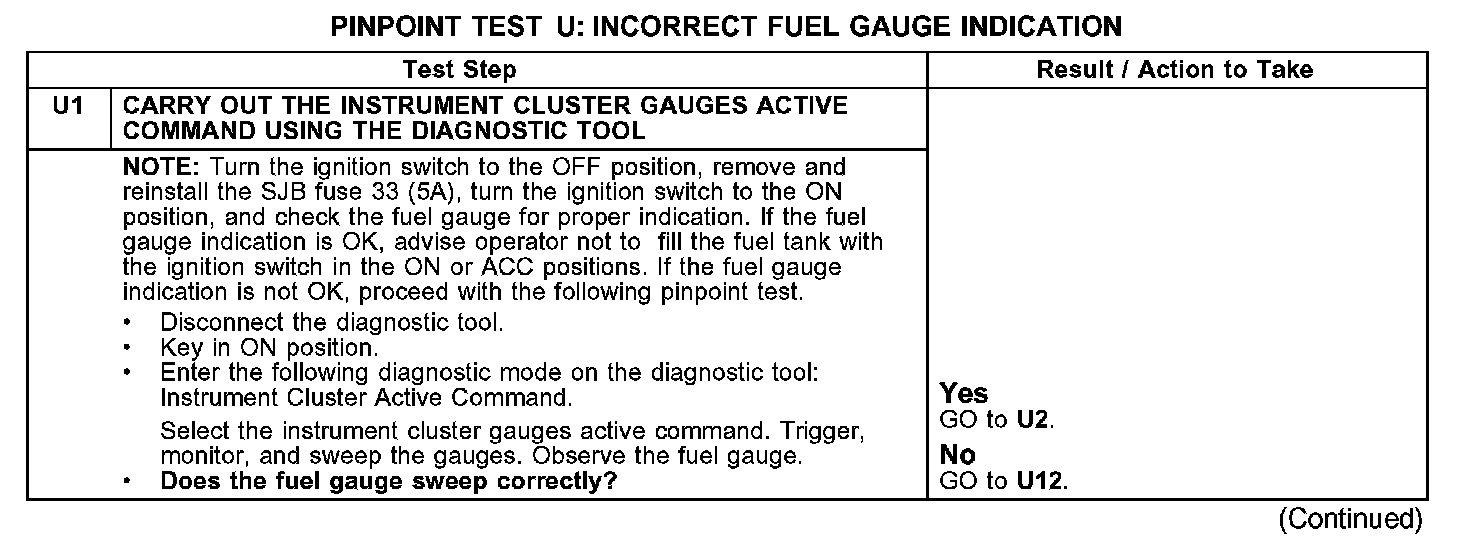

U1:

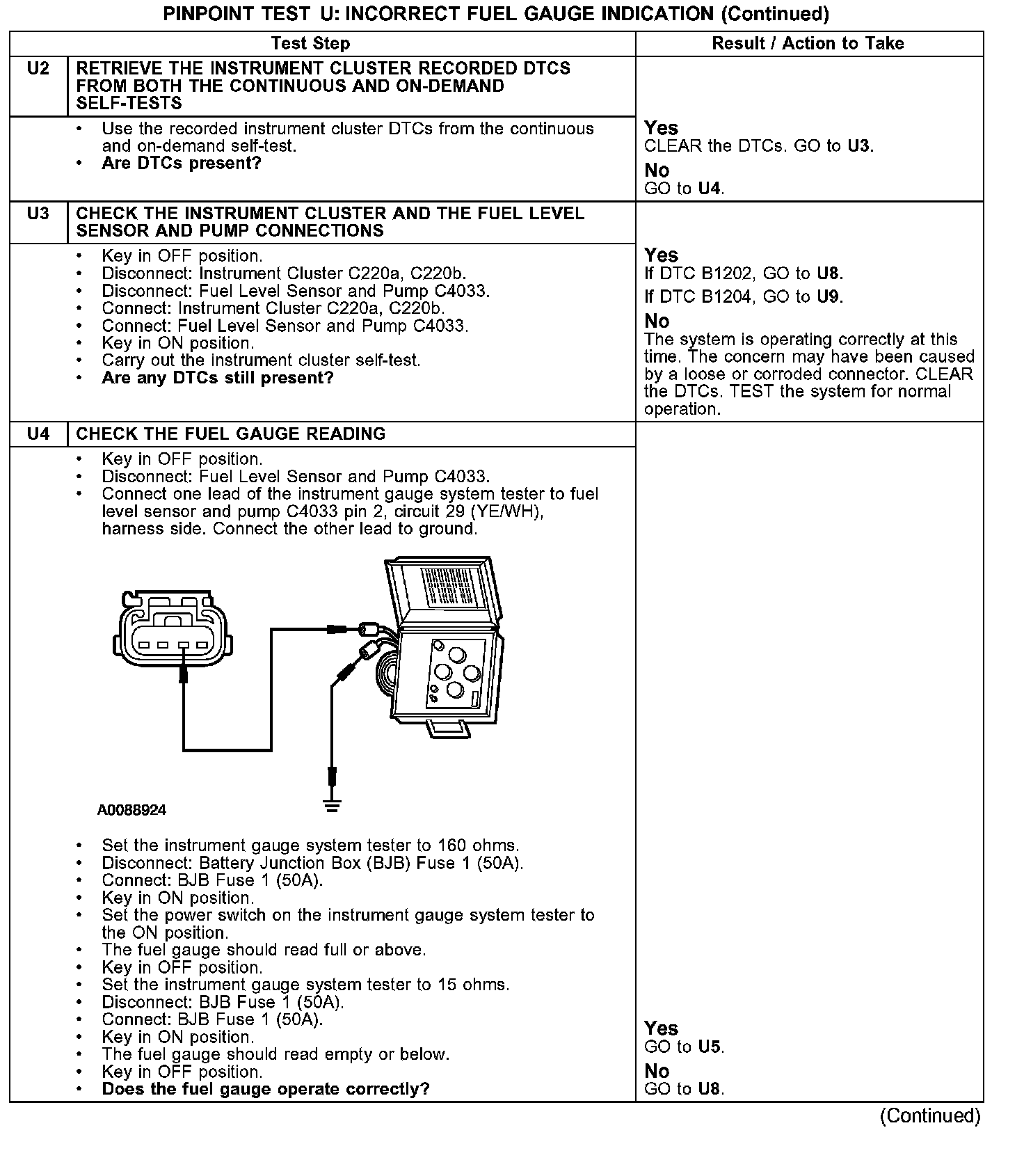

U2-U4:






U5-U9:

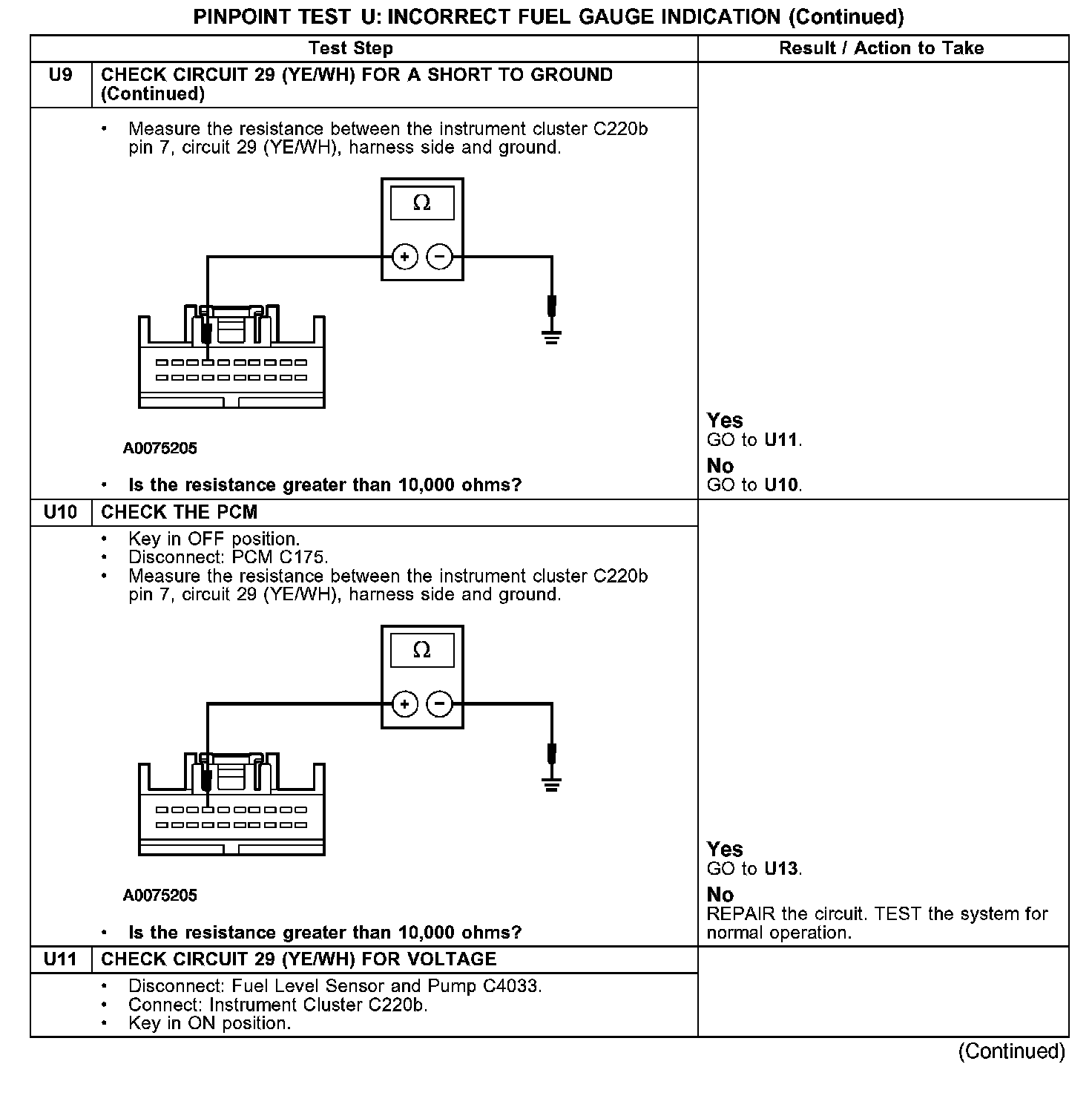

U9-U11:

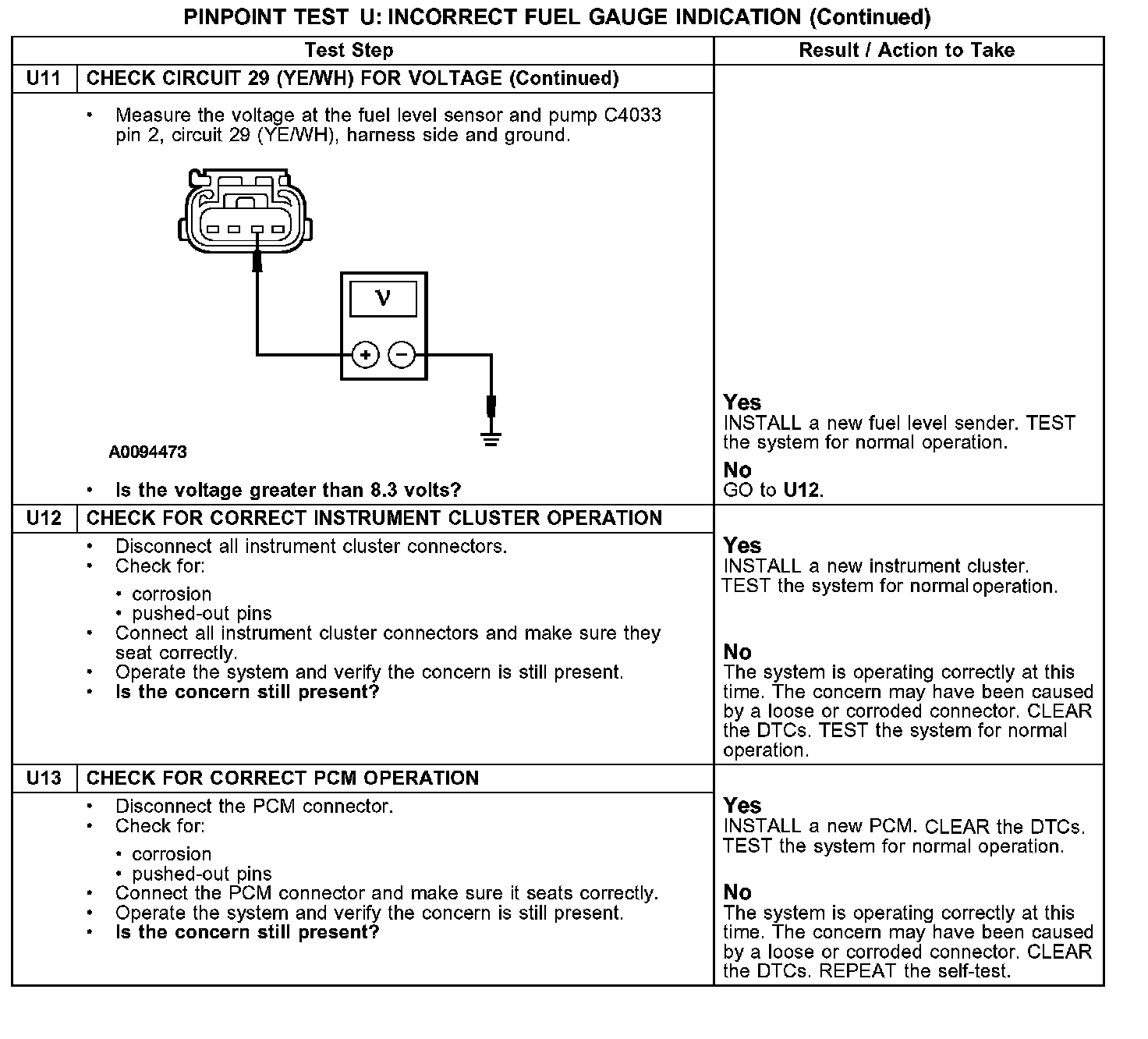

U11-U13:
